5mm Mini Ball Transfer Units

CONTACT US

Interested in this product, get in touch...

ENQUIRE NOW
🔍
11MI0515 ball transfer unit
type 13 and 15 mini ball transfer unit diagram

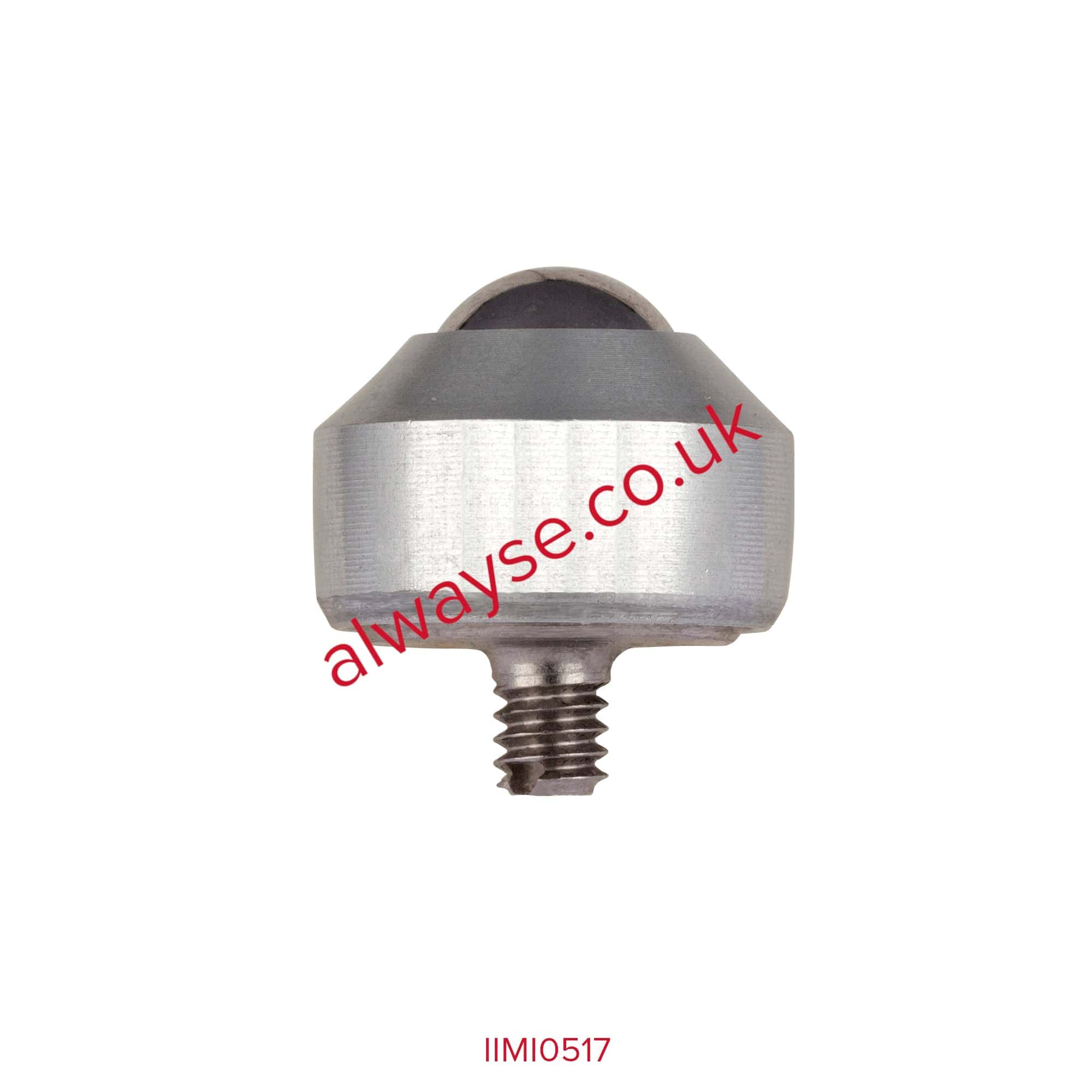

11MI0517 ball transfer unit
type 17 mini ball transfer unit diagram

Material Types

No two applications are the same hence Alwayse have developed a range of material types that can satisfy all applications from standard to custom requirements.

Find out more

LOAD CAPACITY

LOAD BALL UP
10

LOAD BALL DOWN
Contact Technical

ADD TO COMPARE
COMPARE

LOAD CAPACITY

LOAD BALL UP
5 - 10

LOAD BALL DOWN
Contact Technical

ADD TO COMPARE
COMPARE

Specifications

SPECIFICATION 11MI0513 11MI0515 11MI0517
Load Ball Diameter (mm) 4.8 4.8 4.8
Fixing Method Thread Thread Thread
Max Load (Ball Up) (kg) 10 10 5
Max Load (Ball Down) (kg) Contact Technical Contact Technical Contact Technical
Load Ball Material Carbon Chrome Stainless Steel Stainless Steel
Support Ball Material Stainless Steel Stainless Steel Stainless Steel
Unit Housing Finish Carbon Steel Stainless Steel Aluminium
C (offset) N/a N/a N/a
Support Dynamic Load N/a N/a N/a
Load To Fully Depress N/a N/a N/a
Flange Diameter (A) (mm) N/a N/a N/a
Inside Diameter (B) (mm) N/a N/a N/a
Clip Depth (C) (mm) N/a N/a N/a
Material Thickness (D) (mm) N/a N/a N/a
Product Weight (kg) 0.01 0.01 0.003
Dimension P - Thread Size M6 M6 M2
Dim. A - Max Diameter (mm) 13 13 8
Dim. B - Working ht. of Ball (mm) 9 9 6
Dim. D - Body Diameter (mm) N/a N/a N/a
Dim. E - Under Flange to Base (mm) N/a N/a N/a
Dim. F - Flange Thickness (mm) N/a N/a N/a
Dim. F - Base Thickness (mm) N/a N/a N/a
Dim. G - Fixing Holes PCD (mm) N/a N/a N/a
Dim. H - Fixing Hole Size (mm) N/a N/a N/a
Dim. J - Major Flange Size (mm) N/a N/a N/a
Dim. K - Minor Flange Size (mm) N/a N/a N/a
Dim. L - Overall Height (mm) 24 24 8.5
Dim. N - Length of Thread (mm) N/a N/a N/a
Dim. O - Seating Hole (mm) N/a N/a N/a
Dim. R - Radius Under Flange N/a N/a N/a
Dim. X - Across Flats N/a N/a N/a
🔍
type 13 and 15 mini ball transfer unit diagram
type 17 mini ball transfer unit diagram
