Alwayse Ball Transfer Unit 051924 Tuff Series

Bottom flange fixing solid machined body.

Features integral seal and dirt exit hole.

CONTACT US

Interested in this product, get in touch...

ENQUIRE NOW
🔍
2019-24-13 ball transfer unit with body

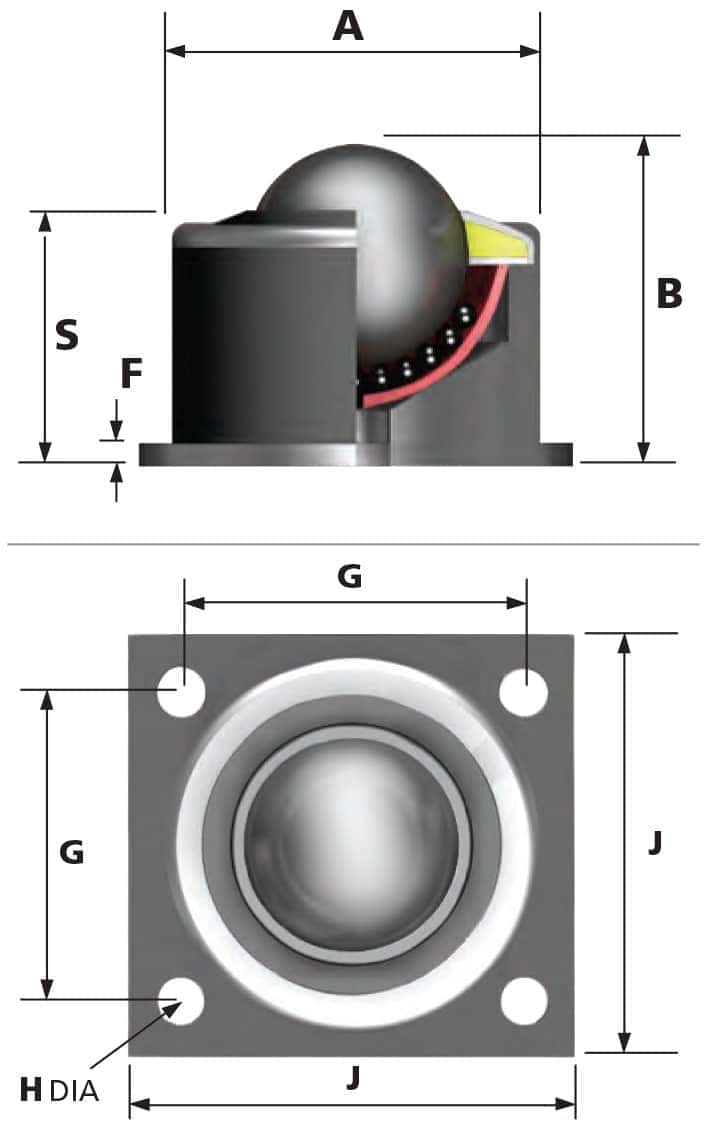

tuff_heavy_duty_24 side and top view diagrams

Material Types

No two applications are the same hence Alwayse have developed a range of material types that can satisfy all applications from standard to custom requirements.

Find out more

Specifications

SPECIFICATION 051924 05192416
Load Ball Diameter (mm) 12.7 12.7
Fixing Method Base Base
Max Load (Ball Up) (kg) 25 25
Load Ball Material Carbon Chrome Stainless Steel
Support Ball Material Carbon Chrome Stainless Steel
Unit Housing Finish Chemical Black Chemical Black
C (offset) N/a N/a
Support Dynamic Load N/a N/a
Load To Fully Depress N/a N/a
Flange Diameter (A) (mm) N/a N/a
Inside Diameter (B) (mm) N/a N/a
Clip Depth (C) (mm) N/a N/a
Material Thickness (D) (mm) N/a N/a
Product Weight (kg) 0.096 0.096
Dimension P - Thread Size N/a N/a
Dim. A - Max Diameter (mm) 20 20
Dim. B - Working ht. of Ball (mm) 25 25
Dim. D - Body Diameter (mm) N/a N/a
Dim. F - Flange Thickness (mm) N/a N/a
Dim. F - Base Thickness (mm) 6 6
Dim. G - Fixing Holes PCD (mm) 24 +/- 0.2 24 +/- 0.2
Dim. H - Fixing Hole Size (mm) 6.5 6.5
Dim. J - Major Flange Size (mm) 35 N/a
Dim. K - Minor Flange Size (mm) N/a N/a
Dim. L - Overall Height (mm) N/a N/a
Dim. O - Seating Hole (mm) N/a N/a
Dim. R - Radius Under Flange N/a N/a
Dim. X - Across Flats N/a N/a
🔍
