Alwayse Ball Transfer Unit 1500 Series

High load capacity unit with integral plastic knife edged seal to remove debris from load ball.

Has dirt exit hole.

CONTACT US

Interested in this product, get in touch...

ENQUIRE NOW
🔍
1500-15 ball transfer unit
1500 ball transfer unit dimensions

Material Types

No two applications are the same hence Alwayse have developed a range of material types that can satisfy all applications from standard to custom requirements.

Find out more

LOAD CAPACITY

LOAD BALL UP
100

LOAD BALL DOWN
50

ADD TO COMPARE
COMPARE

LOAD CAPACITY

LOAD BALL UP
25

LOAD BALL DOWN
10

ADD TO COMPARE
COMPARE

LOAD CAPACITY

LOAD BALL UP
100

LOAD BALL DOWN
50

ADD TO COMPARE
COMPARE

LOAD CAPACITY

LOAD BALL UP
100

LOAD BALL DOWN
50

ADD TO COMPARE
COMPARE

Specifications

SPECIFICATION 15001300 15001400 15001500 15001600
Load Ball Diameter (mm) 25.4 25.4 25.4 25.4
Fixing Method Hole Hole Hole Hole
Max Load (Ball Up) (kg) 100 25 100 100
Max Load (Ball Down) (kg) 50 10 50 50
Load Ball Material Carbon Chrome Nylon Stainless Steel Stainless Steel
Support Ball Material Carbon Chrome Stainless Steel Stainless Steel Stainless Steel
Unit Housing Finish Carbon Steel Carbon Steel Stainless Steel Carbon Steel
C (offset) N/a N/a N/a N/a
Support Dynamic Load N/a N/a N/a N/a
Load To Fully Depress N/a N/a N/a N/a
Flange Diameter (A) (mm) N/a N/a N/a N/a
Inside Diameter (B) (mm) N/a N/a N/a N/a
Clip Depth (C) (mm) N/a N/a N/a N/a
Material Thickness (D) (mm) N/a N/a N/a N/a
Product Weight (kg) 0.16 0.16 0.16 0.16
Dimension P - Thread Size N/a N/a N/a N/a
Dim. A - Max Diameter (mm) 39.5 39.5 39.5 39.5
Dim. B - Working ht. of Ball (mm) 35.8 35.8 35.8 35.8
Dim. D - Body Diameter (mm) N/a N/a N/a N/a
Dim. E - Under Flange to Base (mm) N/a N/a N/a N/a
Dim. F - Flange Thickness (mm) N/a N/a N/a N/a
Dim. F - Base Thickness (mm) N/a N/a N/a N/a
Dim. G - Fixing Holes PCD (mm) N/a N/a N/a N/a
Dim. H - Fixing Hole Size (mm) N/a N/a N/a N/a
Dim. J - Major Flange Size (mm) N/a N/a N/a N/a
Dim. K - Minor Flange Size (mm) N/a N/a N/a N/a
Dim. L - Overall Height (mm) N/a N/a N/a N/a
Dim. N - Length of Thread (mm) N/a N/a N/a N/a
Dim. O - Seating Hole (mm) N/a N/a N/a N/a
Dim. R - Radius Under Flange N/a N/a N/a N/a
Dim. X - Across Flats N/a N/a N/a N/a
🔍

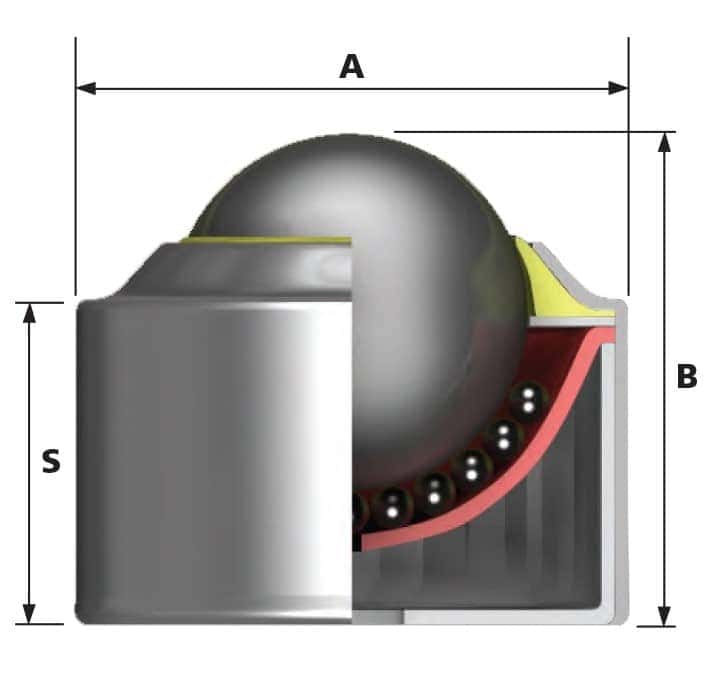

1500 ball transfer unit dimensions
