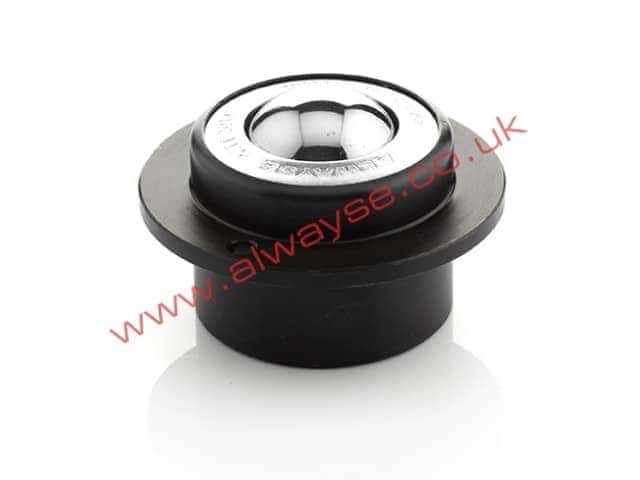

Alwayse Ball Transfer Unit 301922 Tuff Series

Flange fixing Ball Transfer Unit with solid machined body.

Features integral seal and dirt exit hole.

CONTACT US

Interested in this product, get in touch...

Material Types

No two applications are the same hence Alwayse have developed a range of material types that can satisfy all applications from standard to custom requirements.

Find out more

LOAD CAPACITY

LOAD BALL UP
50

LOAD BALL DOWN
n/a

LOAD CAPACITY

LOAD BALL UP
50

LOAD BALL DOWN
n/a

Specifications

SPECIFICATION 301922 30192216
Load Ball Diameter (mm) 19 19
Fixing Method Flange Flange
Max Load (Ball Up) (kg) 50 50
Max Load (Ball Down) (kg) N/a N/a
Load Ball Material Carbon Chrome Stainless Steel
Support Ball Material Carbon Chrome Stainless Steel
Unit Housing Finish Chemical Black Chemical Black
C (offset) N/a N/a
Support Dynamic Load N/a N/a
Load To Fully Depress N/a N/a
Flange Diameter (A) (mm) N/a N/a
Inside Diameter (B) (mm) N/a N/a
Clip Depth (C) (mm) N/a N/a
Material Thickness (D) (mm) N/a N/a
Product Weight (kg) 0.168 0.168
Dimension P - Thread Size N/a N/a

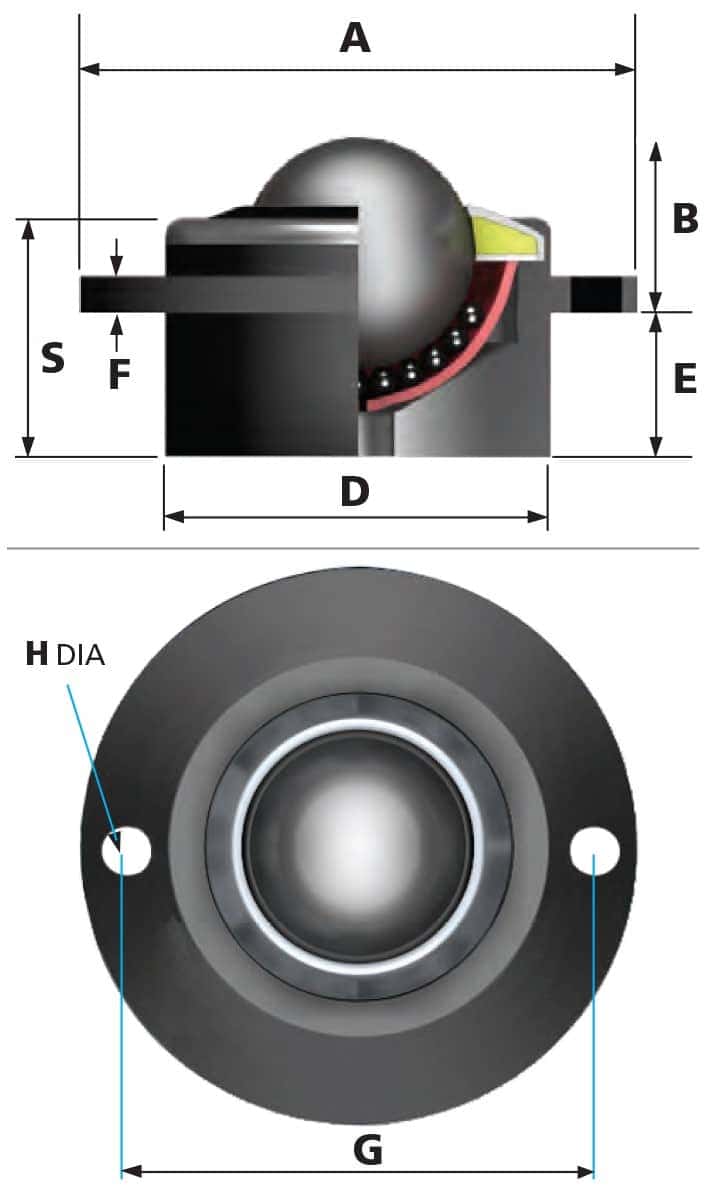

Dim. A - Max Diameter (mm) 50 50
Dim. B - Working ht. of Ball (mm) 14 14
Dim. D - Body Diameter (mm) 30 30
Dim. E - Under Flange to Base (mm) 16 16
Dim. F - Flange Thickness (mm) 5 5
Dim. F - Base Thickness (mm) N/a N/a
Dim. G - Fixing Holes PCD (mm) 40 +/- 0.2 40 +/- 0.2
Dim. H - Fixing Hole Size (mm) 5 5
Dim. J - Major Flange Size (mm) N/a N/a
Dim. K - Minor Flange Size (mm) N/a N/a
Dim. L - Overall Height (mm) N/a N/a
Dim. N - Length of Thread (mm) N/a N/a
Dim. O - Seating Hole (mm) N/a N/a
Dim. R - Radius Under Flange N/a N/a
Dim. X - Across Flats N/a N/a
