Alwayse Ball Transfer Unit Base Fixing Unit 1503

High load capacity high profile unit with 2 drill hole fixings.

Dirt exit hole standard.

Features integral plastic knife edge seal to minimise debris ingress.

CONTACT US

Interested in this product, get in touch...

ENQUIRE NOW
🔍
1503-15 ball transfer unit with 2 round fixing holes on the base plate

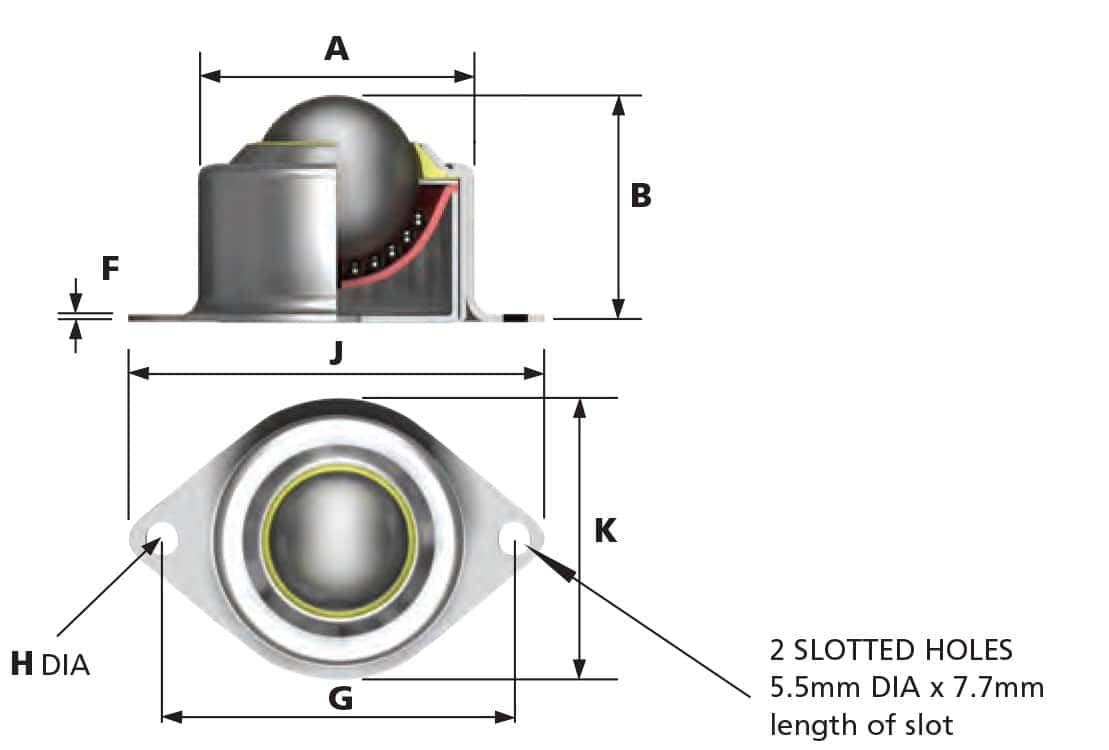

1503 ball transfer unit side and top dimensions

Material Types

No two applications are the same hence Alwayse have developed a range of material types that can satisfy all applications from standard to custom requirements.

Find out more

LOAD CAPACITY

LOAD BALL UP
100

LOAD BALL DOWN
50

ADD TO COMPARE
COMPARE

LOAD CAPACITY

LOAD BALL UP
25

LOAD BALL DOWN
10

ADD TO COMPARE
COMPARE

LOAD CAPACITY

LOAD BALL UP
100

LOAD BALL DOWN
50

ADD TO COMPARE
COMPARE

LOAD CAPACITY

LOAD BALL UP
100

LOAD BALL DOWN
50

ADD TO COMPARE
COMPARE

Specifications

SPECIFICATION 15031300 15031400 15031500 15031600
Load Ball Diameter (mm) 25.4 25.4 25.4 25.4
Fixing Method Base Base Base Base
Max Load (Ball Up) (kg) 100 25 100 100
Max Load (Ball Down) (kg) 50 10 50 50
Load Ball Material Carbon Chrome Nylon Stainless Steel Stainless Steel
Support Ball Material Carbon Chrome Stainless Steel Stainless Steel Stainless Steel
Unit Housing Finish Carbon Steel Carbon Steel Stainless Steel Carbon Steel
C (offset) N/a N/a N/a N/a
Support Dynamic Load N/a N/a N/a N/a
Load To Fully Depress N/a N/a N/a N/a
Flange Diameter (A) (mm) N/a N/a N/a N/a
Inside Diameter (B) (mm) N/a N/a N/a N/a
Clip Depth (C) (mm) N/a N/a N/a N/a
Material Thickness (D) (mm) N/a N/a N/a N/a
Product Weight (kg) 0.2 0.2 0.2 0.2
Dimension P - Thread Size N/a N/a N/a N/a
Dim. A - Max Diameter (mm) 42 42 42 42
Dim. B - Working ht. of Ball (mm) 35.8 35.8 35.8 35.8
Dim. D - Body Diameter (mm) N/a N/a N/a N/a
Dim. E - Under Flange to Base (mm) N/a N/a N/a N/a
Dim. F - Flange Thickness (mm) N/a N/a N/a N/a
Dim. F - Base Thickness (mm) 1.75 1.75 1.75 1.75
Dim. G - Fixing Holes PCD (mm) 60.3 / 55.9 60.3 / 55.9 60.3 / 55.9 60.3 / 55.9
Dim. H - Fixing Hole Size (mm) 7.7 / 5.5 7.7 / 5.5 7.7 / 5.5 7.7 / 5.5
Dim. J - Major Flange Size (mm) 69 69 69 69
Dim. K - Minor Flange Size (mm) 51 51 51 51
Dim. L - Overall Height (mm) N/a N/a N/a N/a
Dim. N - Length of Thread (mm) N/a N/a N/a N/a
Dim. O - Seating Hole (mm) N/a N/a N/a N/a
Dim. R - Radius Under Flange N/a N/a N/a N/a
Dim. X - Across Flats N/a N/a N/a N/a
🔍
1503 ball transfer unit side and top dimensions
