Alwayse Ball Transfer Unit Base Fixing Unit 3005

Heavy duty fixing high profile unit with 4 drill hole fixings.

Can be specified with a dirt exit hole.

Available in a number of materials

CONTACT US

Interested in this product, get in touch...

ENQUIRE NOW
🔍
3005-16 ball transfer unit with 4 fixing holes
3005 side and top view diagrams

Material Types

No two applications are the same hence Alwayse have developed a range of material types that can satisfy all applications from standard to custom requirements.

Find out more

LOAD CAPACITY

LOAD BALL UP
25

LOAD BALL DOWN
10

ADD TO COMPARE
COMPARE

LOAD CAPACITY

LOAD BALL UP
20

LOAD BALL DOWN
10

ADD TO COMPARE
COMPARE

LOAD CAPACITY

LOAD BALL UP
25

LOAD BALL DOWN
10

ADD TO COMPARE
COMPARE

Specifications

SPECIFICATION 30051300 30051400 30051600
Load Ball Diameter (mm) 19 19 19
Fixing Method Base Base Base
Max Load (Ball Up) (kg) 25 20 25
Max Load (Ball Down) (kg) 10 10 10
Load Ball Material Carbon Chrome Nylon Stainless Steel
Support Ball Material Carbon Chrome Stainless Steel Stainless Steel
Unit Housing Finish Carbon Steel Carbon Steel Carbon Steel
C (offset) N/a N/a N/a
Support Dynamic Load N/a N/a N/a
Load To Fully Depress N/a N/a N/a
Flange Diameter (A) (mm) N/a N/a N/a
Inside Diameter (B) (mm) N/a N/a N/a
Clip Depth (C) (mm) N/a N/a N/a
Material Thickness (D) (mm) N/a N/a N/a
Product Weight (kg) 0.1 0.1 0.1
Dimension P - Thread Size N/a N/a N/a
Dim. A - Max Diameter (mm) 32.1 32.1 32.1
Dim. B - Working ht. of Ball (mm) 32.5 32.5 32.5
Dim. D - Body Diameter (mm) N/a N/a N/a
Dim. E - Under Flange to Base (mm) N/a N/a N/a
Dim. F - Flange Thickness (mm) N/a N/a N/a
Dim. F - Base Thickness (mm) 2 2 2
Dim. G - Fixing Holes PCD (mm) 49.2 +/_ 0.2 49.2 +/_ 0.2 49.2 +/_ 0.2
Dim. H - Fixing Hole Size (mm) 6.3 6.3 6.3
Dim. J - Major Flange Size (mm) 65 65 65
Dim. K - Minor Flange Size (mm) 38 38 38
Dim. L - Overall Height (mm) N/a N/a N/a
Dim. N - Length of Thread (mm) N/a N/a N/a
Dim. O - Seating Hole (mm) N/a N/a N/a
Dim. R - Radius Under Flange N/a N/a N/a
Dim. X - Across Flats N/a N/a N/a
🔍

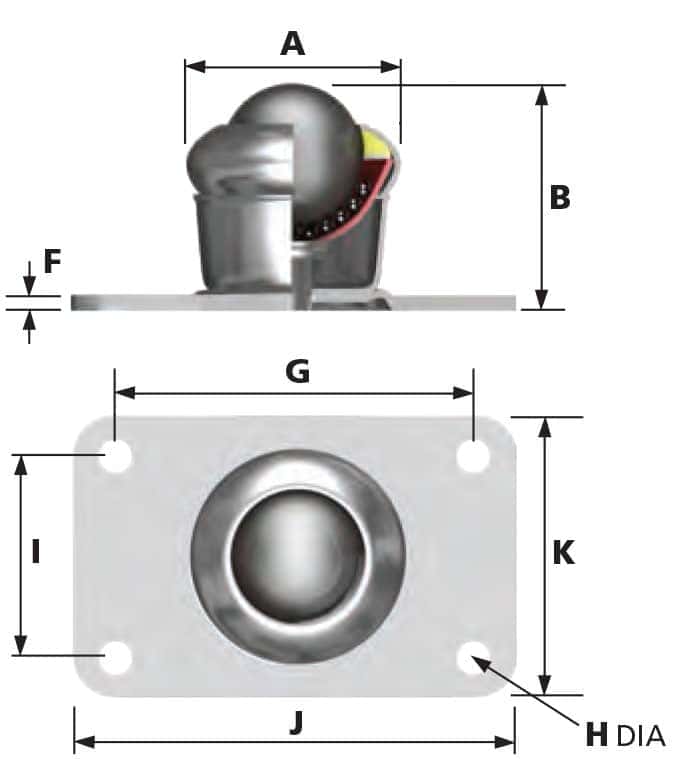

3005 side and top view diagrams
