Alwayse Ball Transfer Unit Bolt Fixing 1701

Drill hole nut and bolt fixed unit with integral plastic scraper seal for the removal of debris.

Maximum tightening torque is 15Nm.

CONTACT US

Interested in this product, get in touch...

ENQUIRE NOW
🔍

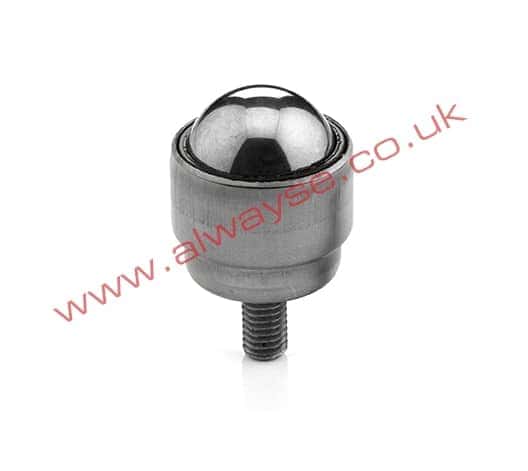

1701-15-23 ball transfer unit with external thread

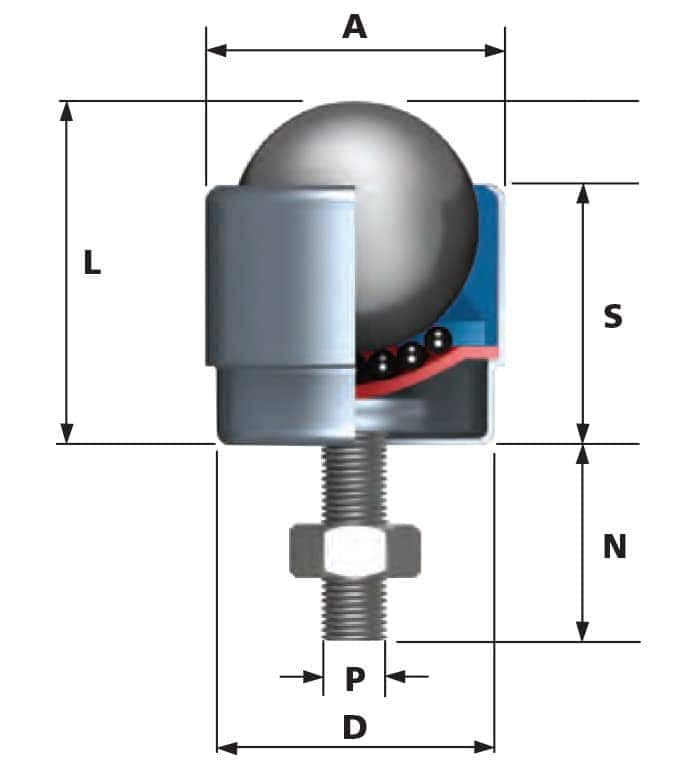

1701 ball transfer unit side view diagram

Material Types

No two applications are the same hence Alwayse have developed a range of material types that can satisfy all applications from standard to custom requirements.

Find out more

LOAD CAPACITY

LOAD BALL UP
50

LOAD BALL DOWN
25

ADD TO COMPARE
COMPARE

LOAD CAPACITY

LOAD BALL UP
20

LOAD BALL DOWN
10

ADD TO COMPARE
COMPARE

LOAD CAPACITY

LOAD BALL UP
50

LOAD BALL DOWN
25

ADD TO COMPARE
COMPARE

LOAD CAPACITY

LOAD BALL UP
50

LOAD BALL DOWN
25

ADD TO COMPARE
COMPARE

Specifications

SPECIFICATION 17011318 17011328 17011418 17011428 17011518 17011528 17011618 17011628
Load Ball Diameter (mm) 25.4 25.4 25.4 25.4 25.4 25.4 25.4 25.4
Fixing Method Thread Thread Thread Thread Thread Thread Thread Thread
Max Load (Ball Up) (kg) 50 50 20 20 50 50 50 50
Max Load (Ball Down) (kg) 25 25 10 10 25 25 25 25
Load Ball Material Carbon Chrome Carbon Chrome Nylon Nylon Stainless Steel Stainless Steel Stainless Steel Stainless Steel
Support Ball Material Carbon Chrome Carbon Chrome Stainless Steel Stainless Steel Stainless Steel Stainless Steel Stainless Steel Stainless Steel
Unit Housing Finish Carbon Steel Carbon Steel Carbon Steel Carbon Steel Stainless Steel Stainless Steel Carbon Steel Carbon Steel
C (offset) N/a N/a N/a N/a N/a N/a N/a N/a
Support Dynamic Load N/a N/a N/a N/a N/a N/a N/a N/a
Load To Fully Depress N/a N/a N/a N/a N/a N/a N/a N/a
Flange Diameter (A) (mm) N/a N/a N/a N/a N/a N/a N/a N/a
Inside Diameter (B) (mm) N/a N/a N/a N/a N/a N/a N/a N/a
Clip Depth (C) (mm) N/a N/a N/a N/a N/a N/a N/a N/a
Material Thickness (D) (mm) N/a N/a N/a N/a N/a N/a N/a N/a
Product Weight (kg) 0.12 0.12 0.12 0.12 0.12 0.12 0.12 0.12
Dimension P - Thread Size M8 M8 M8 M8 M8 M8 M8 M8
Dim. A - Max Diameter (mm) 30.5 30.5 30.5 30.5 30.5 30.5 30.5 30.5
Dim. B - Working ht. of Ball (mm) N/a N/a N/a N/a N/a N/a N/a N/a
Dim. D - Body Diameter (mm) 26.6 26.6 26.6 26.6 26.6 26.6 26.6 26.6
Dim. E - Under Flange to Base (mm) N/a N/a N/a N/a N/a N/a N/a N/a
Dim. F - Flange Thickness (mm) N/a N/a N/a N/a N/a N/a N/a N/a
Dim. F - Base Thickness (mm) N/a N/a N/a N/a N/a N/a N/a N/a
Dim. G - Fixing Holes PCD (mm) N/a N/a N/a N/a N/a N/a N/a N/a
Dim. H - Fixing Hole Size (mm) N/a N/a N/a N/a N/a N/a N/a N/a
Dim. J - Major Flange Size (mm) N/a N/a N/a N/a N/a N/a N/a N/a
Dim. K - Minor Flange Size (mm) N/a N/a N/a N/a N/a N/a N/a N/a
Dim. L - Overall Height (mm) 33.5 33.5 33.5 33.5 33.5 33.5 33.5 33.5
Dim. N - Length of Thread (mm) 18 / 28 18 / 28 18 / 28 18 / 28 18 / 28 18 / 28 18 / 28 18 / 28
Dim. O - Seating Hole (mm) N/a N/a N/a N/a N/a N/a N/a N/a
Dim. R - Radius Under Flange N/a N/a N/a N/a N/a N/a N/a N/a
Dim. X - Across Flats N/a N/a N/a N/a N/a N/a N/a N/a
🔍
1701 ball transfer unit side view diagram
