Alwayse Ball Transfer Unit DIE LIFTERS

High load capacity units fitted with a tolerance ring for interference fixing.

Greater shock loading protection.

Type 13 and 16 have a chemical black finish.

CONTACT US

Interested in this product, get in touch...

ENQUIRE NOW
🔍
dl-50 alwayse ball transfer unit

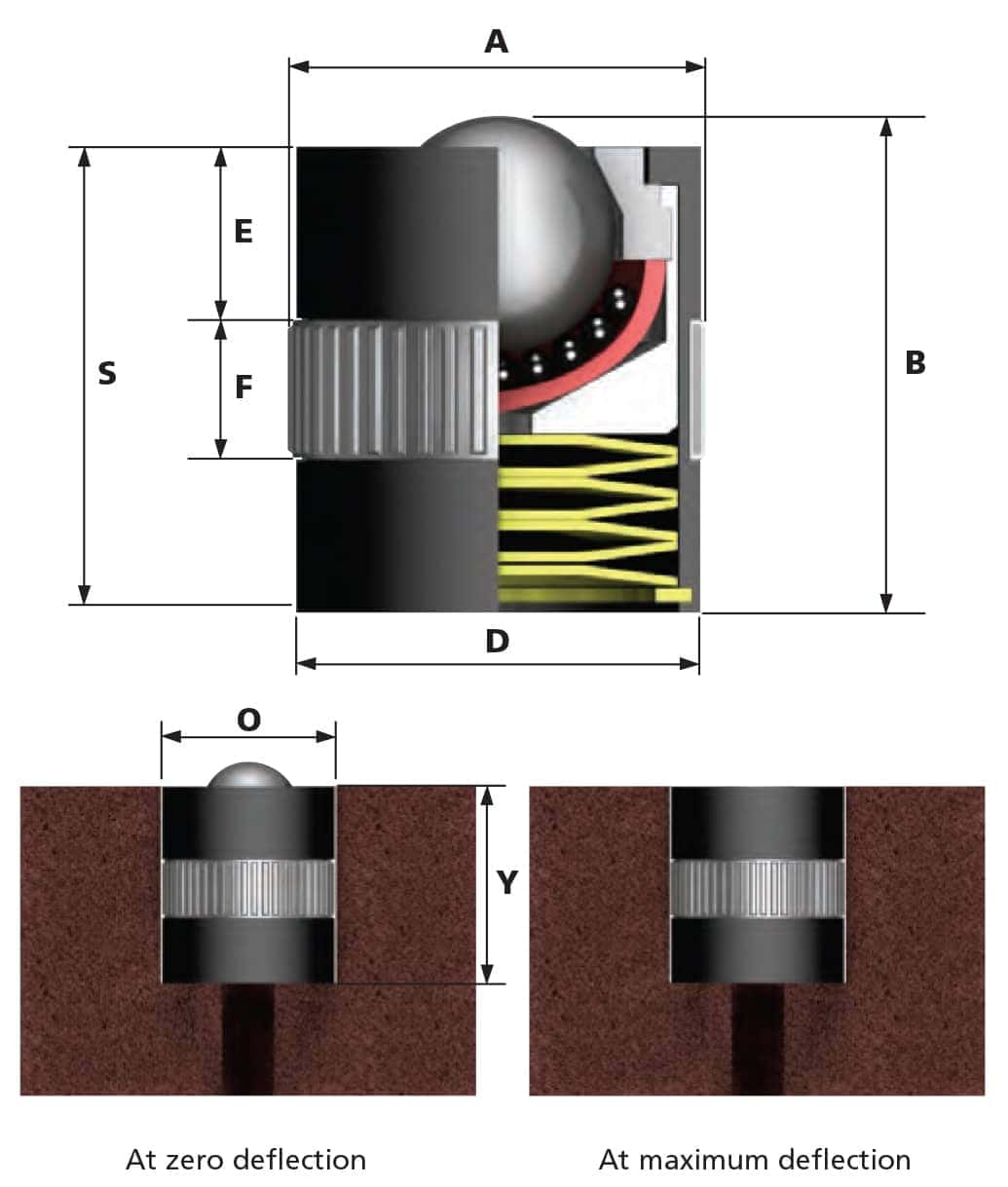

die_lifters side view, zero deflection and maximum deflection diagrams

Material Types

No two applications are the same hence Alwayse have developed a range of material types that can satisfy all applications from standard to custom requirements.

Find out more

LOAD CAPACITY

LOAD BALL UP
n/a

LOAD BALL DOWN
n/a

ADD TO COMPARE
COMPARE

LOAD CAPACITY

LOAD BALL UP
n/a

LOAD BALL DOWN
n/a

ADD TO COMPARE
COMPARE

Specifications

SPECIFICATION 9DL2413 9DL2416
Load Ball Diameter (mm) 12.7 12.7
Fixing Method Interference Interference
Max Load (Ball Up) (kg) N/a N/a
Max Load (Ball Down) (kg) N/a N/a
Load Ball Material Carbon Chrome Stainless Steel
Support Ball Material Carbon Chrome Stainless Steel
Unit Housing Finish Chemical Black Chemical Black
C (offset) N/a N/a
Support Dynamic Load 40 40
Load To Fully Depress 90 90
Flange Diameter (A) (mm) N/a N/a
Inside Diameter (B) (mm) N/a N/a
Clip Depth (C) (mm) N/a N/a
Material Thickness (D) (mm) N/a N/a
Product Weight (kg) 0.074 0.074
Dimension P - Thread Size N/a N/a
Dim. A - Max Diameter (mm) 24.5 24.5
Dim. B - Working ht. of Ball (mm) 30 30
Dim. D - Body Diameter (mm) 23.9 23.9
Dim. E - Under Flange to Base (mm) N/a N/a
Dim. F - Flange Thickness (mm) N/a N/a
Dim. F - Base Thickness (mm) N/a N/a
Dim. G - Fixing Holes PCD (mm) N/a N/a
Dim. H - Fixing Hole Size (mm) N/a N/a
Dim. J - Major Flange Size (mm) N/a N/a
Dim. K - Minor Flange Size (mm) N/a N/a
Dim. L - Overall Height (mm) N/a N/a
Dim. N - Length of Thread (mm) N/a N/a
Dim. O - Seating Hole (mm) N/a N/a
Dim. R - Radius Under Flange N/a N/a
Dim. X - Across Flats N/a N/a

SPECIFICATION 9DL3013 9DL3016
Load Ball Diameter (mm) 15.8 15.8
Fixing Method Interference Interference
Max Load (Ball Up) (kg) N/a N/a
Max Load (Ball Down) (kg) N/a N/a
Load Ball Material Carbon Chrome Stainless Steel
Support Ball Material Carbon Chrome Stainless Steel
Unit Housing Finish Chemical Black Chemical Black
C (offset) N/a N/a
Support Dynamic Load 60 60
Load To Fully Depress 110 110
Flange Diameter (A) (mm) N/a N/a
Inside Diameter (B) (mm) N/a N/a
Clip Depth (C) (mm) N/a N/a
Material Thickness (D) (mm) N/a N/a
Product Weight (kg) 0.127 0.127
Dimension P - Thread Size N/a N/a
Dim. A - Max Diameter (mm) 30.5 30.5
Dim. B - Working ht. of Ball (mm) 36 36
Dim. D - Body Diameter (mm) 29.9 29.9
Dim. E - Under Flange to Base (mm) N/a N/a
Dim. F - Flange Thickness (mm) N/a N/a
Dim. F - Base Thickness (mm) N/a N/a
Dim. G - Fixing Holes PCD (mm) N/a N/a
Dim. H - Fixing Hole Size (mm) N/a N/a
Dim. J - Major Flange Size (mm) N/a N/a
Dim. K - Minor Flange Size (mm) N/a N/a
Dim. L - Overall Height (mm) N/a N/a
Dim. N - Length of Thread (mm) N/a N/a
Dim. O - Seating Hole (mm) N/a N/a
Dim. R - Radius Under Flange N/a N/a
Dim. X - Across Flats N/a N/a

SPECIFICATION 9DL4013 9DL4016
Load Ball Diameter (mm) 25.4 25.4
Fixing Method Interference Interference
Max Load (Ball Up) (kg) N/a N/a
Max Load (Ball Down) (kg) N/a N/a
Load Ball Material Carbon Chrome Stainless Steel
Support Ball Material Carbon Chrome Stainless Steel
Unit Housing Finish Chemical Black Chemical Black
C (offset) N/a N/a
Support Dynamic Load 100 100
Load To Fully Depress 175 175
Flange Diameter (A) (mm) N/a N/a
Inside Diameter (B) (mm) N/a N/a
Clip Depth (C) (mm) N/a N/a
Material Thickness (D) (mm) N/a N/a
Product Weight (kg) 0.32 0.32
Dimension P - Thread Size N/a N/a
Dim. A - Max Diameter (mm) 40.5 40.5
Dim. B - Working ht. of Ball (mm) 48 48
Dim. D - Body Diameter (mm) 39.8 39.8
Dim. E - Under Flange to Base (mm) N/a N/a
Dim. F - Flange Thickness (mm) N/a N/a
Dim. F - Base Thickness (mm) N/a N/a
Dim. G - Fixing Holes PCD (mm) N/a N/a
Dim. H - Fixing Hole Size (mm) N/a N/a
Dim. J - Major Flange Size (mm) N/a N/a
Dim. K - Minor Flange Size (mm) N/a N/a
Dim. L - Overall Height (mm) N/a N/a
Dim. N - Length of Thread (mm) N/a N/a
Dim. O - Seating Hole (mm) N/a N/a
Dim. R - Radius Under Flange N/a N/a
Dim. X - Across Flats N/a N/a

SPECIFICATION 9DL7013
Load Ball Diameter (mm) 38.1
Fixing Method Interference
Max Load (Ball Up) (kg) N/a
Max Load (Ball Down) (kg) N/a
Load Ball Material Carbon Chrome
Support Ball Material Carbon Chrome
Unit Housing Finish Chemical Black
C (offset) N/a
Support Dynamic Load 500
Load To Fully Depress 720
Flange Diameter (A) (mm) N/a
Inside Diameter (B) (mm) N/a
Clip Depth (C) (mm) N/a
Material Thickness (D) (mm) N/a
Product Weight (kg) 2
Dimension P - Thread Size N/a
Dim. A - Max Diameter (mm) 71
Dim. B - Working ht. of Ball (mm) 80
Dim. D - Body Diameter (mm) 70
Dim. E - Under Flange to Base (mm) N/a
Dim. F - Flange Thickness (mm) N/a
Dim. F - Base Thickness (mm) N/a
Dim. G - Fixing Holes PCD (mm) N/a
Dim. H - Fixing Hole Size (mm) N/a
Dim. J - Major Flange Size (mm) N/a
Dim. K - Minor Flange Size (mm) N/a
Dim. L - Overall Height (mm) N/a
Dim. N - Length of Thread (mm) N/a
Dim. O - Seating Hole (mm) N/a
Dim. R - Radius Under Flange N/a
Dim. X - Across Flats N/a
🔍
