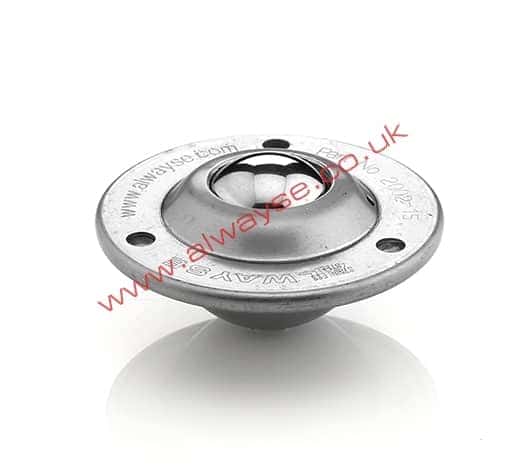

Alwayse Ball Transfer Unit Flange Fixing Unit 2002

Heavy Duty pressed steel unit with a low profile and extra large dirt exit hole designed for arduous and dirty conditions.

Features integral seal to minimise debris ingress and flushing hole for cleaning.

CONTACT US

Interested in this product, get in touch...

ENQUIRE NOW
🔍
2002-15 ball transfer unit
11101 ball transfer unit

Material Types

No two applications are the same hence Alwayse have developed a range of material types that can satisfy all applications from standard to custom requirements.

Find out more

LOAD CAPACITY

LOAD BALL UP
225

LOAD BALL DOWN
100

ADD TO COMPARE
COMPARE

LOAD CAPACITY

LOAD BALL UP
225

LOAD BALL DOWN
100

ADD TO COMPARE
COMPARE

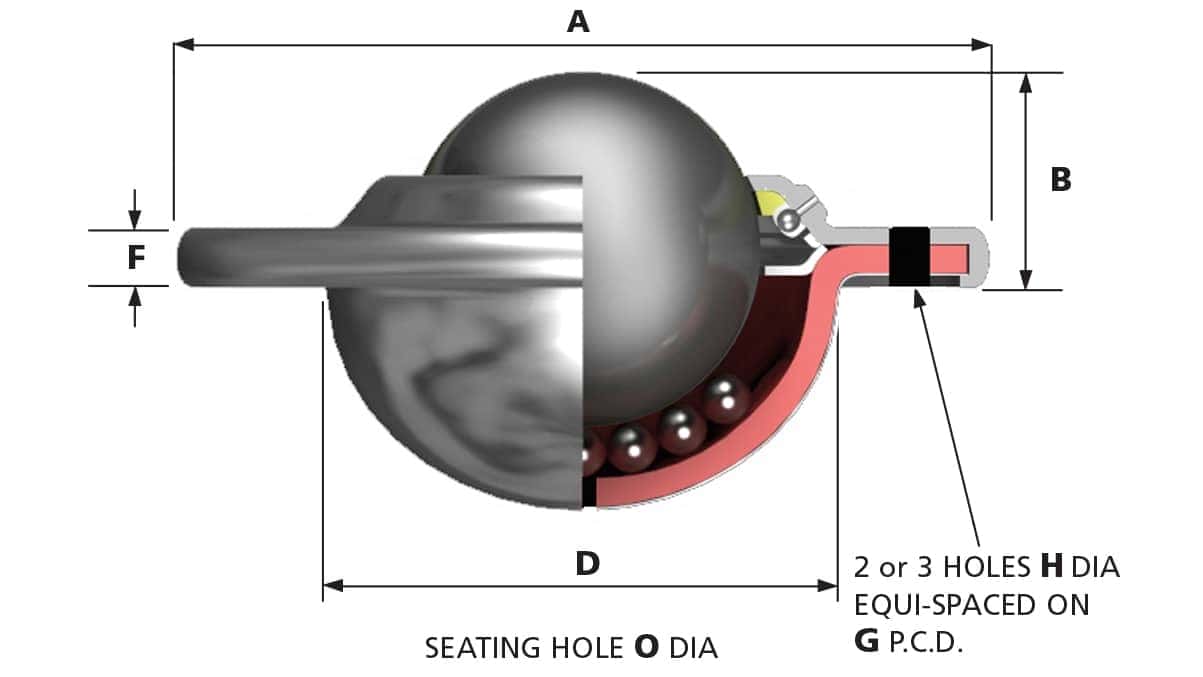

Specifications

SPECIFICATION 200213 200216
Load Ball Diameter (mm) 39.7 39.7
Fixing Method Flange Flange
Max Load (Ball Up) (kg) 225 225
Max Load (Ball Down) (kg) 100 100
Load Ball Material Carbon Chrome Stainless Steel
Support Ball Material Carbon Chrome Stainless Steel
Unit Housing Finish Carbon Steel Carbon Steel
C (offset) N/a N/a
Support Dynamic Load N/a N/a
Load To Fully Depress N/a N/a
Flange Diameter (A) (mm) N/a N/a
Inside Diameter (B) (mm) N/a N/a
Clip Depth (C) (mm) N/a N/a
Material Thickness (D) (mm) N/a N/a
Product Weight (kg) 0.635 0.635
Dimension P - Thread Size N/a N/a
Dim. A - Max Diameter (mm) 94.6 94.6
Dim. B - Working ht. of Ball (mm) 21.2+/- 0.3 21.2+/- 0.3
Dim. D - Body Diameter (mm) 62 62
Dim. E - Under Flange to Base (mm) 27.3 27.3
Dim. F - Flange Thickness (mm) 6.3 6.3
Dim. F - Base Thickness (mm) N/a N/a
Dim. G - Fixing Holes PCD (mm) 76.2 +/- 0.2 76.2 +/- 0.2
Dim. H - Fixing Hole Size (mm) 7 7
Dim. J - Major Flange Size (mm) N/a N/a
Dim. K - Minor Flange Size (mm) N/a N/a
Dim. L - Overall Height (mm) N/a N/a
Dim. N - Length of Thread (mm) N/a N/a
Dim. O - Seating Hole (mm) 63.3 63.3
Dim. R - Radius Under Flange N/a N/a
Dim. X - Across Flats N/a N/a
🔍
