Alwayse Ball Transfer Unit Flange Fixing Unit 3000

General purpose pressed steel unit with a low profile and dirt exit hole.

Features integral seal to minimise debris ingress.

CONTACT US

Interested in this product, get in touch...

ENQUIRE NOW
🔍
3000-15 ball transfer unit flange fixing with 2 round holes
11101 ball transfer unit diagram

Material Types

No two applications are the same hence Alwayse have developed a range of material types that can satisfy all applications from standard to custom requirements.

Find out more

LOAD CAPACITY

LOAD BALL UP
25

LOAD BALL DOWN
10

ADD TO COMPARE
COMPARE

LOAD CAPACITY

LOAD BALL UP
20

LOAD BALL DOWN
10

ADD TO COMPARE
COMPARE

LOAD CAPACITY

LOAD BALL UP
25

LOAD BALL DOWN
10

ADD TO COMPARE
COMPARE

LOAD CAPACITY

LOAD BALL UP
25

LOAD BALL DOWN
10

ADD TO COMPARE
COMPARE

Specifications

SPECIFICATION 30001300 30001400 30001500 30001600
Load Ball Diameter (mm) 19 19 19 19
Fixing Method Flange Flange Flange Flange
Max Load (Ball Up) (kg) 25 20 25 25
Max Load (Ball Down) (kg) 10 10 10 10
Load Ball Material Carbon Chrome Nylon Stainless Steel Stainless Steel
Support Ball Material Carbon Chrome Stainless Steel Stainless Steel Stainless Steel
Unit Housing Finish Carbon Steel Carbon Steel Stainless Steel Carbon Steel
C (offset) N/a N/a N/a N/a
Support Dynamic Load N/a N/a N/a N/a
Load To Fully Depress N/a N/a N/a N/a
Flange Diameter (A) (mm) N/a N/a N/a N/a
Inside Diameter (B) (mm) N/a N/a N/a N/a
Clip Depth (C) (mm) N/a N/a N/a N/a
Material Thickness (D) (mm) N/a N/a N/a N/a
Product Weight (kg) 0.087 0.087 0.087 0.087
Dimension P - Thread Size N/a N/a N/a N/a
Dim. A - Max Diameter (mm) 61 61 61 61
Dim. B - Working ht. of Ball (mm) 10+/- 0.3 10+/- 0.3 10+/- 0.3 10+/- 0.3
Dim. D - Body Diameter (mm) 29.1 29.1 29.1 29.1
Dim. E - Under Flange to Base (mm) 12 12 12 12
Dim. F - Flange Thickness (mm) 3.2 3.2 3.2 3.2
Dim. F - Base Thickness (mm) N/a N/a N/a N/a
Dim. G - Fixing Holes PCD (mm) 44.5 +/- 0.2 44.5 +/- 0.2 44.5 +/- 0.2 44.5 +/- 0.2
Dim. H - Fixing Hole Size (mm) 5.1 5.1 5.1 5.1
Dim. J - Major Flange Size (mm) N/a N/a N/a N/a
Dim. K - Minor Flange Size (mm) N/a N/a N/a N/a
Dim. L - Overall Height (mm) N/a N/a N/a N/a
Dim. N - Length of Thread (mm) N/a N/a N/a N/a
Dim. O - Seating Hole (mm) 30 30 30 30
Dim. R - Radius Under Flange N/a N/a N/a N/a
Dim. X - Across Flats N/a N/a N/a N/a
🔍

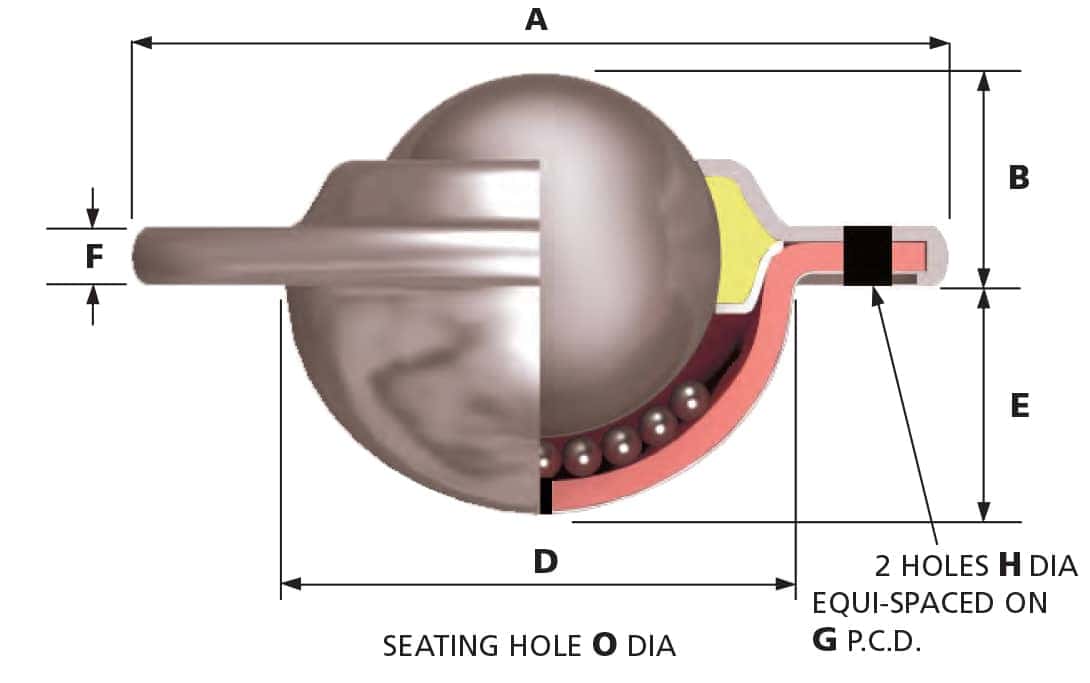

11101 ball transfer unit diagram
