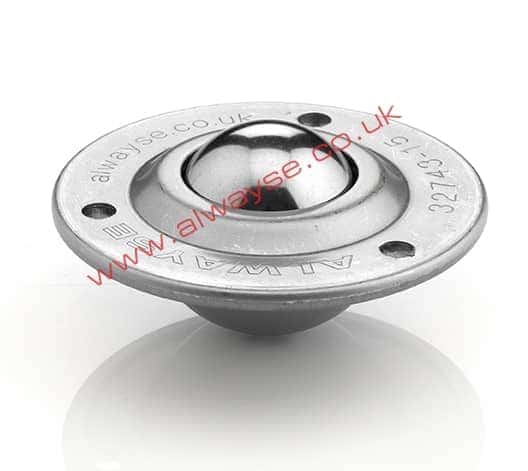

Alwayse Ball Transfer Unit Flange Fixing Unit 32743

General purpose pressed steel unit with a low profile and multiple dirt exit holes.

No seal as standard

CONTACT US

Interested in this product, get in touch...

Material Types

No two applications are the same hence Alwayse have developed a range of material types that can satisfy all applications from standard to custom requirements.

Find out more

LOAD CAPACITY

LOAD BALL UP
125

LOAD BALL DOWN
55

LOAD CAPACITY

LOAD BALL UP
25

LOAD BALL DOWN
10

LOAD CAPACITY

LOAD BALL UP
125

LOAD BALL DOWN
55

LOAD CAPACITY

LOAD BALL UP
125

LOAD BALL DOWN
55

Specifications

SPECIFICATION 3274313 3274314 3274315 3274316
Load Ball Diameter (mm) 31.7 31.7 31.7 31.7
Fixing Method Flange Flange Flange Flange
Max Load (Ball Up) (kg) 125 25 125 125
Max Load (Ball Down) (kg) 55 10 55 55
Load Ball Material Carbon Chrome Nylon Stainless Steel Stainless Steel
Support Ball Material Carbon Chrome Stainless Steel Stainless Steel Stainless Steel
Unit Housing Finish Carbon Steel Carbon Steel Stainless Steel Carbon Steel
C (offset) N/a N/a N/a N/a
Support Dynamic Load N/a N/a N/a N/a
Load To Fully Depress N/a N/a N/a N/a
Flange Diameter (A) (mm) N/a N/a N/a N/a
Inside Diameter (B) (mm) N/a N/a N/a N/a
Clip Depth (C) (mm) N/a N/a N/a N/a
Material Thickness (D) (mm) N/a N/a N/a N/a
Product Weight (kg) 0.27 0.27 0.27 0.27
Dimension P - Thread Size N/a N/a N/a N/a
Dim. A - Max Diameter (mm) 73.7 73.7 73.7 73.7
Dim. B - Working ht. of Ball (mm) 16.2+/- 0.3 16.2+/- 0.3 16.2+/- 0.3 16.2+/- 0.3
Dim. D - Body Diameter (mm) 45.5 45.5 45.5 45.5
Dim. E - Under Flange to Base (mm) 19.9 19.9 19.9 19.9
Dim. F - Flange Thickness (mm) 4.2 4.2 4.2 4.2
Dim. F - Base Thickness (mm) N/a N/a N/a N/a
Dim. G - Fixing Holes PCD (mm) 58.7 +/- 0.2 58.7 +/- 0.2 58.7 +/- 0.2 58.7 +/- 0.2
Dim. H - Fixing Hole Size (mm) 5.1 5.1 5.1 5.1
Dim. J - Major Flange Size (mm) N/a N/a N/a N/a
Dim. K - Minor Flange Size (mm) N/a N/a N/a N/a
Dim. L - Overall Height (mm) N/a N/a N/a N/a
Dim. N - Length of Thread (mm) N/a N/a N/a N/a
Dim. O - Seating Hole (mm) 46.5 46.5 46.5 46.5
Dim. R - Radius Under Flange N/a N/a N/a N/a
Dim. X - Across Flats N/a N/a N/a N/a
