Alwayse Ball Transfer Unit Heavy Duty Series 805

High load capacity, low profile unit formed from single piece steel body.

Multi dirt exit holes assist unit cleaning.

Available with 30mm or 45mm load ball

CONTACT US

Interested in this product, get in touch...

ENQUIRE NOW
🔍

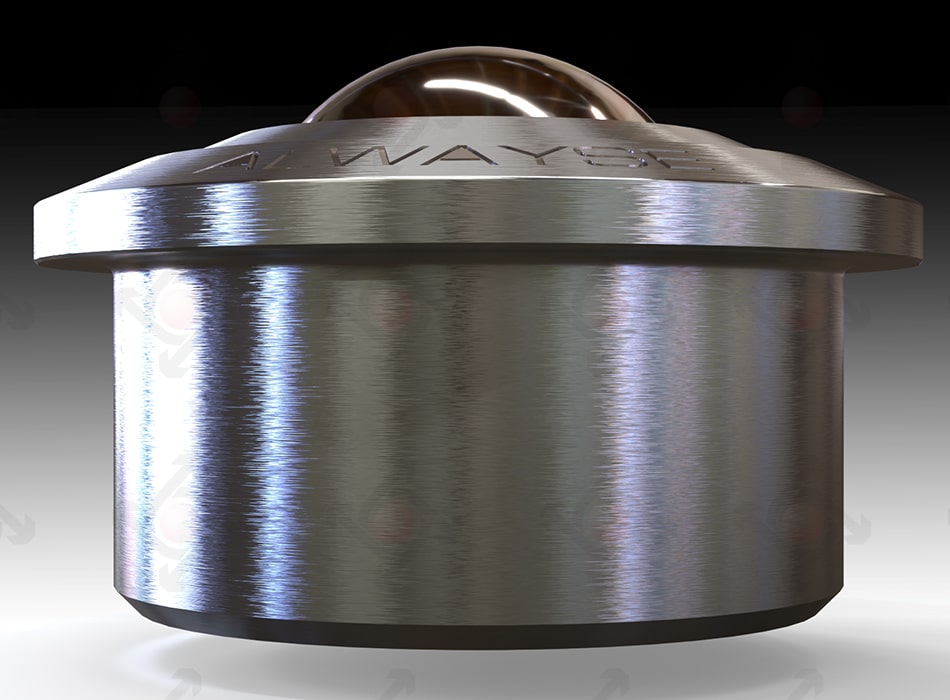

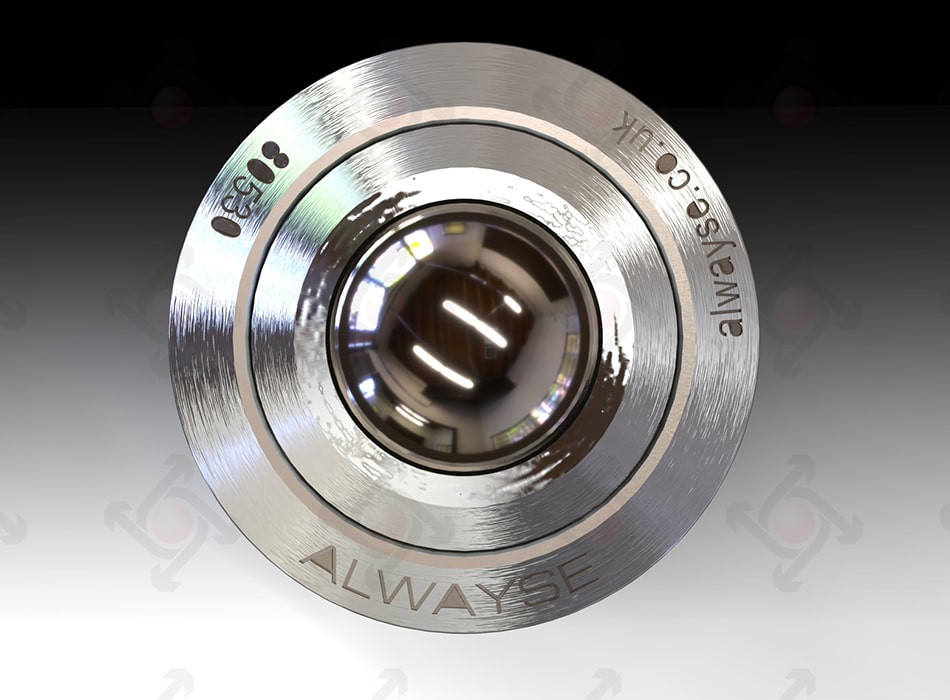

805-30-15 ball transfer unit

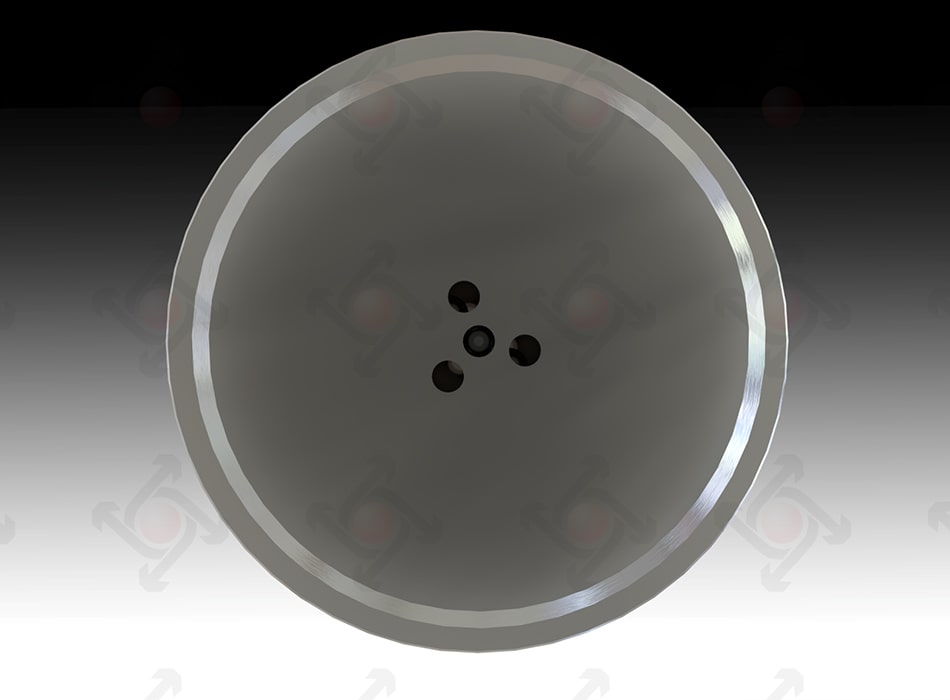

805-30 ball transfer unit bottom view

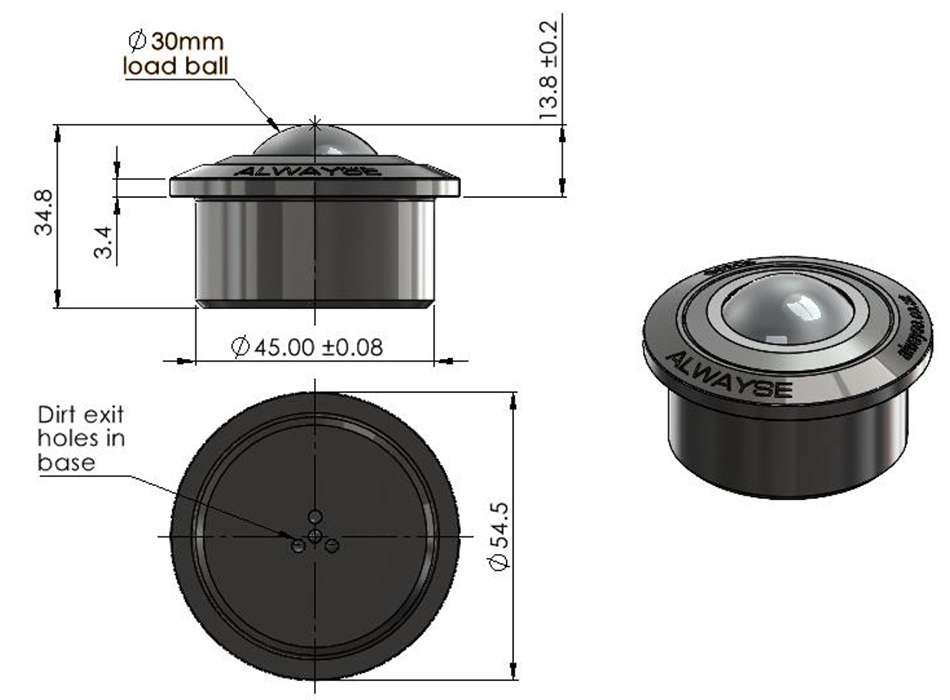

hd_805 side view diagram

Material Types

No two applications are the same hence Alwayse have developed a range of material types that can satisfy all applications from standard to custom requirements.

Find out more

LOAD CAPACITY

LOAD BALL UP
350 - 600

LOAD BALL DOWN
Contact Technical

ADD TO COMPARE
COMPARE

LOAD CAPACITY

LOAD BALL UP
200 - 300

LOAD BALL DOWN
Contact Technical

ADD TO COMPARE
COMPARE

LOAD CAPACITY

LOAD BALL UP
350 - 600

LOAD BALL DOWN
Contact Technical

ADD TO COMPARE
COMPARE

Specifications

SPECIFICATION 8053013 8053015 8053016
Load Ball Diameter (mm) 30 30 30
Fixing Method Hole Hole Hole
Max Load (Ball Up) (kg) 350 200 350
Max Load (Ball Down) (kg) Contact Technical Contact Technical Contact Technical
Load Ball Material Carbon Chrome Stainless Steel Stainless Steel
Support Ball Material Carbon Chrome Stainless Steel Stainless Steel
Unit Housing Finish Carbon Steel Stainless Steel Carbon Steel
C (offset) N/a N/a N/a
Load To Fully Depress N/a N/a N/a
Flange Diameter (A) (mm) N/a N/a N/a
Inside Diameter (B) (mm) N/a N/a N/a
Clip Depth (C) (mm) N/a N/a N/a
Material Thickness (D) (mm) N/a N/a N/a
Product Weight (kg) 0.38 0.38 0.38
Dimension P - Thread Size N/a N/a N/a
Dim. A - Max Diameter (mm) 55 55 55
Dim. B - Working ht. of Ball (mm) 13.8 13.8 13.8
Dim. D - Body Diameter (mm) 45 45 45
Dim. E - Under Flange to Base (mm) N/a N/a N/a
Dim. F - Flange Thickness (mm) 3.4 3.4 3.4
Dim. F - Base Thickness (mm) N/a N/a N/a
Dim. G - Fixing Holes PCD (mm) N/a N/a N/a
Dim. H - Fixing Hole Size (mm) N/a N/a N/a
Dim. J - Major Flange Size (mm) N/a N/a N/a
Dim. K - Minor Flange Size (mm) N/a N/a N/a
Dim. L - Overall Height (mm) 36.8 36.8 36.8
Dim. N - Length of Thread (mm) N/a N/a N/a
Dim. O - Seating Hole (mm) N/a N/a N/a
Dim. R - Radius Under Flange N/a N/a N/a
Dim. X - Across Flats N/a N/a N/a

SPECIFICATION 8054513 8054515 8054516
Load Ball Diameter (mm) 44.5 44.5 44.5
Fixing Method Hole Hole Hole
Max Load (Ball Up) (kg) 600 300 600
Max Load (Ball Down) (kg) Contact Technical Contact Technical Contact Technical
Load Ball Material Carbon Chrome Carbon Chrome Carbon Chrome
Support Ball Material Carbon Chrome Carbon Chrome Carbon Chrome
Unit Housing Finish Carbon Steel Carbon Steel Carbon Steel
C (offset) N/a N/a N/a
Load To Fully Depress N/a N/a N/a
Flange Diameter (A) (mm) N/a N/a N/a
Inside Diameter (B) (mm) N/a N/a N/a
Clip Depth (C) (mm) N/a N/a N/a
Material Thickness (D) (mm) N/a N/a N/a
Product Weight (kg) 1.1 1.1 1.1
Dimension P - Thread Size N/a N/a N/a
Dim. A - Max Diameter (mm) 75 75 75
Dim. B - Working ht. of Ball (mm) 19 19 19
Dim. D - Body Diameter (mm) 62 62 62
Dim. E - Under Flange to Base (mm) N/a N/a N/a
Dim. F - Flange Thickness (mm) 3.8 3.8 3.8
Dim. F - Base Thickness (mm) N/a N/a N/a
Dim. G - Fixing Holes PCD (mm) N/a N/a N/a
Dim. H - Fixing Hole Size (mm) N/a N/a N/a
Dim. J - Major Flange Size (mm) N/a N/a N/a
Dim. K - Minor Flange Size (mm) N/a N/a N/a
Dim. L - Overall Height (mm) 53.5 53.5 53.5
Dim. N - Length of Thread (mm) N/a N/a N/a
Dim. O - Seating Hole (mm) N/a N/a N/a
Dim. R - Radius Under Flange N/a N/a N/a
Dim. X - Across Flats N/a N/a N/a
🔍
hd_805 side view diagram

NEED HELP SELECTING YOUR BALL TRANSFER UNIT?

SELECT YOUR BALL TRANSFER UNIT

Let us help you find the perfect Ball Transfer Unit to suit your application.

FIND OUT MORE

MATERIAL TYPES

Alwayse have developed a range of material types that can satisfy all applications.

FIND OUT MORE

LOAD RATING

Load ball ratings fall into Light, Medium or Heavy.

FIND OUT MORE

FIXING TYPES

Ball Transfer Units can be fixed using a variety of methods to fit a range of different surface materials.

FIND OUT MORE
