Alwayse Ball Transfer Unit Heavy Duty Series 807

High load capacity, low profile unit formed from single piece steel body.

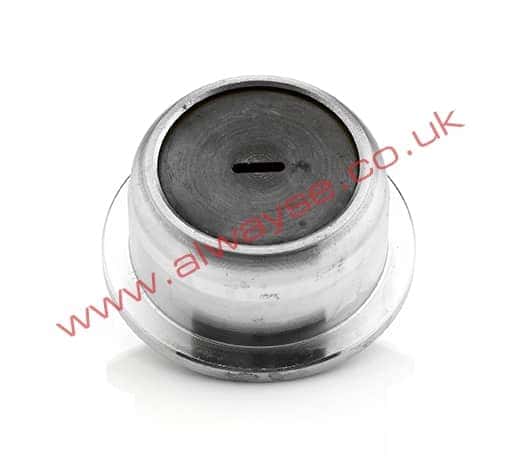

Slotted dirt exit hole allows debris particles to pass through.

CONTACT US

Interested in this product, get in touch...

Material Types

No two applications are the same hence Alwayse have developed a range of material types that can satisfy all applications from standard to custom requirements.

Find out more

LOAD CAPACITY

LOAD BALL UP
350

LOAD BALL DOWN
Contact Technical

LOAD CAPACITY

LOAD BALL UP
200

LOAD BALL DOWN
Contact Technical

LOAD CAPACITY

LOAD BALL UP
350

LOAD BALL DOWN
Contact Technical

Specifications

SPECIFICATION 8073013 8073015 8073016
Load Ball Diameter (mm) 30 30 30
Fixing Method Hole Hole Hole
Max Load (Ball Up) (kg) 350 200 350
Max Load (Ball Down) (kg) Contact Technical Contact Technical Contact Technical
Load Ball Material Carbon Chrome Carbon Chrome Carbon Chrome
Support Ball Material Carbon Chrome Carbon Chrome Carbon Chrome
Unit Housing Finish Carbon Steel Carbon Steel Carbon Steel
C (offset) N/a N/a N/a
Load To Fully Depress N/a N/a N/a
Flange Diameter (A) (mm) N/a N/a N/a
Inside Diameter (B) (mm) N/a N/a N/a
Clip Depth (C) (mm) N/a N/a N/a
Material Thickness (D) (mm) N/a N/a N/a
Product Weight (kg) 0.36 0.36 0.36
Dimension P - Thread Size N/a N/a N/a
Dim. A - Max Diameter (mm) 55 55 55
Dim. B - Working ht. of Ball (mm) 13.8 13.8 13.8
Dim. D - Body Diameter (mm) 45 45 45
Dim. E - Under Flange to Base (mm) N/a N/a N/a
Dim. F - Flange Thickness (mm) 3.4 3.4 3.4
Dim. F - Base Thickness (mm) N/a N/a N/a
Dim. G - Fixing Holes PCD (mm) N/a N/a N/a
Dim. H - Fixing Hole Size (mm) N/a N/a N/a
Dim. J - Major Flange Size (mm) N/a N/a N/a
Dim. K - Minor Flange Size (mm) N/a N/a N/a
Dim. L - Overall Height (mm) 36.8 36.8 36.8
Dim. N - Length of Thread (mm) N/a N/a N/a
Dim. O - Seating Hole (mm) N/a N/a N/a
Dim. R - Radius Under Flange N/a N/a N/a
Dim. X - Across Flats N/a N/a N/a
