Alwayse Ball Transfer Unit Heavy Duty Series 808

High load capacity, low profile unit formed from single piece steel body.

Polymer scraper seal to prevent ingress of dirt Slotted dirt exit hole allows debris particles to pass through.

CONTACT US

Interested in this product, get in touch...

ENQUIRE NOW
🔍

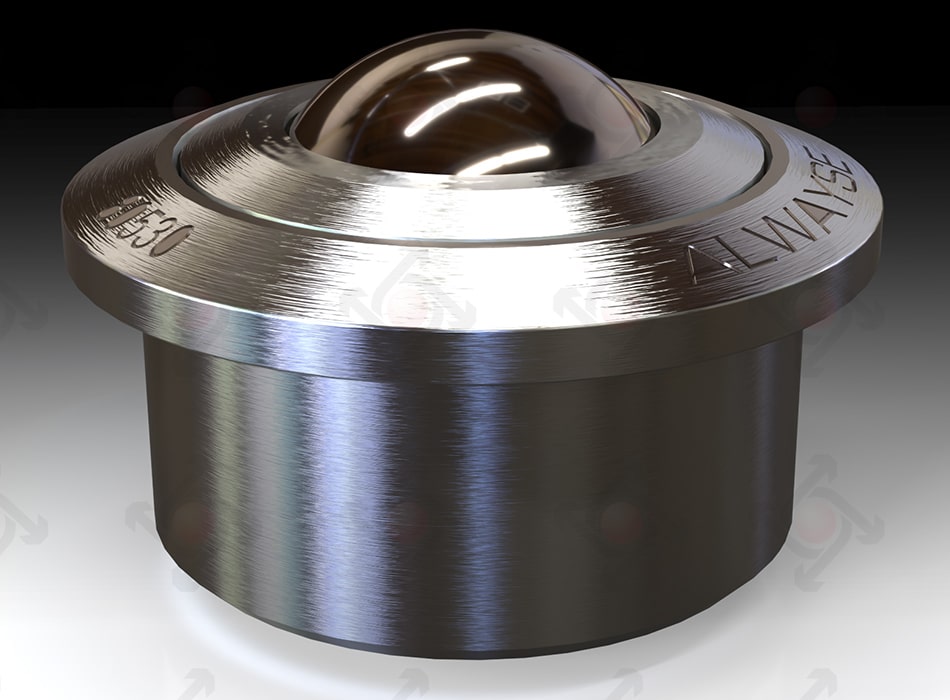

808-30-15 ball transfer unit
808-30-15 ball transfer unit
hd_807_and_808 ball transfer unit side view diagram

Material Types

No two applications are the same hence Alwayse have developed a range of material types that can satisfy all applications from standard to custom requirements.

Find out more

LOAD CAPACITY

LOAD BALL UP
350

LOAD BALL DOWN
Contact Technical

ADD TO COMPARE
COMPARE

LOAD CAPACITY

LOAD BALL UP
200

LOAD BALL DOWN
Contact Technical

ADD TO COMPARE
COMPARE

LOAD CAPACITY

LOAD BALL UP
350

LOAD BALL DOWN
Contact Technical

ADD TO COMPARE
COMPARE

Specifications

SPECIFICATION 8083013 8083015 8083016
Load Ball Diameter (mm) 30 30 30
Fixing Method Hole Hole Hole
Max Load (Ball Up) (kg) 350 200 350
Max Load (Ball Down) (kg) Contact Technical Contact Technical Contact Technical
Load Ball Material Carbon Chrome Carbon Chrome Carbon Chrome
Support Ball Material Carbon Chrome Carbon Chrome Carbon Chrome
Unit Housing Finish Carbon Steel Carbon Steel Carbon Steel
C (offset) N/a N/a N/a
Load To Fully Depress N/a N/a N/a
Flange Diameter (A) (mm) N/a N/a N/a
Inside Diameter (B) (mm) N/a N/a N/a
Clip Depth (C) (mm) N/a N/a N/a
Material Thickness (D) (mm) N/a N/a N/a
Product Weight (kg) 0.34 0.34 0.34
Dimension P - Thread Size N/a N/a N/a
Dim. A - Max Diameter (mm) 55 55 55
Dim. B - Working ht. of Ball (mm) 13.8 13.8 13.8
Dim. D - Body Diameter (mm) 45 45 45
Dim. E - Under Flange to Base (mm) N/a N/a N/a
Dim. F - Flange Thickness (mm) 3.4 3.4 3.4
Dim. F - Base Thickness (mm) N/a N/a N/a
Dim. G - Fixing Holes PCD (mm) N/a N/a N/a
Dim. H - Fixing Hole Size (mm) N/a N/a N/a
Dim. J - Major Flange Size (mm) N/a N/a N/a
Dim. K - Minor Flange Size (mm) N/a N/a N/a
Dim. L - Overall Height (mm) 36.8 36.8 36.8
Dim. N - Length of Thread (mm) N/a N/a N/a
Dim. O - Seating Hole (mm) N/a N/a N/a
Dim. R - Radius Under Flange N/a N/a N/a
Dim. X - Across Flats N/a N/a N/a
🔍
hd_807_and_808 ball transfer unit side view diagram
