Alwayse Ball Transfer Unit Heavy Duty Series 810

High load capacity, low profile ball transfer units formed from single piece steel body and coned outer ring.

Available with 12.7, 15.8, 22, 30 45mm load ball.

The 810-12 does not have a flange

CONTACT US

Interested in this product, get in touch...

ENQUIRE NOW
🔍

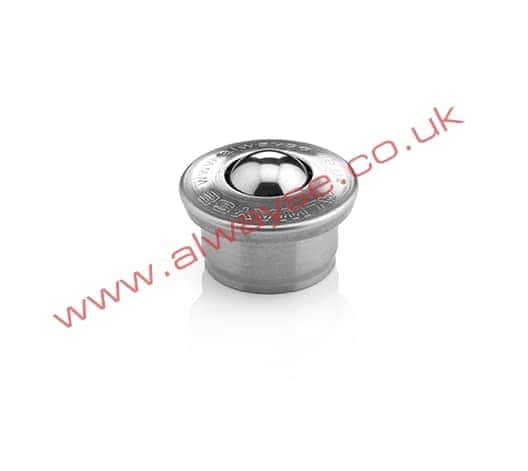

810-15-15 ball transfer unit

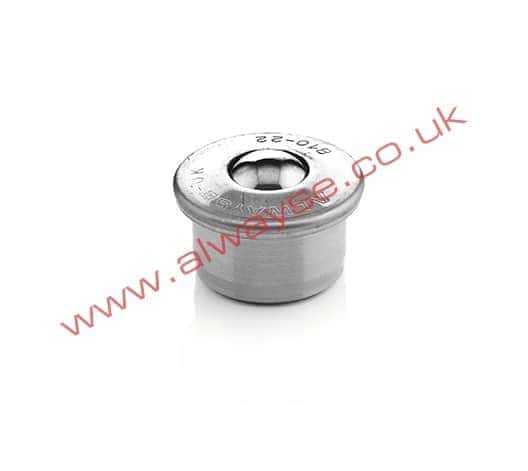

810-22-15 ball transfer unit

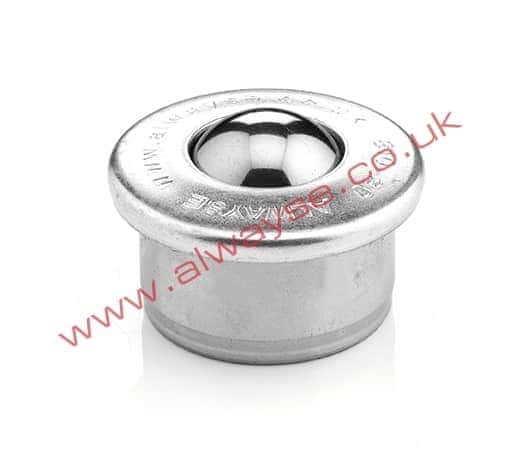

810-30-13 ball transfer unit

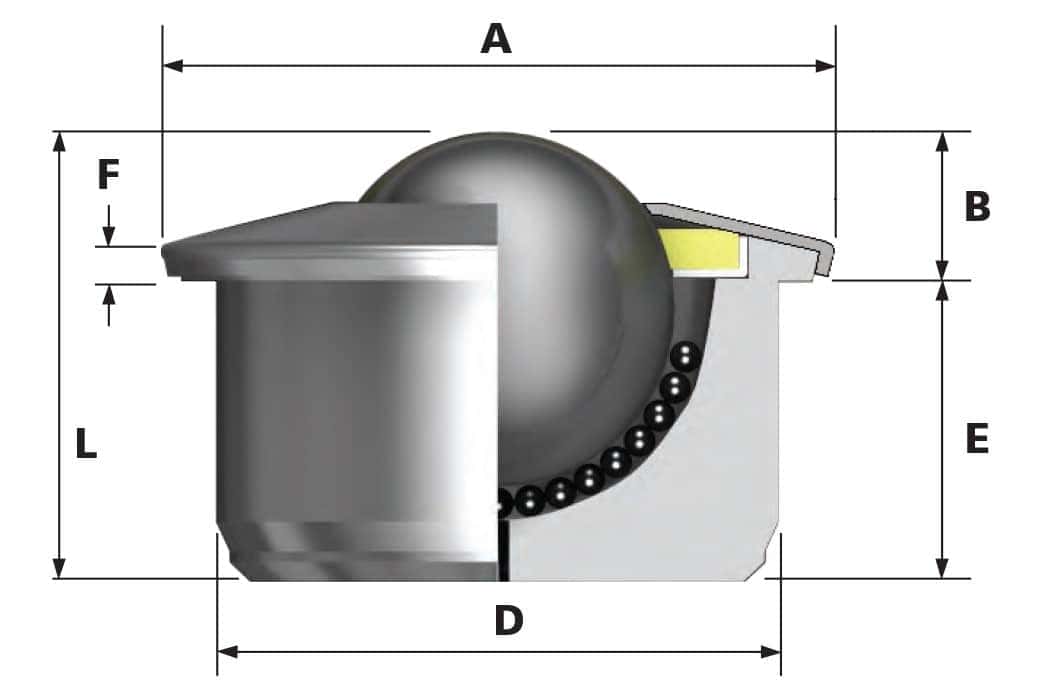

hd_810 side view diagrarm

Material Types

No two applications are the same hence Alwayse have developed a range of material types that can satisfy all applications from standard to custom requirements.

Find out more

LOAD CAPACITY

LOAD BALL UP
25 - 600

LOAD BALL DOWN
Contact Technical

ADD TO COMPARE
COMPARE

LOAD CAPACITY

LOAD BALL UP
25 - 300

LOAD BALL DOWN
Contact Technical

ADD TO COMPARE
COMPARE

LOAD CAPACITY

LOAD BALL UP
40 - 600

LOAD BALL DOWN
Contact Technical

ADD TO COMPARE
COMPARE

Specifications

SPECIFICATION 8101213 8101215 8101216
Load Ball Diameter (mm) 12.7 12.7 12.7
Fixing Method Hole Hole Hole
Max Load (Ball Up) (kg) 25 25 40
Max Load (Ball Down) (kg) Contact Technical Contact Technical Contact Technical
Load Ball Material Carbon Chrome Stainless Steel Stainless Steel
Support Ball Material Carbon Chrome Stainless Steel Stainless Steel
Unit Housing Finish Carbon Steel Stainless Steel Carbon Steel
C (offset) N/a N/a N/a
Load To Fully Depress N/a N/a N/a
Flange Diameter (A) (mm) N/a N/a N/a
Inside Diameter (B) (mm) N/a N/a N/a
Clip Depth (C) (mm) N/a N/a N/a
Material Thickness (D) (mm) N/a N/a N/a
Product Weight (kg) 0.034 0.034 0.034
Dimension P - Thread Size N/a N/a N/a
Dim. A - Max Diameter (mm) N/a N/a N/a
Dim. B - Working ht. of Ball (mm) N/a N/a N/a
Dim. D - Body Diameter (mm) 21 22 22
Dim. E - Under Flange to Base (mm) N/a N/a N/a
Dim. F - Flange Thickness (mm) N/a N/a N/a
Dim. F - Base Thickness (mm) N/a N/a N/a
Dim. G - Fixing Holes PCD (mm) N/a N/a N/a
Dim. H - Fixing Hole Size (mm) N/a N/a N/a
Dim. J - Major Flange Size (mm) N/a N/a N/a
Dim. K - Minor Flange Size (mm) N/a N/a N/a
Dim. L - Overall Height (mm) 17.5 17.5 17.5
Dim. N - Length of Thread (mm) N/a N/a N/a
Dim. O - Seating Hole (mm) N/a N/a N/a
Dim. R - Radius Under Flange N/a N/a N/a
Dim. X - Across Flats N/a N/a N/a

SPECIFICATION 8101513 8101515 8101516
Load Ball Diameter (mm) 15.8 15.8 15.8
Fixing Method Hole Hole Hole
Max Load (Ball Up) (kg) 70 45 70
Max Load (Ball Down) (kg) Contact Technical Contact Technical Contact Technical
Load Ball Material Carbon Chrome Stainless Steel Stainless Steel
Support Ball Material Carbon Chrome Stainless Steel Stainless Steel
Unit Housing Finish Carbon Steel Stainless Steel Carbon Steel
C (offset) N/a N/a N/a
Load To Fully Depress N/a N/a N/a
Flange Diameter (A) (mm) N/a N/a N/a
Inside Diameter (B) (mm) N/a N/a N/a
Clip Depth (C) (mm) N/a N/a N/a
Material Thickness (D) (mm) N/a N/a N/a
Product Weight (kg) 0.06 0.06 0.06
Dimension P - Thread Size N/a N/a N/a
Dim. A - Max Diameter (mm) 31 31 31
Dim. B - Working ht. of Ball (mm) 9.5 9.5 9.5
Dim. D - Body Diameter (mm) 24 24 24
Dim. E - Under Flange to Base (mm) N/a N/a N/a
Dim. F - Flange Thickness (mm) 3.8 3.8 3.8
Dim. F - Base Thickness (mm) N/a N/a N/a
Dim. G - Fixing Holes PCD (mm) N/a N/a N/a
Dim. H - Fixing Hole Size (mm) N/a N/a N/a
Dim. J - Major Flange Size (mm) N/a N/a N/a
Dim. K - Minor Flange Size (mm) N/a N/a N/a
Dim. L - Overall Height (mm) 21 21 21
Dim. N - Length of Thread (mm) N/a N/a N/a
Dim. O - Seating Hole (mm) N/a N/a N/a
Dim. R - Radius Under Flange N/a N/a N/a
Dim. X - Across Flats N/a N/a N/a

SPECIFICATION 8102213 8102215 8102216
Load Ball Diameter (mm) 22.2 22.2 22.2
Fixing Method Hole Hole Hole
Max Load (Ball Up) (kg) 180 180 180
Max Load (Ball Down) (kg) Contact Technical Contact Technical Contact Technical
Load Ball Material Carbon Chrome Stainless Steel Stainless Steel
Support Ball Material Carbon Chrome Stainless Steel Stainless Steel
Unit Housing Finish Carbon Steel Stainless Steel Carbon Steel
C (offset) N/a N/a N/a
Load To Fully Depress N/a N/a N/a
Flange Diameter (A) (mm) N/a N/a N/a
Inside Diameter (B) (mm) N/a N/a N/a
Clip Depth (C) (mm) N/a N/a N/a
Material Thickness (D) (mm) N/a N/a N/a
Product Weight (kg) 0.2 0.2 0.2
Dimension P - Thread Size N/a N/a N/a
Dim. A - Max Diameter (mm) 45 45 45
Dim. B - Working ht. of Ball (mm) 9.8 9.8 9.8
Dim. D - Body Diameter (mm) 36 36 36
Dim. E - Under Flange to Base (mm) N/a N/a N/a
Dim. F - Flange Thickness (mm) 4 4 4
Dim. F - Base Thickness (mm) N/a N/a N/a
Dim. G - Fixing Holes PCD (mm) N/a N/a N/a
Dim. H - Fixing Hole Size (mm) N/a N/a N/a
Dim. J - Major Flange Size (mm) N/a N/a N/a
Dim. K - Minor Flange Size (mm) N/a N/a N/a
Dim. L - Overall Height (mm) 30.5 30.5 30.5
Dim. N - Length of Thread (mm) N/a N/a N/a
Dim. O - Seating Hole (mm) N/a N/a N/a
Dim. R - Radius Under Flange N/a N/a N/a
Dim. X - Across Flats N/a N/a N/a

SPECIFICATION 8103013 8103015 8103016
Load Ball Diameter (mm) 30 30 30
Fixing Method Hole Hole Hole
Max Load (Ball Up) (kg) 350 200 350
Max Load (Ball Down) (kg) Contact Technical Contact Technical Contact Technical
Load Ball Material Carbon Chrome Stainless Steel Stainless Steel
Support Ball Material Carbon Chrome Stainless Steel Stainless Steel
Unit Housing Finish Carbon Steel Stainless Steel Carbon Steel
C (offset) N/a N/a N/a
Load To Fully Depress N/a N/a N/a
Flange Diameter (A) (mm) N/a N/a N/a
Inside Diameter (B) (mm) N/a N/a N/a
Clip Depth (C) (mm) N/a N/a N/a
Material Thickness (D) (mm) N/a N/a N/a
Product Weight (kg) 0.37 0.37 0.37
Dimension P - Thread Size N/a N/a N/a
Dim. A - Max Diameter (mm) 55 55 55
Dim. B - Working ht. of Ball (mm) 13.8 13.8 13.8
Dim. D - Body Diameter (mm) 45 45 45
Dim. E - Under Flange to Base (mm) N/a N/a N/a
Dim. F - Flange Thickness (mm) 5 5 5
Dim. F - Base Thickness (mm) N/a N/a N/a
Dim. G - Fixing Holes PCD (mm) N/a N/a N/a
Dim. H - Fixing Hole Size (mm) N/a N/a N/a
Dim. J - Major Flange Size (mm) N/a N/a N/a
Dim. K - Minor Flange Size (mm) N/a N/a N/a
Dim. L - Overall Height (mm) 36.8 36.8 36.8
Dim. N - Length of Thread (mm) N/a N/a N/a
Dim. O - Seating Hole (mm) N/a N/a N/a
Dim. R - Radius Under Flange N/a N/a N/a
Dim. X - Across Flats N/a N/a N/a

SPECIFICATION 8104513 8104515 8104516
Load Ball Diameter (mm) 44.5 44.5 44.5
Fixing Method Hole Hole Hole
Max Load (Ball Up) (kg) 600 300 600
Max Load (Ball Down) (kg) Contact Technical Contact Technical Contact Technical
Load Ball Material Carbon Chrome Stainless Steel Stainless Steel
Support Ball Material Carbon Chrome Stainless Steel Stainless Steel
Unit Housing Finish Carbon Steel Stainless Steel Carbon Steel
C (offset) N/a N/a N/a
Load To Fully Depress N/a N/a N/a
Flange Diameter (A) (mm) N/a N/a N/a
Inside Diameter (B) (mm) N/a N/a N/a
Clip Depth (C) (mm) N/a N/a N/a
Material Thickness (D) (mm) N/a N/a N/a
Product Weight (kg) 0.99 0.99 0.99
Dimension P - Thread Size N/a N/a N/a
Dim. A - Max Diameter (mm) 75 75 75
Dim. B - Working ht. of Ball (mm) 19 19 19
Dim. D - Body Diameter (mm) 62 62 62
Dim. E - Under Flange to Base (mm) N/a N/a N/a
Dim. F - Flange Thickness (mm) 4.5 4.5 4.5
Dim. F - Base Thickness (mm) N/a N/a N/a
Dim. G - Fixing Holes PCD (mm) N/a N/a N/a
Dim. H - Fixing Hole Size (mm) N/a N/a N/a
Dim. J - Major Flange Size (mm) N/a N/a N/a
Dim. K - Minor Flange Size (mm) N/a N/a N/a
Dim. L - Overall Height (mm) 53.5 53.5 53.5
Dim. N - Length of Thread (mm) N/a N/a N/a
Dim. O - Seating Hole (mm) N/a N/a N/a
Dim. R - Radius Under Flange N/a N/a N/a
Dim. X - Across Flats N/a N/a N/a
🔍
hd_810 side view diagrarm

NEED HELP SELECTING YOUR BALL TRANSFER UNIT?

SELECT YOUR BALL TRANSFER UNIT

Let us help you find the perfect Ball Transfer Unit to suit your application.

FIND OUT MORE

MATERIAL TYPES

Alwayse have developed a range of material types that can satisfy all applications.

FIND OUT MORE

LOAD RATING

Load ball ratings fall into Light, Medium or Heavy.

FIND OUT MORE

FIXING TYPES

Ball Transfer Units can be fixed using a variety of methods to fit a range of different surface materials.
