Alwayse Ball Transfer Unit Heavy Duty Series 888

The latest Heavy Duty Ball Transfer Unit in the series featuring a completely new design giving: 60% Reduction in friction, 50% Reduction in dB noise level in use, Improved Corrosion resistance, 10% Greater load ball exposure, Tapered body for easier installation, A revised dirt exit hole with a 30% increase in the open area.

CONTACT US

Interested in this product, get in touch...

ENQUIRE NOW
🔍

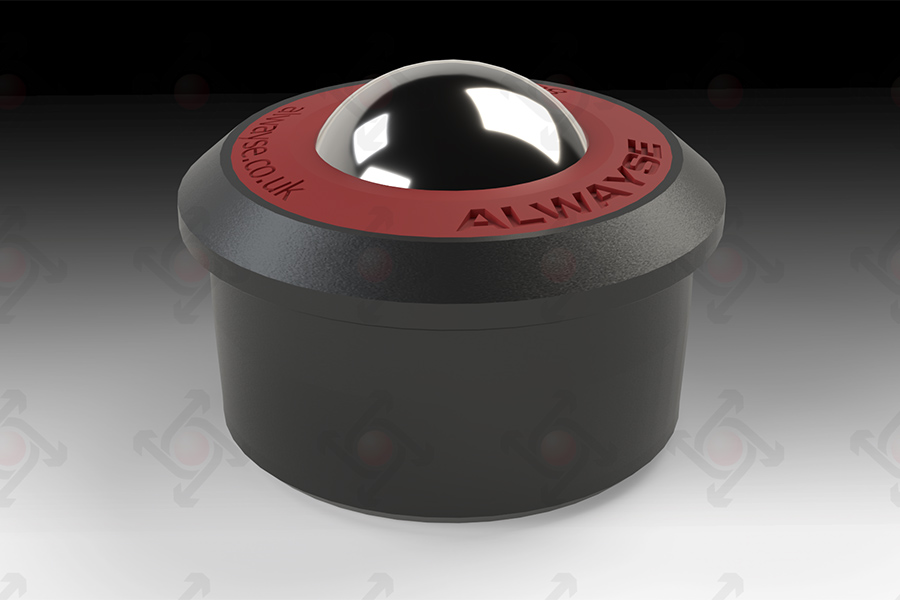

888-30-16 ball transfer unit with black casing
888-30-16 ball transfer unit bottom view

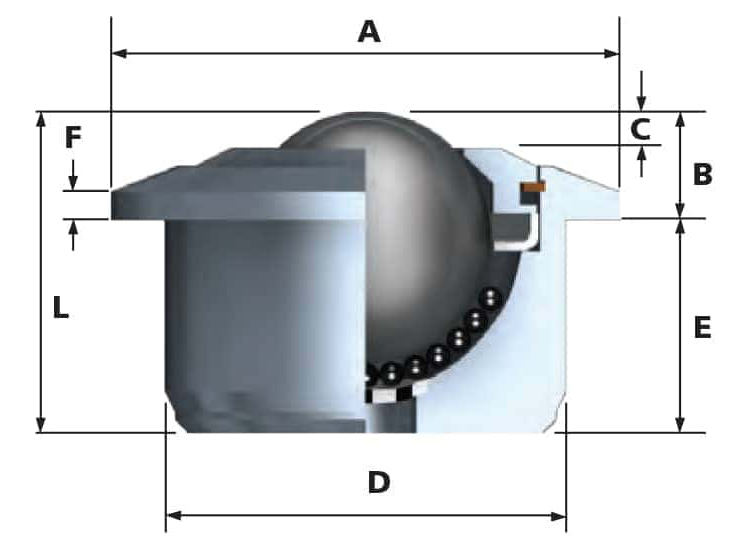

hd_805 ball transfer unit side view diagram

Material Types

No two applications are the same hence Alwayse have developed a range of material types that can satisfy all applications from standard to custom requirements.

Find out more

LOAD CAPACITY

LOAD BALL UP
350

LOAD BALL DOWN
Contact Technical

ADD TO COMPARE
COMPARE

LOAD CAPACITY

LOAD BALL UP
350

LOAD BALL DOWN
Contact Technical

ADD TO COMPARE
COMPARE

Specifications

SPECIFICATION 8883013 8883016
Load Ball Diameter (mm) 30 30
Fixing Method Hole Hole
Max Load (Ball Up) (kg) 350 350
Max Load (Ball Down) (kg) Contact Technical Contact Technical
Load Ball Material Carbon Chrome Stainless Steel
Support Ball Material Carbon Chrome Stainless Steel
Unit Housing Finish Carbon Steel Carbon Steel
C (offset) N/a N/a
Load To Fully Depress N/a N/a
Flange Diameter (A) (mm) N/a N/a
Inside Diameter (B) (mm) N/a N/a
Clip Depth (C) (mm) N/a N/a
Material Thickness (D) (mm) N/a N/a
Product Weight (kg) 0.36 0.36
Dimension P - Thread Size N/a N/a
Dim. A - Max Diameter (mm) 55 50
Dim. B - Working ht. of Ball (mm) 13.8 13.8
Dim. D - Body Diameter (mm) 45 45
Dim. E - Under Flange to Base (mm) N/a N/a
Dim. F - Base Thickness (mm) N/a N/a
Dim. G - Fixing Holes PCD (mm) N/a N/a
Dim. H - Fixing Hole Size (mm) N/a N/a
Dim. J - Major Flange Size (mm) N/a N/a
Dim. K - Minor Flange Size (mm) N/a N/a
Dim. L - Overall Height (mm) 34.8 34.8
Dim. N - Length of Thread (mm) N/a N/a
Dim. O - Seating Hole (mm) N/a N/a
Dim. R - Radius Under Flange N/a N/a
Dim. X - Across Flats N/a N/a
🔍
hd_805 ball transfer unit side view diagram
