Alwayse Ball Transfer Unit Hevi-Load Unit 2

High load capacity unit with top flange fixing.

CONTACT US

Interested in this product, get in touch...

ENQUIRE NOW
🔍

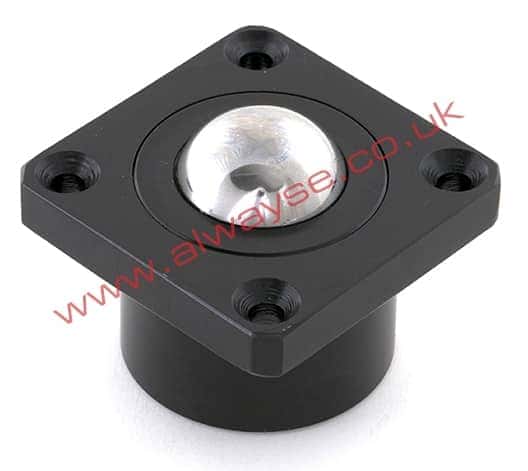

heavy load Alwayse ball transfer unit 7171-13

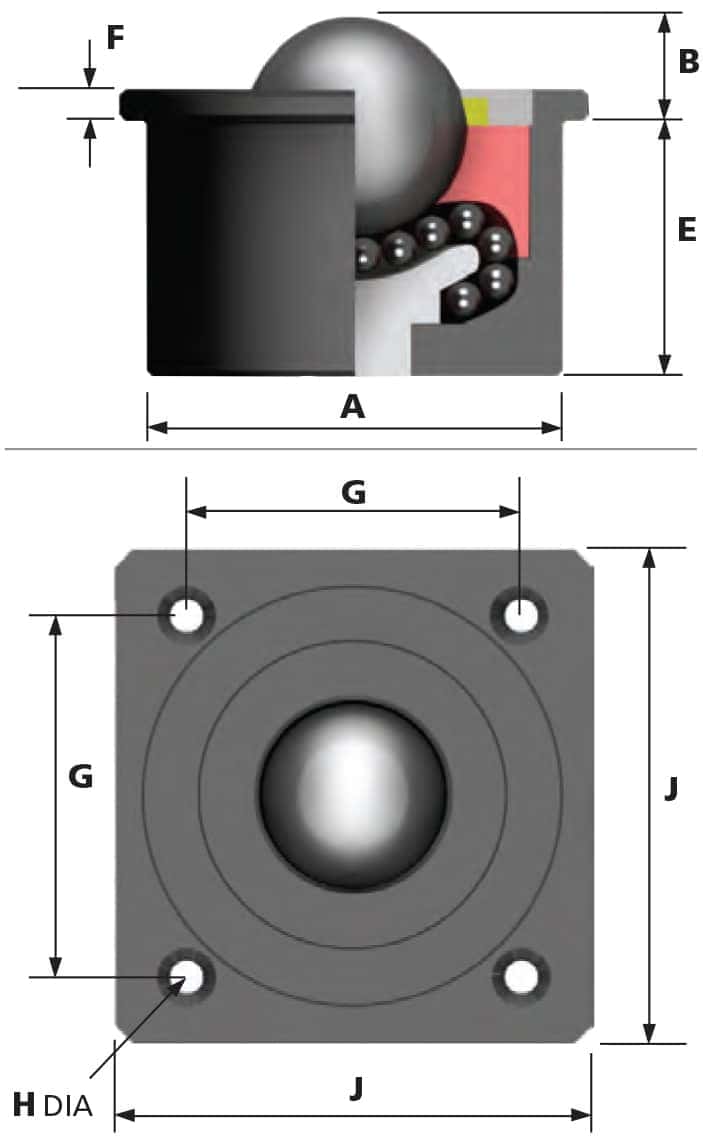

hevi-load_2 ball transfer unit side and top view diagrams

Material Types

No two applications are the same hence Alwayse have developed a range of material types that can satisfy all applications from standard to custom requirements.

Find out more

LOAD CAPACITY

LOAD BALL UP
320 - 2000

LOAD BALL DOWN
320 - 2000

ADD TO COMPARE
COMPARE

LOAD CAPACITY

LOAD BALL UP
215 - 1330

LOAD BALL DOWN
215 - 1330

ADD TO COMPARE
COMPARE

Specifications

SPECIFICATION 7125 712516
Load Ball Diameter (mm) 25.4 25.4
Fixing Method Flange Flange
Max Load (Ball Up) (kg) 320 215
Max Load (Ball Down) (kg) 320 215
Load Ball Material Carbon Chrome Stainless Steel
Support Ball Material Carbon Chrome Stainless Steel
Unit Housing Finish Electrophoretic Black Coated Electrophoretic Black Coated
C (offset) N/a N/a
Support Dynamic Load N/a N/a
Load To Fully Depress N/a N/a
Flange Diameter (A) (mm) N/a N/a
Inside Diameter (B) (mm) N/a N/a
Clip Depth (C) (mm) N/a N/a
Material Thickness (D) (mm) N/a N/a
Product Weight (kg) 0.746 0.746
Dimension P - Thread Size N/a N/a
Dim. A - Max Diameter (mm) 50.8 50.8
Dim. B - Working ht. of Ball (mm) 13 13
Dim. D - Body Diameter (mm) N/a N/a
Dim. E - Under Flange to Base (mm) N/a N/a
Dim. F - Flange Thickness (mm) 6.9 6.9
Dim. F - Base Thickness (mm) N/a N/a
Dim. G - Fixing Holes PCD (mm) 57.9 +/- 0.2 57.9 +/- 0.2
Dim. H - Fixing Hole Size (mm) 4 X 7.1 4 X 7.1
Dim. J - Major Flange Size (mm) 76.2 76.2
Dim. K - Minor Flange Size (mm) N/a N/a
Dim. L - Overall Height (mm) N/a N/a
Dim. N - Length of Thread (mm) N/a N/a
Dim. O - Seating Hole (mm) N/a N/a
Dim. R - Radius Under Flange N/a N/a
Dim. X - Across Flats N/a N/a

SPECIFICATION 7152 715216
Load Ball Diameter (mm) 38.1 38.1
Fixing Method Flange Flange
Max Load (Ball Up) (kg) 1000 670
Max Load (Ball Down) (kg) 1000 670
Load Ball Material Carbon Chrome Stainless Steel
Support Ball Material Carbon Chrome Stainless Steel
Unit Housing Finish Electrophoretic Black Coated Electrophoretic Black Coated
C (offset) N/a N/a
Support Dynamic Load N/a N/a
Load To Fully Depress N/a N/a
Flange Diameter (A) (mm) N/a N/a
Inside Diameter (B) (mm) N/a N/a
Clip Depth (C) (mm) N/a N/a
Material Thickness (D) (mm) N/a N/a
Product Weight (kg) 1.24 1.24
Dimension P - Thread Size N/a N/a
Dim. A - Max Diameter (mm) 60 60
Dim. B - Working ht. of Ball (mm) 25.4 25.4
Dim. D - Body Diameter (mm) N/a N/a
Dim. E - Under Flange to Base (mm) N/a N/a
Dim. F - Flange Thickness (mm) 12.4 12.4
Dim. F - Base Thickness (mm) N/a N/a
Dim. G - Fixing Holes PCD (mm) 57.9 +/- 0.2 57.9 +/- 0.2
Dim. H - Fixing Hole Size (mm) 4 X 7.1 4 X 7.1
Dim. J - Major Flange Size (mm) 76.2 76.2
Dim. K - Minor Flange Size (mm) N/a N/a
Dim. L - Overall Height (mm) N/a N/a
Dim. N - Length of Thread (mm) N/a N/a
Dim. O - Seating Hole (mm) N/a N/a
Dim. R - Radius Under Flange N/a N/a
Dim. X - Across Flats N/a N/a

SPECIFICATION 7171 717116
Load Ball Diameter (mm) 50.8 50.8
Fixing Method Flange Flange
Max Load (Ball Up) (kg) 2000 1330
Max Load (Ball Down) (kg) 2000 1330
Load Ball Material Carbon Chrome Stainless Steel
Support Ball Material Carbon Chrome Stainless Steel
Unit Housing Finish Electrophoretic Black Coated Electrophoretic Black Coated
C (offset) N/a N/a
Support Dynamic Load N/a N/a
Load To Fully Depress N/a N/a
Flange Diameter (A) (mm) N/a N/a
Inside Diameter (B) (mm) N/a N/a
Clip Depth (C) (mm) N/a N/a
Material Thickness (D) (mm) N/a N/a
Product Weight (kg) 6.14 6.14
Dimension P - Thread Size N/a N/a
Dim. A - Max Diameter (mm) 101.6 101.6
Dim. B - Working ht. of Ball (mm) 31.3 31.3
Dim. D - Body Diameter (mm) N/a N/a
Dim. E - Under Flange to Base (mm) N/a N/a
Dim. F - Flange Thickness (mm) 19 19
Dim. F - Base Thickness (mm) N/a N/a
Dim. G - Fixing Holes PCD (mm) 101.6 +/- 0.2 101.6 +/- 0.2
Dim. H - Fixing Hole Size (mm) 4 X 11 4 X 11
Dim. J - Major Flange Size (mm) 127 127
Dim. K - Minor Flange Size (mm) N/a N/a
Dim. L - Overall Height (mm) N/a N/a
Dim. N - Length of Thread (mm) N/a N/a
Dim. O - Seating Hole (mm) N/a N/a
Dim. R - Radius Under Flange N/a N/a
Dim. X - Across Flats N/a N/a
🔍
