Alwayse Ball Transfer Unit Hevi-Load Unit 3

High load capacity unit with top flange fixing.

CONTACT US

Interested in this product, get in touch...

ENQUIRE NOW
🔍

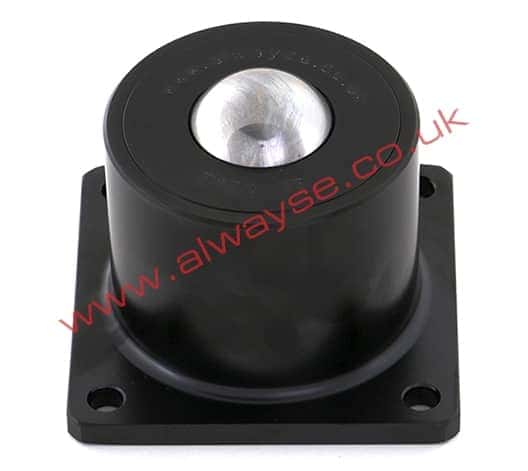

heavy load ball transfer unit from alwayse 7174-13
hevi-load_3 ball transfer unit side and top view diagrams

Material Types

No two applications are the same hence Alwayse have developed a range of material types that can satisfy all applications from standard to custom requirements.

Find out more

LOAD CAPACITY

LOAD BALL UP
250 - 4000

LOAD BALL DOWN
250 - 4000

ADD TO COMPARE
COMPARE

LOAD CAPACITY

LOAD BALL UP
135 - 2000

LOAD BALL DOWN
135 - 2000

ADD TO COMPARE
COMPARE

Specifications

SPECIFICATION 7122 712216 7123 712316
Load Ball Diameter (mm) 25.4 25.4 25.4 25.4
Fixing Method Base Base Base Base
Max Load (Ball Up) (kg) 250 135 320 215
Max Load (Ball Down) (kg) 250 135 320 215
Load Ball Material Carbon Chrome Stainless Steel Carbon Chrome Stainless Steel
Support Ball Material Carbon Chrome Stainless Steel Carbon Chrome Stainless Steel
Unit Housing Finish Electrophoretic Black Coated Electrophoretic Black Coated Electrophoretic Black Coated Electrophoretic Black Coated
C (offset) N/a N/a N/a N/a
Support Dynamic Load N/a N/a N/a N/a
Load To Fully Depress N/a N/a N/a N/a
Flange Diameter (A) (mm) N/a N/a N/a N/a
Inside Diameter (B) (mm) N/a N/a N/a N/a
Clip Depth (C) (mm) N/a N/a N/a N/a
Material Thickness (D) (mm) N/a N/a N/a N/a
Product Weight (kg) 0.459 0.459 0.735 0.735
Dimension P - Thread Size N/a N/a N/a N/a
Dim. A - Max Diameter (mm) 44.5 44.5 50.8 50.8
Dim. B - Working ht. of Ball (mm) 41.4 41.4 45.5 45.5
Dim. D - Body Diameter (mm) N/a N/a N/a N/a
Dim. E - Under Flange to Base (mm) N/a N/a N/a N/a
Dim. F - Flange Thickness (mm) N/a N/a N/a N/a
Dim. F - Base Thickness (mm) 4.8 4.8 6.3 6.3
Dim. G - Fixing Holes PCD (mm) 44.5 +/- 0.2 44.5 +/- 0.2 57.9 +/- 0.2 57.9 +/- 0.2
Dim. H - Fixing Hole Size (mm) 4 X 5.6 4 X 5.6 4 X 7.1 4 X 7.1
Dim. J - Major Flange Size (mm) 57.2 57.2 76.2 76.2
Dim. K - Minor Flange Size (mm) N/a N/a N/a N/a
Dim. L - Overall Height (mm) N/a N/a N/a N/a
Dim. N - Length of Thread (mm) N/a N/a N/a N/a
Dim. O - Seating Hole (mm) N/a N/a N/a N/a
Dim. R - Radius Under Flange N/a N/a N/a N/a
Dim. X - Across Flats N/a N/a N/a N/a

SPECIFICATION 7151 715116
Load Ball Diameter (mm) 38.1 38.1
Fixing Method Base Base
Max Load (Ball Up) (kg) 1000 670
Max Load (Ball Down) (kg) 1000 670
Load Ball Material Carbon Chrome Stainless Steel
Support Ball Material Carbon Chrome Stainless Steel
Unit Housing Finish Electrophoretic Black Coated Electrophoretic Black Coated
C (offset) N/a N/a
Support Dynamic Load N/a N/a
Load To Fully Depress N/a N/a
Flange Diameter (A) (mm) N/a N/a
Inside Diameter (B) (mm) N/a N/a
Clip Depth (C) (mm) N/a N/a
Material Thickness (D) (mm) N/a N/a
Product Weight (kg) 1.3 1.3
Dimension P - Thread Size N/a N/a
Dim. A - Max Diameter (mm) 60 60
Dim. B - Working ht. of Ball (mm) 62.2 62.2
Dim. D - Body Diameter (mm) N/a N/a
Dim. E - Under Flange to Base (mm) N/a N/a
Dim. F - Flange Thickness (mm) N/a N/a
Dim. F - Base Thickness (mm) 12.4 12.4
Dim. G - Fixing Holes PCD (mm) 57.9 +/- 0.2 57.9 +/- 0.2
Dim. H - Fixing Hole Size (mm) 4 X 7.1 4 X 7.1
Dim. J - Major Flange Size (mm) 76.2 76.2
Dim. K - Minor Flange Size (mm) N/a N/a
Dim. L - Overall Height (mm) N/a N/a
Dim. N - Length of Thread (mm) N/a N/a
Dim. O - Seating Hole (mm) N/a N/a
Dim. R - Radius Under Flange N/a N/a
Dim. X - Across Flats N/a N/a

SPECIFICATION 7174 717416
Load Ball Diameter (mm) 50.8 50.8
Fixing Method Base Base
Max Load (Ball Up) (kg) 2000 1330
Max Load (Ball Down) (kg) 2000 1330
Load Ball Material Carbon Chrome Stainless Steel
Support Ball Material Carbon Chrome Stainless Steel
Unit Housing Finish Electrophoretic Black Coated Electrophoretic Black Coated
C (offset) N/a N/a
Support Dynamic Load N/a N/a
Load To Fully Depress N/a N/a
Flange Diameter (A) (mm) N/a N/a
Inside Diameter (B) (mm) N/a N/a
Clip Depth (C) (mm) N/a N/a
Material Thickness (D) (mm) N/a N/a
Product Weight (kg) 5.52 5.52
Dimension P - Thread Size N/a N/a
Dim. A - Max Diameter (mm) 101.6 101.6
Dim. B - Working ht. of Ball (mm) 98.3 98.3
Dim. D - Body Diameter (mm) N/a N/a
Dim. E - Under Flange to Base (mm) N/a N/a
Dim. F - Flange Thickness (mm) N/a N/a
Dim. F - Base Thickness (mm) 9.6 9.6
Dim. G - Fixing Holes PCD (mm) 101.6 +/- 0.2 101.6 +/- 0.2
Dim. H - Fixing Hole Size (mm) 4 X 11 4 X 11
Dim. J - Major Flange Size (mm) 127 127
Dim. K - Minor Flange Size (mm) N/a N/a
Dim. L - Overall Height (mm) N/a N/a
Dim. N - Length of Thread (mm) N/a N/a
Dim. O - Seating Hole (mm) N/a N/a
Dim. R - Radius Under Flange N/a N/a
Dim. X - Across Flats N/a N/a

SPECIFICATION 7184 718416
Load Ball Diameter (mm) 76.2 76.2
Fixing Method Base Base
Max Load (Ball Up) (kg) 4000 2000
Max Load (Ball Down) (kg) 4000 2000
Load Ball Material Carbon Chrome Stainless Steel
Support Ball Material Carbon Chrome Stainless Steel
Unit Housing Finish Electrophoretic Black Coated Electrophoretic Black Coated
C (offset) N/a N/a
Support Dynamic Load N/a N/a
Load To Fully Depress N/a N/a
Flange Diameter (A) (mm) N/a N/a
Inside Diameter (B) (mm) N/a N/a
Clip Depth (C) (mm) N/a N/a
Material Thickness (D) (mm) N/a N/a
Product Weight (kg) 16.1 16.1
Dimension P - Thread Size N/a N/a
Dim. A - Max Diameter (mm) 160 160
Dim. B - Working ht. of Ball (mm) 145 145
Dim. D - Body Diameter (mm) N/a N/a
Dim. E - Under Flange to Base (mm) N/a N/a
Dim. F - Flange Thickness (mm) N/a N/a
Dim. F - Base Thickness (mm) 15 15
Dim. G - Fixing Holes PCD (mm) 145 +/- 0.2 145 +/- 0.2
Dim. H - Fixing Hole Size (mm) 4 X 13 4 X 13
Dim. J - Major Flange Size (mm) 175 175
Dim. K - Minor Flange Size (mm) N/a N/a
Dim. L - Overall Height (mm) N/a N/a
Dim. N - Length of Thread (mm) N/a N/a
Dim. O - Seating Hole (mm) N/a N/a
Dim. R - Radius Under Flange N/a N/a
Dim. X - Across Flats N/a N/a
🔍
hevi-load_3 ball transfer unit side and top view diagrams
