Alwayse Ball Transfer Unit Hevi-Load Unit 6

High load capacity compact unit designed for greater shock loading protection, with an interference fit.

CONTACT US

Interested in this product, get in touch...

ENQUIRE NOW
🔍

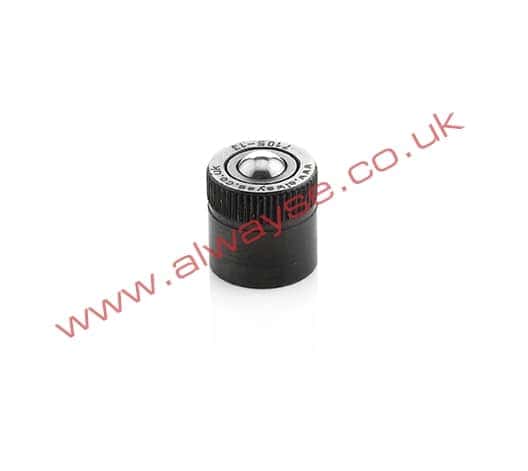

7105-13 black heavy load ball transfer unit

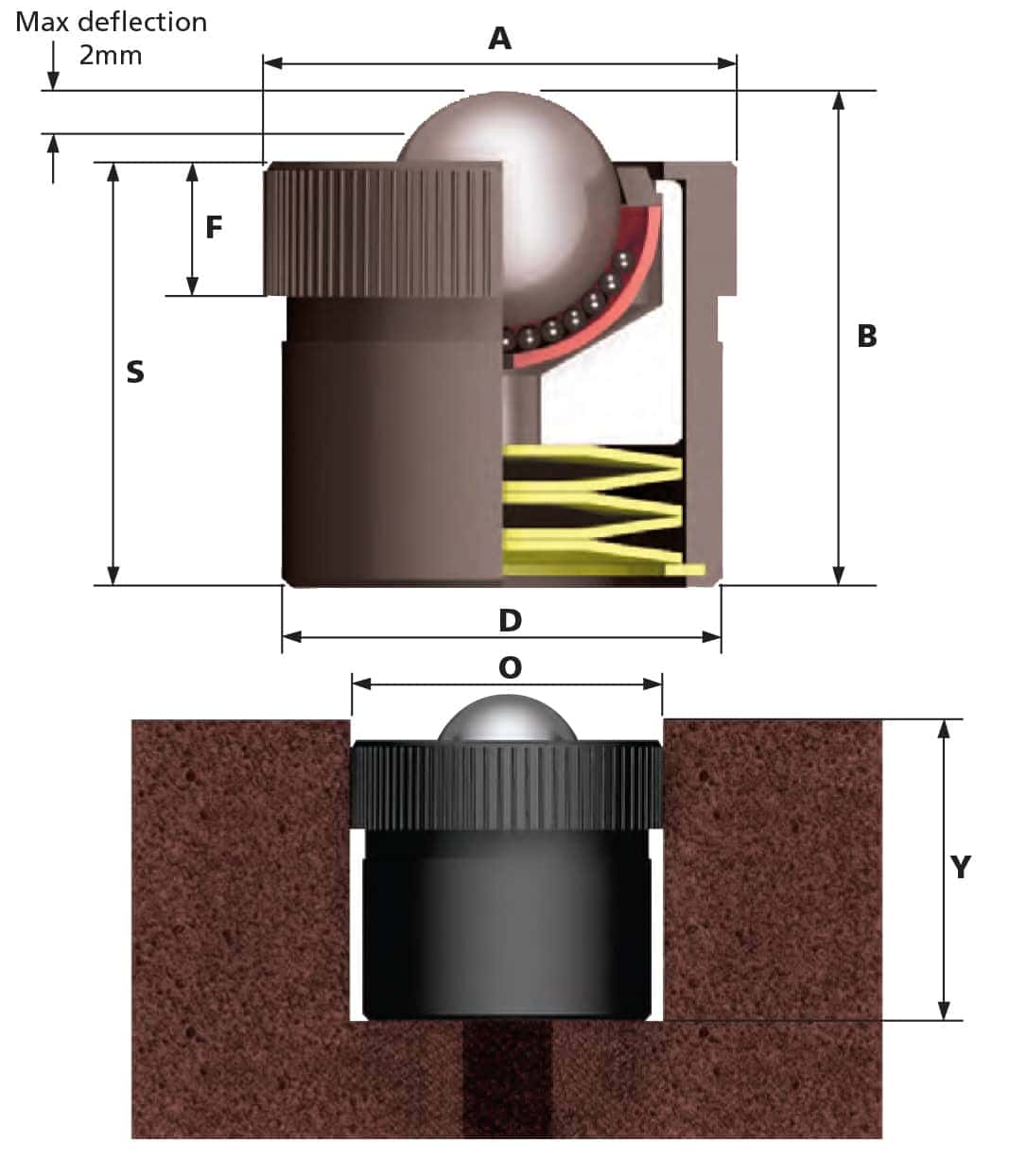

hevi-load_6 ball transfer unit side and top view diagrams

Material Types

No two applications are the same hence Alwayse have developed a range of material types that can satisfy all applications from standard to custom requirements.

Find out more

LOAD CAPACITY

LOAD BALL UP
n/a

LOAD BALL DOWN
n/a

ADD TO COMPARE
COMPARE

LOAD CAPACITY

LOAD BALL UP
n/a

LOAD BALL DOWN
n/a

ADD TO COMPARE
COMPARE

Specifications

SPECIFICATION 7105 710516
Load Ball Diameter (mm) 12.7 12.7
Fixing Method Interference Interference
Max Load (Ball Up) (kg) N/a N/a
Max Load (Ball Down) (kg) N/a N/a
Load Ball Material Carbon Chrome Stainless Steel
Support Ball Material Carbon Chrome Stainless Steel
Unit Housing Finish Electrophoretic Black Coated Electrophoretic Black Coated
C (offset) N/a N/a
Support Dynamic Load 25 25
Load To Fully Depress 40 40
Flange Diameter (A) (mm) N/a N/a
Inside Diameter (B) (mm) N/a N/a
Clip Depth (C) (mm) N/a N/a
Material Thickness (D) (mm) N/a N/a
Product Weight (kg) 0.078 0.078
Dimension P - Thread Size N/a N/a
Dim. A - Max Diameter (mm) 25.6 25.6
Dim. B - Working ht. of Ball (mm) 28.5 28.5
Dim. D - Body Diameter (mm) 25.4 25.4
Dim. E - Under Flange to Base (mm) N/a N/a
Dim. F - Base Thickness (mm) N/a N/a
Dim. G - Fixing Holes PCD (mm) N/a N/a
Dim. H - Fixing Hole Size (mm) N/a N/a
Dim. J - Major Flange Size (mm) N/a N/a
Dim. K - Minor Flange Size (mm) N/a N/a
Dim. L - Overall Height (mm) N/a N/a
Dim. N - Length of Thread (mm) N/a N/a
Dim. O - Seating Hole (mm) N/a N/a
Dim. R - Radius Under Flange N/a N/a
Dim. X - Across Flats N/a N/a
🔍
hevi-load_6 ball transfer unit side and top view diagrams

NEED HELP SELECTING YOUR BALL TRANSFER UNIT?

SELECT YOUR BALL TRANSFER UNIT

Let us help you find the perfect Ball Transfer Unit to suit your application.

FIND OUT MORE

MATERIAL TYPES

Alwayse have developed a range of material types that can satisfy all applications.

FIND OUT MORE

LOAD RATING

Load ball ratings fall into Light, Medium or Heavy.

FIND OUT MORE

FIXING TYPES

Ball Transfer Units can be fixed using a variety of methods to fit a range of different surface materials.

FIND OUT MORE

Similar Products

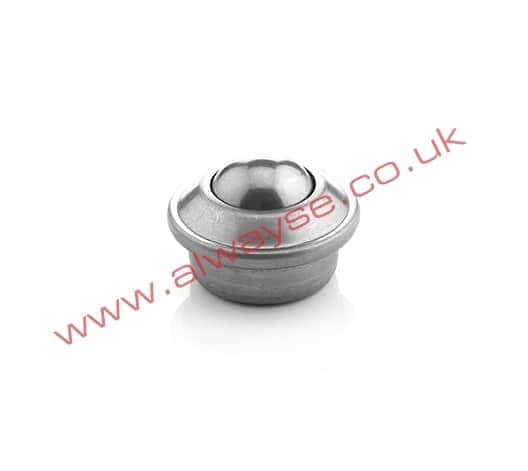

1007-15 Alwayse ball transfer unit
Alwayse Ball Transfer Unit Misc Unit 1007

Maximum Load Capacity up to 55kg

7105-13 black heavy load ball transfer unit
Alwayse Ball Transfer Unit Hevi-Load Unit 6

Maximum Load Capacity up to 25kg

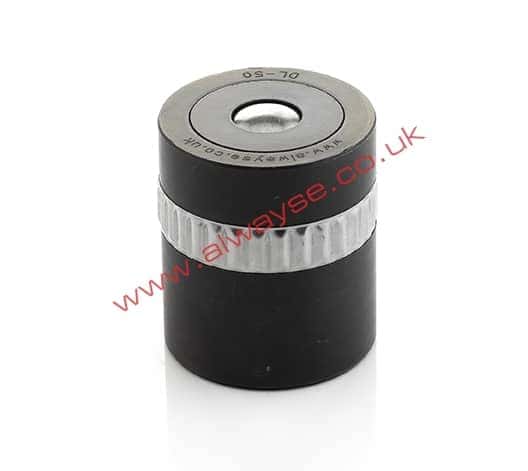

dl-50 alwayse ball transfer unit
