Alwayse Ball Transfer Unit HI-TECH 60252

High load capacity unit.

Dimensionally compatible with the Hevi-Load 7125 unit.

CONTACT US

Interested in this product, get in touch...

ENQUIRE NOW
🔍
6025-2-15 ball transfer unit with fixing holes
6025-2 ball transfer unit side and top view diagram

Material Types

No two applications are the same hence Alwayse have developed a range of material types that can satisfy all applications from standard to custom requirements.

Find out more

LOAD CAPACITY

LOAD BALL UP
320

LOAD BALL DOWN
n/a

ADD TO COMPARE
COMPARE

LOAD CAPACITY

LOAD BALL UP
240

LOAD BALL DOWN
n/a

ADD TO COMPARE
COMPARE

Specifications

SPECIFICATION 6025215 6025213
Load Ball Diameter (mm) 25.4 25.4
Fixing Method Flange Flange
Max Load (Ball Up) (kg) 240 320
Max Load (Ball Down) (kg) N/a N/a
Load Ball Material Stainless Steel Carbon Chrome
Support Ball Material Stainless Steel Carbon Chrome
Unit Housing Finish Nylon Nylon
C (offset) N/a N/a
Support Dynamic Load N/a N/a
Load To Fully Depress N/a N/a
Flange Diameter (A) (mm) N/a N/a
Inside Diameter (B) (mm) N/a N/a
Clip Depth (C) (mm) N/a N/a
Material Thickness (D) (mm) N/a N/a
Product Weight (kg) 0.26 0.26
Dimension P - Thread Size N/a N/a
Dim. A - Max Diameter (mm) 50.8 50.8
Dim. B - Working ht. of Ball (mm) 13 13
Dim. D - Body Diameter (mm) N/a N/a
Dim. E - Under Flange to Base (mm) 32 32
Dim. F - Flange Thickness (mm) 6.3 6.3
Dim. F - Base Thickness (mm) N/a N/a
Dim. G - Fixing Holes PCD (mm) N/a N/a
Dim. H - Fixing Hole Size (mm) N/a N/a
Dim. J - Major Flange Size (mm) 76 76
Dim. K - Minor Flange Size (mm) N/a N/a
Dim. L - Overall Height (mm) N/a N/a
Dim. N - Length of Thread (mm) N/a N/a
Dim. O - Seating Hole (mm) N/a N/a
Dim. R - Radius Under Flange N/a N/a
Dim. X - Across Flats N/a N/a
🔍

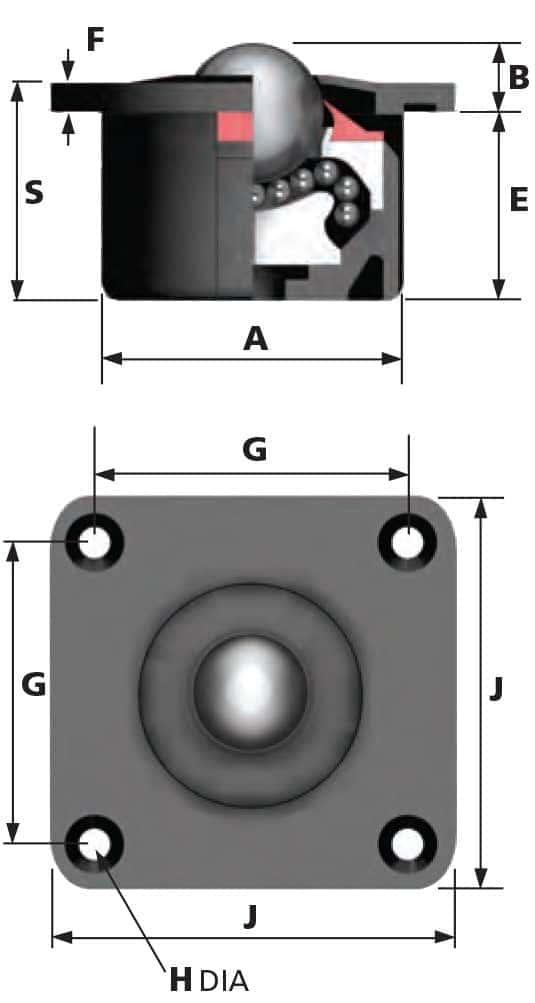

6025-2 ball transfer unit side and top view diagram
