Alwayse Ball Transfer Unit HI-TECH 60255

High load capacity unit.

Ideal for shock loading.

Stainless steel springs can be specified.

Compatible with Hevi-Load 7135, 7139 units.

CONTACT US

Interested in this product, get in touch...

ENQUIRE NOW
🔍
6025-5 ball transfer unit with spring
6025-5 ball transfer unit side view diagram

Material Types

No two applications are the same hence Alwayse have developed a range of material types that can satisfy all applications from standard to custom requirements.

Find out more

LOAD CAPACITY

LOAD BALL UP
n/a

LOAD BALL DOWN
n/a

ADD TO COMPARE
COMPARE

LOAD CAPACITY

LOAD BALL UP
n/a

LOAD BALL DOWN
n/a

ADD TO COMPARE
COMPARE

Specifications

SPECIFICATION 6025515A 6025513A 6025515B 6025513B 6025515C 6025513C 6025515D 6025513D 6025515E 6025513E 6025515F 6025513F 6025515G 6025513G 6025515H 6025513H
Load Ball Diameter (mm) 25.4 25.4 25.4 25.4 25.4 25.4 25.4 25.4 25.4 25.4 25.4 25.4 25.4 25.4 25.4 25.4
Fixing Method Thread Thread Thread Thread Thread Thread Thread Thread Thread Thread Thread Thread Thread Thread Thread Thread
Max Load (Ball Up) (kg) N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a
Max Load (Ball Down) (kg) N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a
Load Ball Material Stainless Steel Carbon Chrome Stainless Steel Carbon Chrome Stainless Steel Carbon Chrome Stainless Steel Carbon Chrome Stainless Steel Carbon Chrome Stainless Steel Carbon Chrome Stainless Steel Carbon Chrome Stainless Steel Carbon Chrome
Support Ball Material Stainless Steel Carbon Chrome Stainless Steel Carbon Chrome Stainless Steel Carbon Chrome Stainless Steel Carbon Chrome Stainless Steel Carbon Chrome Stainless Steel Carbon Chrome Stainless Steel Carbon Chrome Stainless Steel Carbon Chrome
Unit Housing Finish Nylon Nylon Nylon Nylon Nylon Nylon Nylon Nylon Nylon Nylon Nylon Nylon Nylon Nylon Nylon Nylon
C (offset) N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a
Support Dynamic Load 7 7 23 23 45 45 70 70 90 90 140 140 180 180 230 230
Load To Fully Depress 100 100 110 110 120 120 125 125 210 210 245 245 270 270 310 310
Flange Diameter (A) (mm) N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a
Inside Diameter (B) (mm) N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a
Clip Depth (C) (mm) N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a
Material Thickness (D) (mm) N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a
Product Weight (kg) 0.33 0.33 0.33 0.33 0.33 0.33 0.335 0.335 0.47 0.47 0.47 0.47 0.48 0.48 0.49 0.49
Dimension P - Thread Size N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a
Dim. A - Max Diameter (mm) 50.8 50.8 50.8 50.8 50.8 50.8 50.8 50.8 50.8 50.8 50.8 50.8 50.8 50.8 50.8 50.8
Dim. B - Working ht. of Ball (mm) 61.9 61.9 61.5 61.5 60.7 60.7 61.9 61.9 81 81 79.8 79.8 81 81 81 81
Dim. D - Body Diameter (mm) N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a
Dim. E - Under Flange to Base (mm) N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a
Dim. F - Flange Thickness (mm) N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a
Dim. F - Base Thickness (mm) N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a
Dim. G - Fixing Holes PCD (mm) N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a
Dim. H - Fixing Hole Size (mm) N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a
Dim. J - Major Flange Size (mm) N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a
Dim. K - Minor Flange Size (mm) N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a
Dim. L - Overall Height (mm) N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a
Dim. N - Length of Thread (mm) N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a
Dim. O - Seating Hole (mm) 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20
Dim. R - Radius Under Flange N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a
Dim. X - Across Flats N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a
🔍

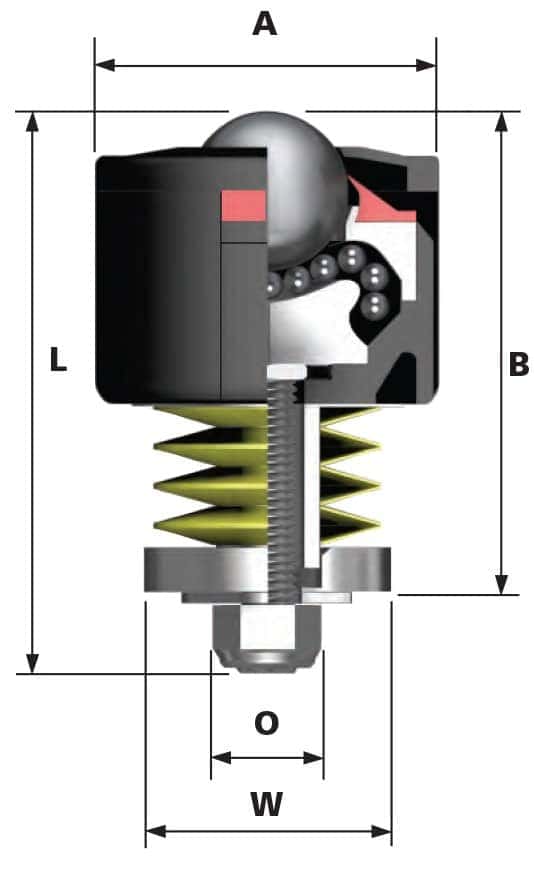

6025-5 ball transfer unit side view diagram
