Alwayse Ball Transfer Unit Large Top Flange

Low profile top flange fixing unit.

Integral plastic scraper seal to prevent debris ingress.

CONTACT US

Interested in this product, get in touch...

ENQUIRE NOW
🔍

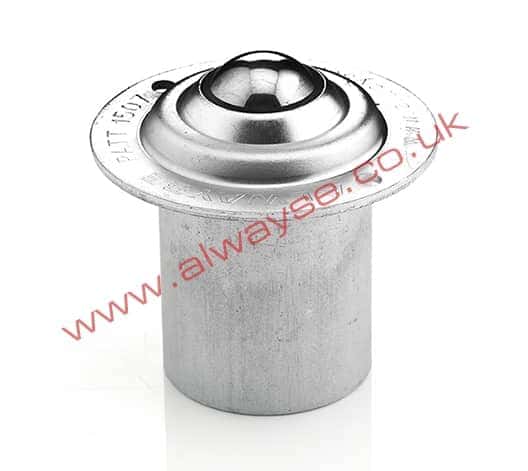

1507 ball transfer unit with a large top flange

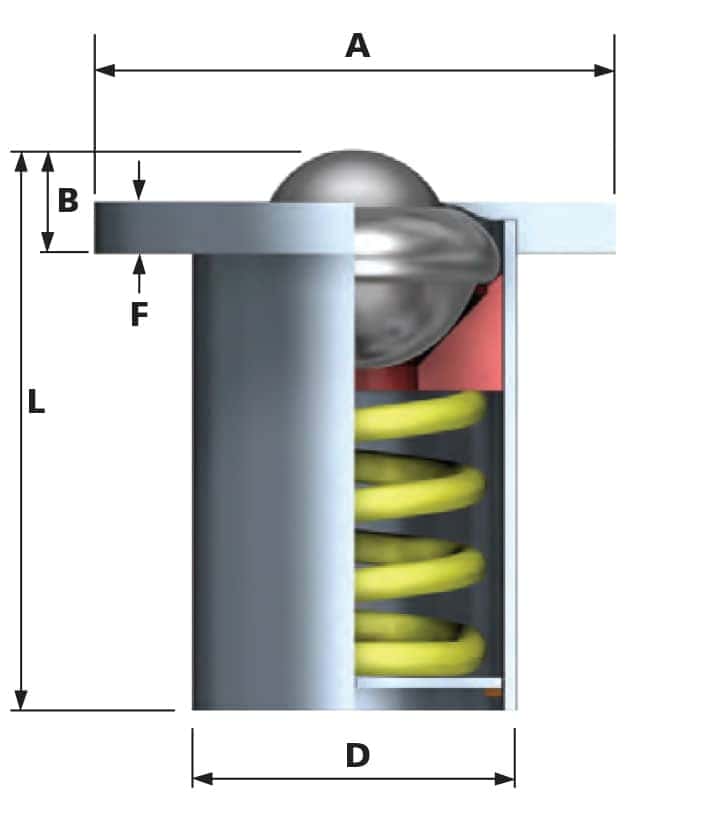

spring loaded ball transfer unit with large top flange

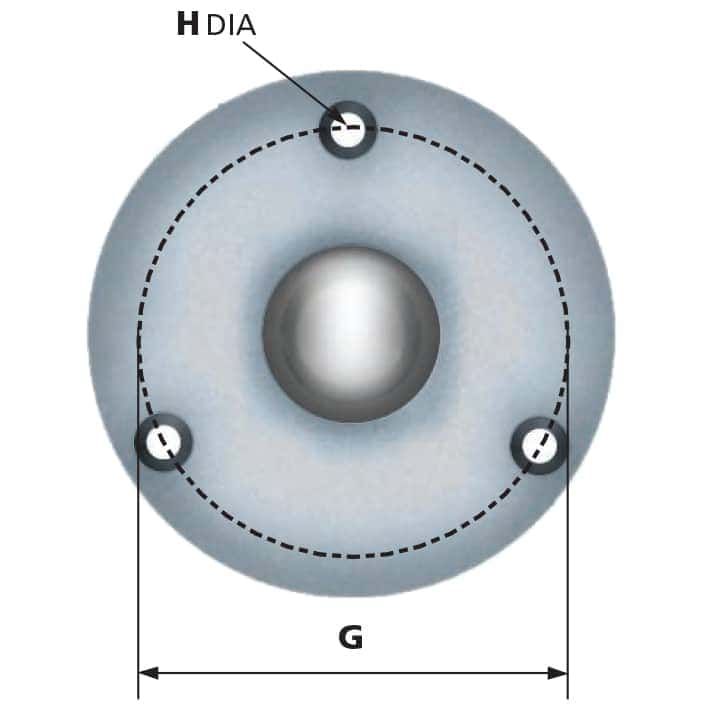

spring loaded ball transfer unit with large top flange diagram

Material Types

No two applications are the same hence Alwayse have developed a range of material types that can satisfy all applications from standard to custom requirements.

Find out more

LOAD CAPACITY

LOAD BALL UP
n/a

LOAD BALL DOWN
n/a

ADD TO COMPARE
COMPARE

LOAD CAPACITY

LOAD BALL UP
n/a

LOAD BALL DOWN
n/a

ADD TO COMPARE
COMPARE

Specifications

SPECIFICATION 30111300 30111600
Load Ball Diameter (mm) 19 19
Fixing Method Flange Flange
Max Load (Ball Up) (kg) N/a N/a
Max Load (Ball Down) (kg) N/a N/a
Load Ball Material Carbon Chrome Stainless Steel
Support Ball Material Carbon Chrome Stainless Steel
Unit Housing Finish Carbon Steel Carbon Steel
C (offset) N/a N/a
Support Dynamic Load 10 10
Load To Fully Depress 30 30
Flange Diameter (A) (mm) N/a N/a
Inside Diameter (B) (mm) N/a N/a
Clip Depth (C) (mm) N/a N/a
Material Thickness (D) (mm) N/a N/a
Product Weight (kg) 0.42 0.42
Dimension P - Thread Size N/a N/a
Dim. A - Max Diameter (mm) 66.6 66.6
Dim. B - Working ht. of Ball (mm) 11.4 11.4
Dim. D - Body Diameter (mm) 36.5 36.5
Dim. E - Under Flange to Base (mm) N/a N/a
Dim. F - Flange Thickness (mm) 7.9 7.9
Dim. F - Base Thickness (mm) N/a N/a
Dim. G - Fixing Holes PCD (mm) 50.8 50.8
Dim. H - Fixing Hole Size (mm) 3 X 7 3 X 7
Dim. J - Major Flange Size (mm) N/a N/a
Dim. K - Minor Flange Size (mm) N/a N/a
Dim. L - Overall Height (mm) 63 63
Dim. N - Length of Thread (mm) N/a N/a
Dim. O - Seating Hole (mm) N/a N/a
Dim. R - Radius Under Flange N/a N/a
Dim. X - Across Flats N/a N/a

SPECIFICATION 10181300 10181600 15071300 15071600
Load Ball Diameter (mm) 25.4 25.4 25.4 25.4
Fixing Method Flange Flange Flange Flange
Max Load (Ball Up) (kg) N/a N/a N/a N/a
Max Load (Ball Down) (kg) N/a N/a N/a N/a
Load Ball Material Carbon Chrome Stainless Steel Carbon Chrome Stainless Steel
Support Ball Material Carbon Chrome Stainless Steel Carbon Chrome Stainless Steel
Unit Housing Finish Carbon Steel Carbon Steel Carbon Steel Carbon Steel
C (offset) N/a N/a N/a N/a
Support Dynamic Load 35 35 50 50
Load To Fully Depress 100 100 130 130
Flange Diameter (A) (mm) N/a N/a N/a N/a
Inside Diameter (B) (mm) N/a N/a N/a N/a
Clip Depth (C) (mm) N/a N/a N/a N/a
Material Thickness (D) (mm) N/a N/a N/a N/a
Product Weight (kg) 0.57 0.57 0.4 0.4
Dimension P - Thread Size N/a N/a N/a N/a
Dim. A - Max Diameter (mm) 75 75 71.3 71.3
Dim. B - Working ht. of Ball (mm) 13.8 13.8 19.3 19.3
Dim. D - Body Diameter (mm) 44.5 44.5 44.5 44.5
Dim. E - Under Flange to Base (mm) N/a N/a N/a N/a
Dim. F - Flange Thickness (mm) 7.9 7.9 2 2
Dim. F - Base Thickness (mm) N/a N/a N/a N/a
Dim. G - Fixing Holes PCD (mm) 60.3 60.3 60.4 60.4
Dim. H - Fixing Hole Size (mm) 3 X 7 3 X 7 2 X 5.1 2 X 5.1
Dim. J - Major Flange Size (mm) N/a N/a N/a N/a
Dim. K - Minor Flange Size (mm) N/a N/a N/a N/a
Dim. L - Overall Height (mm) 67.1 67.1 72.2 72.2
Dim. N - Length of Thread (mm) N/a N/a N/a N/a
Dim. O - Seating Hole (mm) N/a N/a N/a N/a
Dim. R - Radius Under Flange N/a N/a N/a N/a
Dim. X - Across Flats N/a N/a N/a N/a

SPECIFICATION 10281300 10281600
Load Ball Diameter (mm) 31.7 31.7
Fixing Method Flange Flange
Max Load (Ball Up) (kg) N/a N/a
Max Load (Ball Down) (kg) N/a N/a
Load Ball Material Carbon Chrome Stainless Steel
Support Ball Material Carbon Chrome Stainless Steel
Unit Housing Finish Carbon Steel Carbon Steel
C (offset) N/a N/a
Support Dynamic Load 100 100
Load To Fully Depress 180 180
Flange Diameter (A) (mm) N/a N/a
Inside Diameter (B) (mm) N/a N/a
Clip Depth (C) (mm) N/a N/a
Material Thickness (D) (mm) N/a N/a
Product Weight (kg) 1.16 1.16
Dimension P - Thread Size N/a N/a
Dim. A - Max Diameter (mm) 89 89
Dim. B - Working ht. of Ball (mm) 17 17
Dim. D - Body Diameter (mm) 60 60
Dim. E - Under Flange to Base (mm) N/a N/a
Dim. F - Flange Thickness (mm) 9.5 9.5
Dim. F - Base Thickness (mm) N/a N/a
Dim. G - Fixing Holes PCD (mm) 73 73
Dim. H - Fixing Hole Size (mm) 3 X 7 3 X 7
Dim. J - Major Flange Size (mm) N/a N/a
Dim. K - Minor Flange Size (mm) N/a N/a
Dim. L - Overall Height (mm) 94.5 94.5
Dim. N - Length of Thread (mm) N/a N/a
Dim. O - Seating Hole (mm) N/a N/a
Dim. R - Radius Under Flange N/a N/a
Dim. X - Across Flats N/a N/a
🔍
spring loaded ball transfer unit with large top flange
spring loaded ball transfer unit with large top flange diagram
