Alwayse Ball Transfer Unit LOCKABALL

Lockable, machined steel unit, actioned with composite operating lever.

CONTACT US

Interested in this product, get in touch...

ENQUIRE NOW
🔍

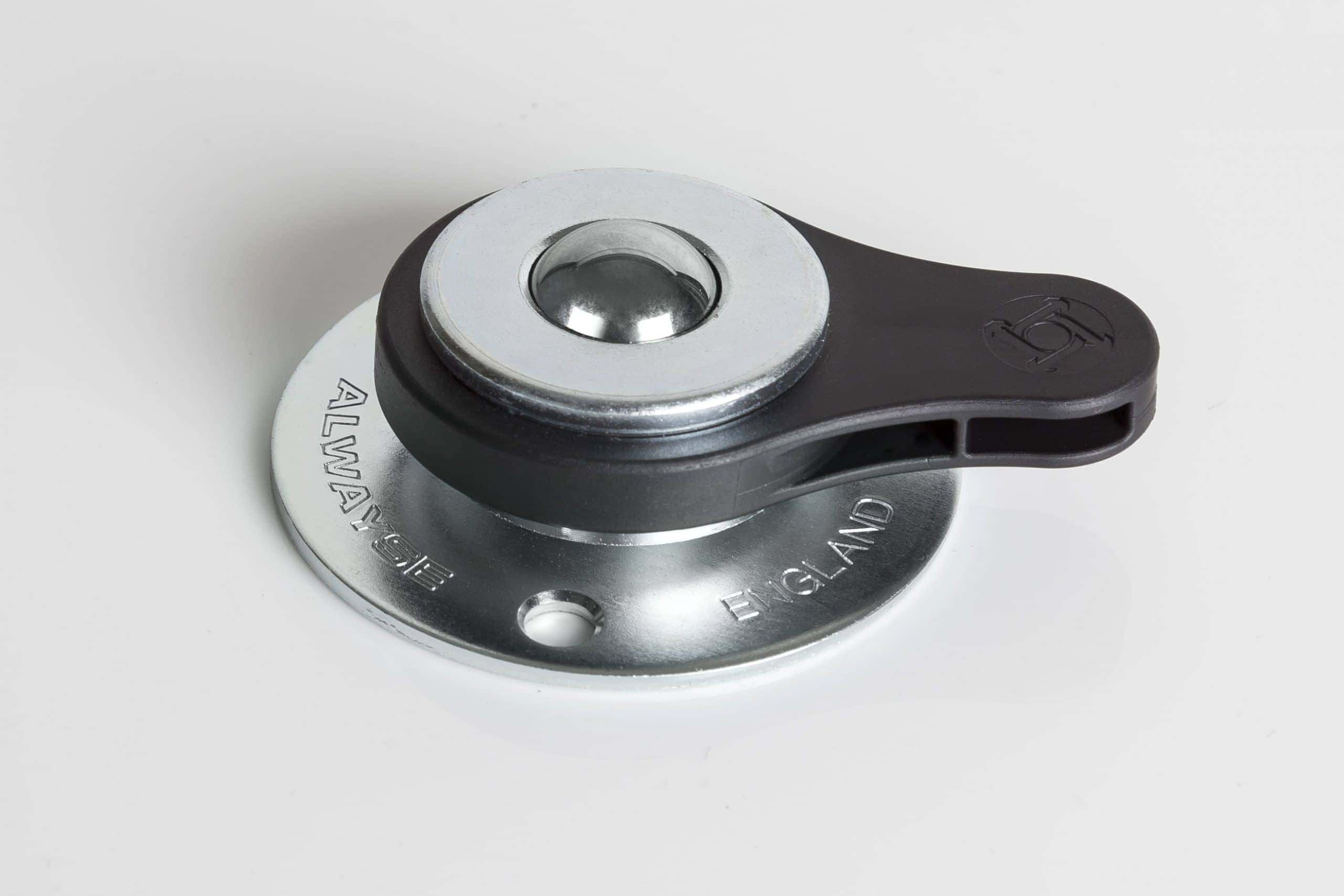

052016BR ball transfer unit

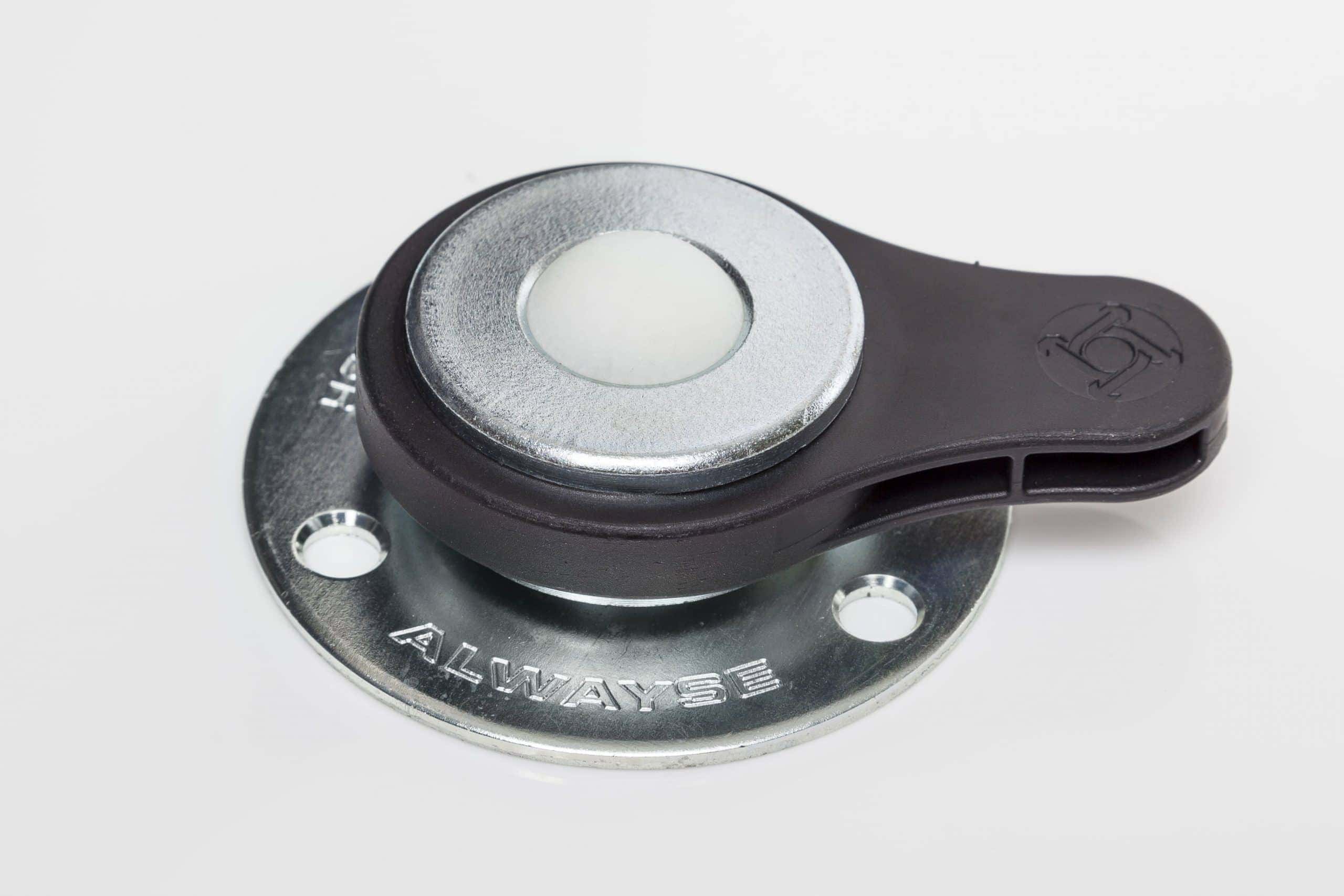

052014BR ball transfer unit

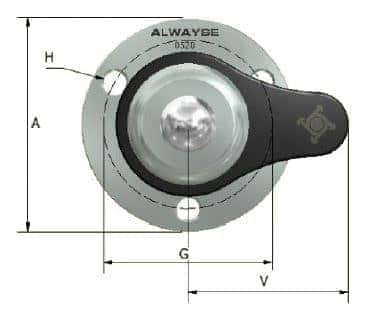

lockaball dimensions diagram

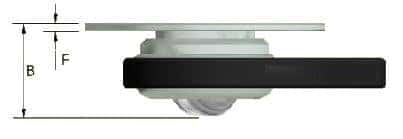

lockaball dimensions diagram side view

Material Types

No two applications are the same hence Alwayse have developed a range of material types that can satisfy all applications from standard to custom requirements.

Find out more

LOAD CAPACITY

LOAD BALL UP
20

LOAD BALL DOWN
15

ADD TO COMPARE
COMPARE

LOAD CAPACITY

LOAD BALL UP
120

LOAD BALL DOWN
80

ADD TO COMPARE
COMPARE

Specifications

SPECIFICATION 052016BR 052014BR
Load Ball Diameter (mm) 19 19
Fixing Method Base Base
Max Load (Ball Up) (kg) 120 20
Max Load (Ball Down) (kg) 80 15
Load Ball Material Stainless Steel Nylon
Support Ball Material Stainless Steel Stainless Steel
Unit Housing Finish Carbon Steel Carbon Steel
C (offset) N/a N/a
Support Dynamic Load N/a N/a
Load To Fully Depress N/a N/a
Flange Diameter (A) (mm) N/a N/a
Inside Diameter (B) (mm) N/a N/a
Clip Depth (C) (mm) N/a N/a
Material Thickness (D) (mm) N/a N/a
Product Weight (kg) 0.18 0.18
Dimension P - Thread Size N/a N/a
Dim. A - Max Diameter (mm) 63 63
Dim. B - Working ht. of Ball (mm) 25 25
Dim. D - Body Diameter (mm) N/a N/a
Dim. E - Under Flange to Base (mm) N/a N/a
Dim. F - Flange Thickness (mm) N/a N/a
Dim. F - Base Thickness (mm) 2 2
Dim. G - Fixing Holes PCD (mm) 50 50
Dim. H - Fixing Hole Size (mm) 6.5 6.5
Dim. J - Major Flange Size (mm) N/a N/a
Dim. K - Minor Flange Size (mm) N/a N/a
Dim. L - Overall Height (mm) N/a N/a
Dim. N - Length of Thread (mm) N/a N/a
Dim. O - Seating Hole (mm) N/a N/a
Dim. R - Radius Under Flange N/a N/a
Dim. X - Across Flats N/a N/a
🔍
lockaball dimensions diagram
lockaball dimensions diagram side view

NEED HELP SELECTING YOUR BALL TRANSFER UNIT?

SELECT YOUR BALL TRANSFER UNIT

Let us help you find the perfect Ball Transfer Unit to suit your application.

FIND OUT MORE

MATERIAL TYPES

Alwayse have developed a range of material types that can satisfy all applications.

FIND OUT MORE

LOAD RATING

Load ball ratings fall into Light, Medium or Heavy.

FIND OUT MORE

FIXING TYPES

Ball Transfer Units can be fixed using a variety of methods to fit a range of different surface materials.

FIND OUT MORE
