Alwayse Ball Transfer Unit Plain Body

Low profile plain body unit.

Integral plastic scraper seal to prevent debris ingress.

CONTACT US

Interested in this product, get in touch...

ENQUIRE NOW
🔍

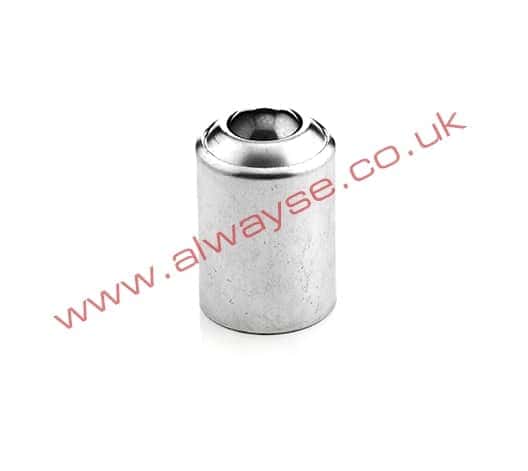

1016-13 ball transfer unit with a plain body
spring loaded ball transfer unit with plain body

Material Types

No two applications are the same hence Alwayse have developed a range of material types that can satisfy all applications from standard to custom requirements.

Find out more

LOAD CAPACITY

LOAD BALL UP
n/a

LOAD BALL DOWN
n/a

ADD TO COMPARE
COMPARE

LOAD CAPACITY

LOAD BALL UP
n/a

LOAD BALL DOWN
n/a

ADD TO COMPARE
COMPARE

Specifications

SPECIFICATION 30091300 30091600
Load Ball Diameter (mm) 19 19
Fixing Method Hole Hole
Max Load (Ball Up) (kg) N/a N/a
Max Load (Ball Down) (kg) N/a N/a
Load Ball Material Carbon Chrome Stainless Steel
Support Ball Material Carbon Chrome Stainless Steel
Unit Housing Finish Carbon Steel Carbon Steel
C (offset) N/a N/a
Support Dynamic Load 10 10
Load To Fully Depress 35 35
Flange Diameter (A) (mm) N/a N/a
Inside Diameter (B) (mm) N/a N/a
Clip Depth (C) (mm) N/a N/a
Material Thickness (D) (mm) N/a N/a
Product Weight (kg) 0.26 0.26
Dimension P - Thread Size N/a N/a
Dim. A - Max Diameter (mm) N/a N/a
Dim. B - Working ht. of Ball (mm) 9.5 9.5
Dim. D - Body Diameter (mm) 36.5 36.5
Dim. E - Under Flange to Base (mm) N/a N/a
Dim. F - Flange Thickness (mm) N/a N/a
Dim. F - Base Thickness (mm) N/a N/a
Dim. G - Fixing Holes PCD (mm) N/a N/a
Dim. H - Fixing Hole Size (mm) N/a N/a
Dim. J - Major Flange Size (mm) N/a N/a
Dim. K - Minor Flange Size (mm) N/a N/a
Dim. L - Overall Height (mm) 65.1 65.1
Dim. N - Length of Thread (mm) N/a N/a
Dim. O - Seating Hole (mm) N/a N/a
Dim. R - Radius Under Flange N/a N/a
Dim. X - Across Flats N/a N/a

SPECIFICATION 15081300 15081600
Load Ball Diameter (mm) 25.4 25.4
Fixing Method Hole Hole
Max Load (Ball Up) (kg) N/a N/a
Max Load (Ball Down) (kg) N/a N/a
Load Ball Material Carbon Chrome Stainless Steel
Support Ball Material Carbon Chrome Stainless Steel
Unit Housing Finish Carbon Steel Carbon Steel
C (offset) N/a N/a
Support Dynamic Load 50 50
Load To Fully Depress 130 130
Flange Diameter (A) (mm) N/a N/a
Inside Diameter (B) (mm) N/a N/a
Clip Depth (C) (mm) N/a N/a
Material Thickness (D) (mm) N/a N/a
Product Weight (kg) 0.38 0.38
Dimension P - Thread Size N/a N/a
Dim. A - Max Diameter (mm) N/a N/a
Dim. B - Working ht. of Ball (mm) 12.5 12.5
Dim. D - Body Diameter (mm) 44.5 44.5
Dim. E - Under Flange to Base (mm) N/a N/a
Dim. F - Flange Thickness (mm) N/a N/a
Dim. F - Base Thickness (mm) N/a N/a
Dim. G - Fixing Holes PCD (mm) N/a N/a
Dim. H - Fixing Hole Size (mm) N/a N/a
Dim. J - Major Flange Size (mm) N/a N/a
Dim. K - Minor Flange Size (mm) N/a N/a
Dim. L - Overall Height (mm) 72.9 72.9
Dim. N - Length of Thread (mm) N/a N/a
Dim. O - Seating Hole (mm) N/a N/a
Dim. R - Radius Under Flange N/a N/a
Dim. X - Across Flats N/a N/a

SPECIFICATION 20081300 20081600
Load Ball Diameter (mm) 39.7 39.7
Fixing Method Hole Hole
Max Load (Ball Up) (kg) N/a N/a
Max Load (Ball Down) (kg) N/a N/a
Load Ball Material Carbon Chrome Stainless Steel
Support Ball Material Carbon Chrome Stainless Steel
Unit Housing Finish Carbon Steel Carbon Steel
C (offset) N/a N/a
Support Dynamic Load 100 100
Load To Fully Depress 190 190
Flange Diameter (A) (mm) N/a N/a
Inside Diameter (B) (mm) N/a N/a
Clip Depth (C) (mm) N/a N/a
Material Thickness (D) (mm) N/a N/a
Product Weight (kg) 1.46 1.46
Dimension P - Thread Size N/a N/a
Dim. A - Max Diameter (mm) N/a N/a
Dim. B - Working ht. of Ball (mm) 12.7 12.7
Dim. D - Body Diameter (mm) 69.8 69.8
Dim. E - Under Flange to Base (mm) N/a N/a
Dim. F - Flange Thickness (mm) N/a N/a
Dim. F - Base Thickness (mm) N/a N/a
Dim. G - Fixing Holes PCD (mm) N/a N/a
Dim. H - Fixing Hole Size (mm) N/a N/a
Dim. J - Major Flange Size (mm) N/a N/a
Dim. K - Minor Flange Size (mm) N/a N/a
Dim. L - Overall Height (mm) 107.6 107.6
Dim. N - Length of Thread (mm) N/a N/a
Dim. O - Seating Hole (mm) N/a N/a
Dim. R - Radius Under Flange N/a N/a
Dim. X - Across Flats N/a N/a
🔍

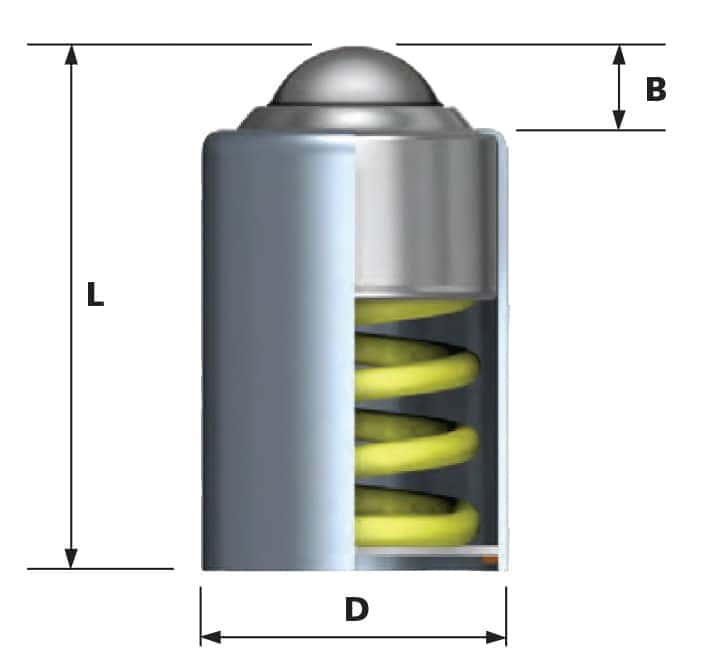

spring loaded ball transfer unit with plain body
