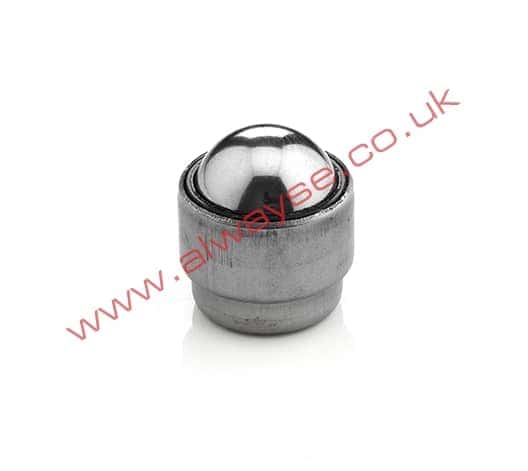

Alwayse Ball Transfer Unit Plug Fixing 1700

Plain body unit featuring dirt exit hole and plastic scraper seal for the removal of debris.

CONTACT US

Interested in this product, get in touch...

ENQUIRE NOW
🔍
1700-15 ball transfer unit

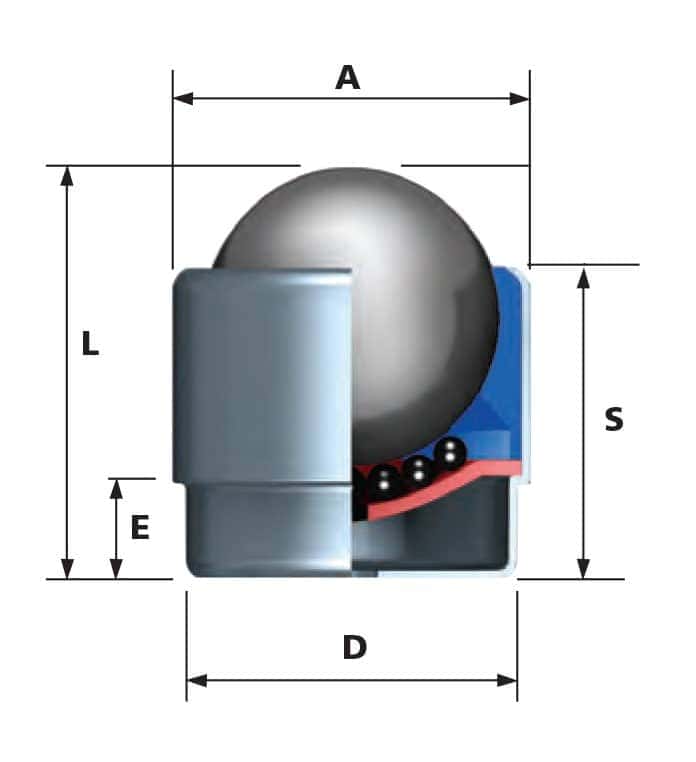

1700 side view dimensions

Material Types

No two applications are the same hence Alwayse have developed a range of material types that can satisfy all applications from standard to custom requirements.

Find out more

LOAD CAPACITY

LOAD BALL UP
50

LOAD BALL DOWN
25

ADD TO COMPARE
COMPARE

LOAD CAPACITY

LOAD BALL UP
20

LOAD BALL DOWN
10

ADD TO COMPARE
COMPARE

Specifications

SPECIFICATION 170013 170014
Load Ball Diameter (mm) 25.4 25.4
Fixing Method Plug Plug
Max Load (Ball Up) (kg) 50 20
Max Load (Ball Down) (kg) 25 10
Load Ball Material Carbon Chrome Nylon
Support Ball Material Carbon Chrome Stainless Steel
Unit Housing Finish Carbon Steel Carbon Steel
C (offset) N/a N/a
Support Dynamic Load N/a N/a
Load To Fully Depress N/a N/a
Flange Diameter (A) (mm) N/a N/a
Inside Diameter (B) (mm) N/a N/a
Clip Depth (C) (mm) N/a N/a
Material Thickness (D) (mm) N/a N/a
Product Weight (kg) 0.1 0.1
Dimension P - Thread Size N/a N/a
Dim. A - Max Diameter (mm) 30.5 30.5
Dim. B - Working ht. of Ball (mm) N/a N/a
Dim. D - Body Diameter (mm) 26.6 26.6
Dim. E - Under Flange to Base (mm) 7.8 7.8
Dim. F - Flange Thickness (mm) N/a N/a
Dim. F - Base Thickness (mm) N/a N/a
Dim. G - Fixing Holes PCD (mm) N/a N/a
Dim. H - Fixing Hole Size (mm) N/a N/a
Dim. J - Major Flange Size (mm) N/a N/a
Dim. K - Minor Flange Size (mm) N/a N/a
Dim. L - Overall Height (mm) 33.5 33.5
Dim. N - Length of Thread (mm) N/a N/a
Dim. O - Seating Hole (mm) N/a N/a
Dim. R - Radius Under Flange N/a N/a
Dim. X - Across Flats N/a N/a
🔍
