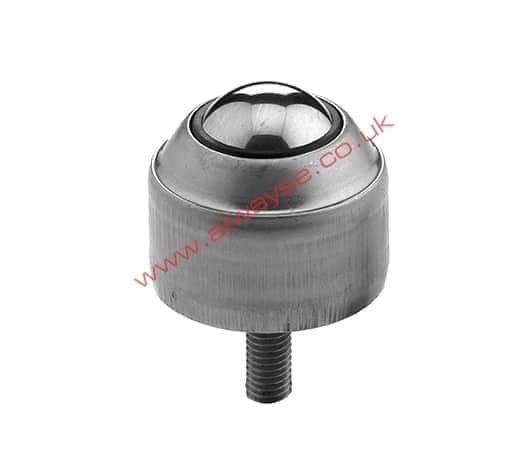

Alwayse Ball Transfer Unit Thread Fixing Unit 1501

High load capacity, Features integral plastic knife edge seal to minimise debris ingress and designed for a drilled hole fixing

CONTACT US

Interested in this product, get in touch...

Material Types

No two applications are the same hence Alwayse have developed a range of material types that can satisfy all applications from standard to custom requirements.

Find out more

LOAD CAPACITY

LOAD BALL UP
100

LOAD BALL DOWN
50

LOAD CAPACITY

LOAD BALL UP
25

LOAD BALL DOWN
5

LOAD CAPACITY

LOAD BALL UP
100

LOAD BALL DOWN
50

LOAD CAPACITY

LOAD BALL UP
100

LOAD BALL DOWN
50

Specifications

SPECIFICATION 15011318 15011328 15011418 15011428 15011518 15011528 15011618 15011628
Load Ball Diameter (mm) 25.4 25.4 25.4 25.4 25.4 25.4 25.4 25.4
Fixing Method Thread Thread Thread Thread Thread Thread Thread Thread
Max Load (Ball Up) (kg) 100 100 25 25 100 100 100 100
Max Load (Ball Down) (kg) 50 50 5 5 50 50 50 50
Load Ball Material Carbon Chrome Carbon Chrome Nylon Nylon Stainless Steel Stainless Steel Stainless Steel Stainless Steel
Support Ball Material Carbon Chrome Carbon Chrome Stainless Steel Stainless Steel Stainless Steel Stainless Steel Stainless Steel Stainless Steel
Unit Housing Finish Carbon Steel Carbon Steel Carbon Steel Carbon Steel Stainless Steel Stainless Steel Carbon Steel Carbon Steel
C (offset) N/a N/a N/a N/a N/a N/a N/a N/a
Support Dynamic Load N/a N/a N/a N/a N/a N/a N/a N/a
Load To Fully Depress N/a N/a N/a N/a N/a N/a N/a N/a
Flange Diameter (A) (mm) N/a N/a N/a N/a N/a N/a N/a N/a
Inside Diameter (B) (mm) N/a N/a N/a N/a N/a N/a N/a N/a
Clip Depth (C) (mm) N/a N/a N/a N/a N/a N/a N/a N/a
Material Thickness (D) (mm) N/a N/a N/a N/a N/a N/a N/a N/a
Product Weight (kg) 0.18 0.18 0.18 0.18 0.18 0.18 0.18 0.18

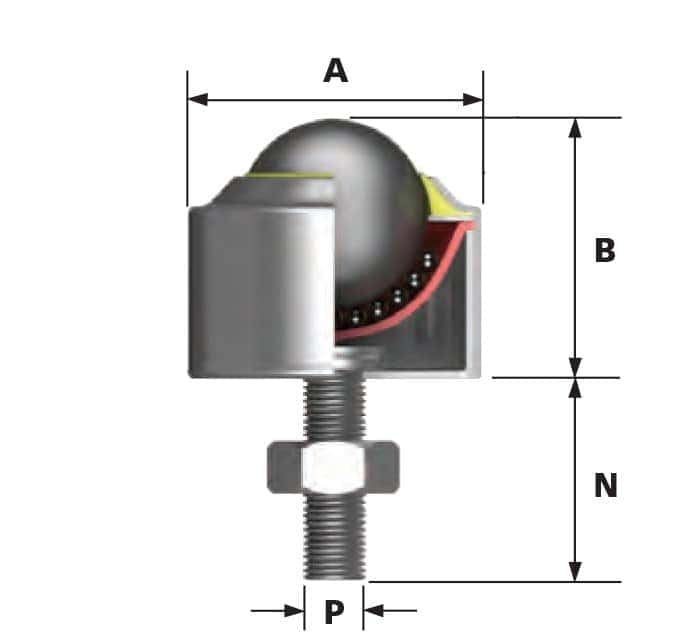

Dimension P - Thread Size M8 M8 M8 M8 M8 M8 M8 M8
Dim. A - Max Diameter (mm) 39.5 39.5 39.5 39.5 39.5 39.5 39.5 39.5
Dim. B - Working ht. of Ball (mm) 35.8 35.8 35.8 35.8 35.8 35.8 35.8 35.8
Dim. D - Body Diameter (mm) N/a N/a N/a N/a N/a N/a N/a N/a
Dim. E - Under Flange to Base (mm) N/a N/a N/a N/a N/a N/a N/a N/a
Dim. F - Flange Thickness (mm) N/a N/a N/a N/a N/a N/a N/a N/a
Dim. F - Base Thickness (mm) N/a N/a N/a N/a N/a N/a N/a N/a
Dim. G - Fixing Holes PCD (mm) N/a N/a N/a N/a N/a N/a N/a N/a
Dim. H - Fixing Hole Size (mm) N/a N/a N/a N/a N/a N/a N/a N/a
Dim. J - Major Flange Size (mm) N/a N/a N/a N/a N/a N/a N/a N/a
Dim. K - Minor Flange Size (mm) N/a N/a N/a N/a N/a N/a N/a N/a
Dim. L - Overall Height (mm) N/a N/a N/a N/a N/a N/a N/a N/a
Dim. N - Length of Thread (mm) 18 28 18 28 18 28 18 28
Dim. O - Seating Hole (mm) N/a N/a N/a N/a N/a N/a N/a N/a
Dim. R - Radius Under Flange N/a N/a N/a N/a N/a N/a N/a N/a
Dim. X - Across Flats N/a N/a N/a N/a N/a N/a N/a N/a
