Alwayse Ball Transfer Unit Thread Fixing Unit 3002

Features large support area with greater stability, designed for a drilled hole fixing.

Available in various thread lengths

CONTACT US

Interested in this product, get in touch...

ENQUIRE NOW
🔍
3002-15-25 ball transfer unit with external thread

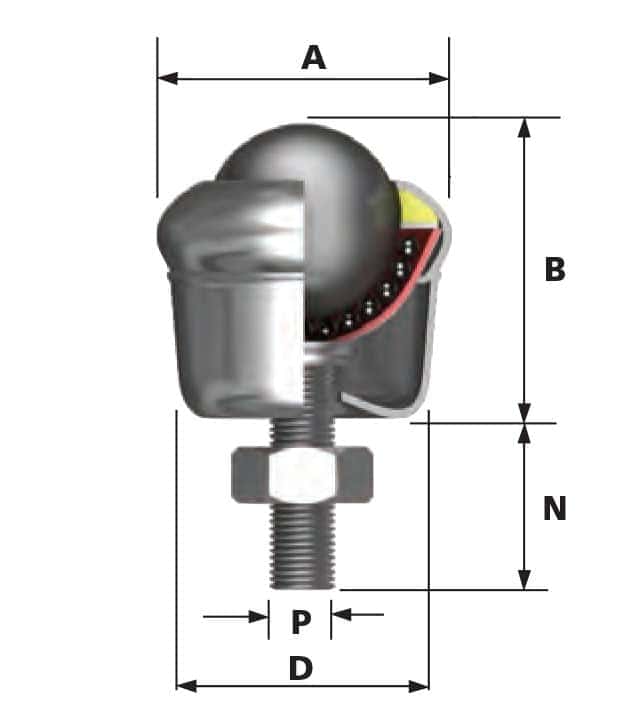

3002 ball transfer unit side view diagram

Material Types

No two applications are the same hence Alwayse have developed a range of material types that can satisfy all applications from standard to custom requirements.

Find out more

LOAD CAPACITY

LOAD BALL UP
20 - 25

LOAD BALL DOWN
10

ADD TO COMPARE
COMPARE

LOAD CAPACITY

LOAD BALL UP
20 - 25

LOAD BALL DOWN
10

ADD TO COMPARE
COMPARE

LOAD CAPACITY

LOAD BALL UP
25

LOAD BALL DOWN
10

ADD TO COMPARE
COMPARE

LOAD CAPACITY

LOAD BALL UP
25

LOAD BALL DOWN
10

ADD TO COMPARE
COMPARE

Specifications

SPECIFICATION 30021320 30021330 30021345 30021420 30021430 30021445 30021520 30021530 30021545 30021620 30021630 30021645
Load Ball Diameter (mm) 19 19 19 19 19 19 19 19 19 19 19 19
Fixing Method Thread Thread Thread Thread Thread Thread Thread Thread Thread Thread Thread Thread
Max Load (Ball Up) (kg) 25 20 20 20 20 25 25 25 25 25 25 25
Max Load (Ball Down) (kg) 10 10 10 10 10 10 10 10 10 10 10 10
Load Ball Material Carbon Chrome Carbon Chrome Carbon Chrome Nylon Nylon Nylon Stainless Steel Stainless Steel Stainless Steel Stainless Steel Stainless Steel Stainless Steel
Support Ball Material Carbon Chrome Carbon Chrome Carbon Chrome Stainless Steel Stainless Steel Stainless Steel Stainless Steel Stainless Steel Stainless Steel Stainless Steel Stainless Steel Stainless Steel
Unit Housing Finish Carbon Steel Carbon Steel Carbon Steel Carbon Steel Carbon Steel Carbon Steel Stainless Steel Stainless Steel Stainless Steel Carbon Steel Carbon Steel Carbon Steel
C (offset) N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a
Support Dynamic Load N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a
Load To Fully Depress N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a
Flange Diameter (A) (mm) N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a
Inside Diameter (B) (mm) N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a
Clip Depth (C) (mm) N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a
Material Thickness (D) (mm) N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a
Product Weight (kg) 0.08 0.08 0.08 0.08 0.08 0.08 0.08 0.08 0.08 0.08 0.08 0.08
Dimension P - Thread Size M8 M8 M8 M8 M8 M8 M8 M8 M8 M8 M8 M8
Dim. A - Max Diameter (mm) 32.1 32.1 32.1 32.1 32.1 32.1 32.1 32.1 32.1 32.1 32.1 32.1
Dim. B - Working ht. of Ball (mm) 30.2 30.2 30.2 30.2 30.2 30.2 30.2 30.2 30.2 30.2 30.2 30.2
Dim. D - Body Diameter (mm) 25.4 25.4 25.4 25.4 25.4 25.4 25.4 25.4 25.4 25.4 25.4 25.4
Dim. E - Under Flange to Base (mm) N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a
Dim. F - Flange Thickness (mm) N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a
Dim. F - Base Thickness (mm) N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a
Dim. G - Fixing Holes PCD (mm) N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a
Dim. H - Fixing Hole Size (mm) N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a
Dim. J - Major Flange Size (mm) N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a
Dim. K - Minor Flange Size (mm) N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a
Dim. L - Overall Height (mm) N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a
Dim. N - Length of Thread (mm) 20 30 45 20 30 45 20 30 45 20 30 45
Dim. O - Seating Hole (mm) N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a
Dim. R - Radius Under Flange N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a
Dim. X - Across Flats N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a N/a
🔍
3002 ball transfer unit side view diagram
