Alwayse Ball Transfer Unit Tube Fixing 3004

Tube fixing is achieved by pushing the spring washer into a suitably sized tube and turning the unit to lock in place.

3 spring washer sizes available

CONTACT US

Interested in this product, get in touch...

ENQUIRE NOW
🔍
1002-13 ball transfer unit with washer clips
3004 ball transfer unit side view diagram

Material Types

No two applications are the same hence Alwayse have developed a range of material types that can satisfy all applications from standard to custom requirements.

Find out more

LOAD CAPACITY

LOAD BALL UP
25

LOAD BALL DOWN
10

ADD TO COMPARE
COMPARE

LOAD CAPACITY

LOAD BALL UP
25

LOAD BALL DOWN
10

ADD TO COMPARE
COMPARE

Specifications

SPECIFICATION 3004134075 3004164075
Load Ball Diameter (mm) 19 19
Fixing Method Tube Tube
Max Load (Ball Up) (kg) 25 25
Max Load (Ball Down) (kg) 10 10
Load Ball Material Carbon Chrome Stainless Steel
Support Ball Material Carbon Chrome Stainless Steel
Unit Housing Finish Carbon Steel Carbon Steel
C (offset) N/a N/a
Support Dynamic Load N/a N/a
Load To Fully Depress N/a N/a
Flange Diameter (A) (mm) N/a N/a
Inside Diameter (B) (mm) N/a N/a
Clip Depth (C) (mm) N/a N/a
Material Thickness (D) (mm) N/a N/a
Product Weight (kg) 0.06 0.06
Dimension P - Thread Size M6 M6
Dim. A - Max Diameter (mm) 32.1 32.1
Dim. B - Working ht. of Ball (mm) 24.6 24.6
Dim. D - Body Diameter (mm) N/a N/a
Dim. E - Under Flange to Base (mm) N/a N/a
Dim. F - Flange Thickness (mm) N/a N/a
Dim. F - Base Thickness (mm) N/a N/a
Dim. G - Fixing Holes PCD (mm) N/a N/a
Dim. H - Fixing Hole Size (mm) N/a N/a
Dim. J - Major Flange Size (mm) N/a N/a
Dim. K - Minor Flange Size (mm) N/a N/a
Dim. L - Overall Height (mm) N/a N/a
Dim. N - Length of Thread (mm) 40 40
Dim. O - Seating Hole (mm) N/a N/a
Dim. R - Radius Under Flange N/a N/a
Dim. X - Across Flats N/a N/a
🔍

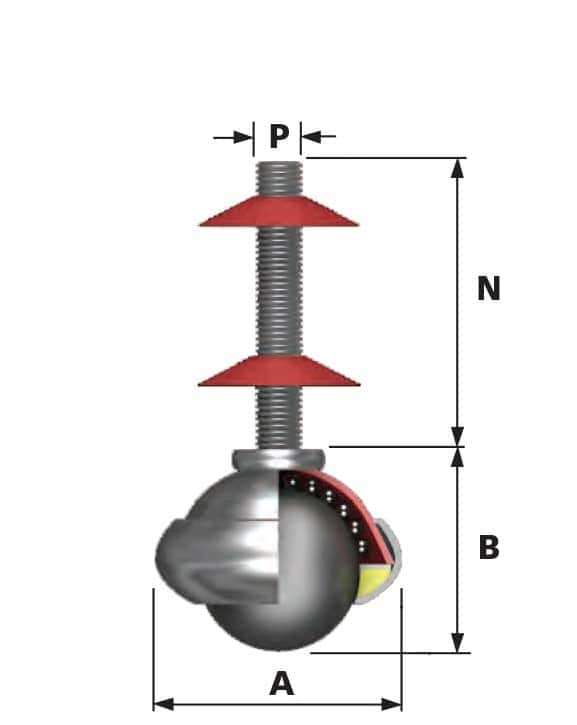

3004 ball transfer unit side view diagram
