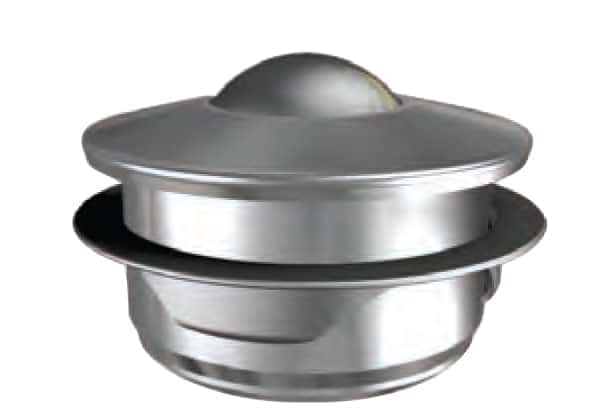

Alwayse CL14 Fixing Clip

Allows fixing from either the top side of a ball deck or the underside where CL11 is not suitable.

For deck thicknesses of up to 4mm.

CL14-15 for use with 515-0,515-4 and 810-15
CL14-22 for use with 522-0,522-4, 800-22 and 810-22
CL14-30 for use with 530-0, 530-4, 800-30,805-30,806-30,807-30 and 888-30 CL14-45 for use with 545-0,545-4, 800-45 and 810-45

CONTACT US

Interested in this product, get in touch...

Material Types

No two applications are the same hence Alwayse have developed a range of material types that can satisfy all applications from standard to custom requirements.

Find out more

Specifications

SPECIFICATION CL1415 CL1422 CL1430 CL1445
Load Ball Diameter (mm) 0 0 0 0
Fixing Method Clip Clip Clip Clip
Max Load (Ball Up) (kg) N/a N/a N/a N/a
Max Load (Ball Down) (kg) N/a N/a N/a N/a
Load Ball Material N/a N/a N/a N/a
Support Ball Material N/a N/a N/a N/a
Unit Housing Finish Carbon Steel Carbon Steel Carbon Steel Carbon Steel
C (offset) N/a N/a N/a N/a
Support Dynamic Load N/a N/a N/a N/a
Load To Fully Depress N/a N/a N/a N/a

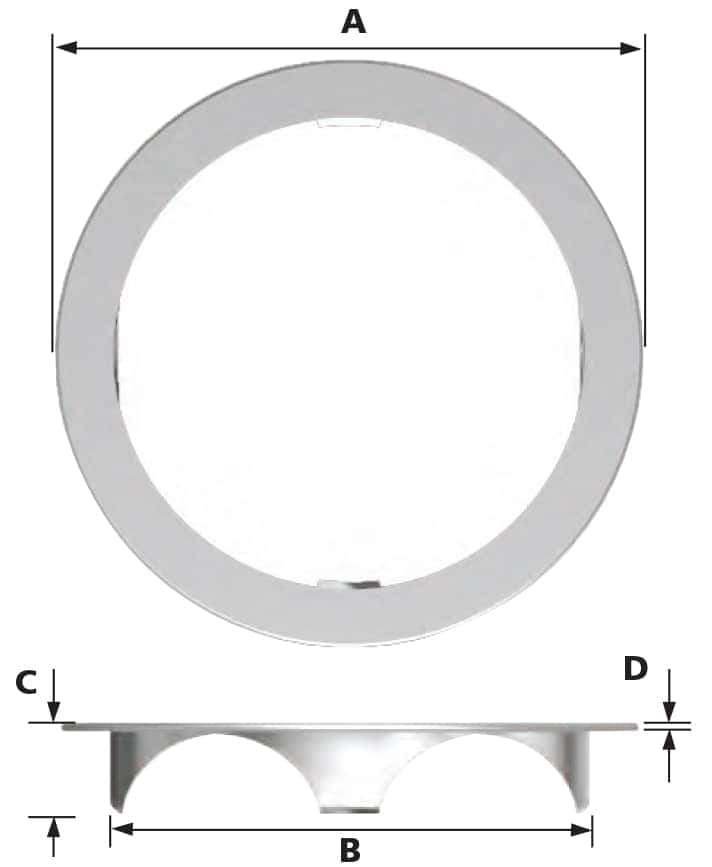

Flange Diameter (A) (mm) 30.9 44.5 54.9 74
Inside Diameter (B) (mm) 24.7 36.7 45.7 62.7
Clip Depth (C) (mm) 6 7 7 7
Material Thickness (D) (mm) 0.3 0.3 0.3 0.3
Product Weight (kg) N/a N/a N/a N/a
Dimension P - Thread Size N/a N/a N/a N/a
Dim. A - Max Diameter (mm) N/a N/a N/a N/a
Dim. B - Working ht. of Ball (mm) N/a N/a N/a N/a
Dim. D - Body Diameter (mm) N/a N/a N/a N/a
Dim. E - Under Flange to Base (mm) 0.3 0.3 0.3 0.3
Dim. F - Flange Thickness (mm) N/a N/a N/a N/a
Dim. F - Base Thickness (mm) N/a N/a N/a N/a
Dim. G - Fixing Holes PCD (mm) N/a N/a N/a N/a
Dim. H - Fixing Hole Size (mm) N/a N/a N/a N/a
Dim. J - Major Flange Size (mm) N/a N/a N/a N/a
Dim. K - Minor Flange Size (mm) N/a N/a N/a N/a
Dim. L - Overall Height (mm) N/a N/a N/a N/a
Dim. N - Length of Thread (mm) N/a N/a N/a N/a
Dim. O - Seating Hole (mm) N/a N/a N/a N/a
Dim. R - Radius Under Flange N/a N/a N/a N/a
Dim. X - Across Flats N/a N/a N/a N/a
