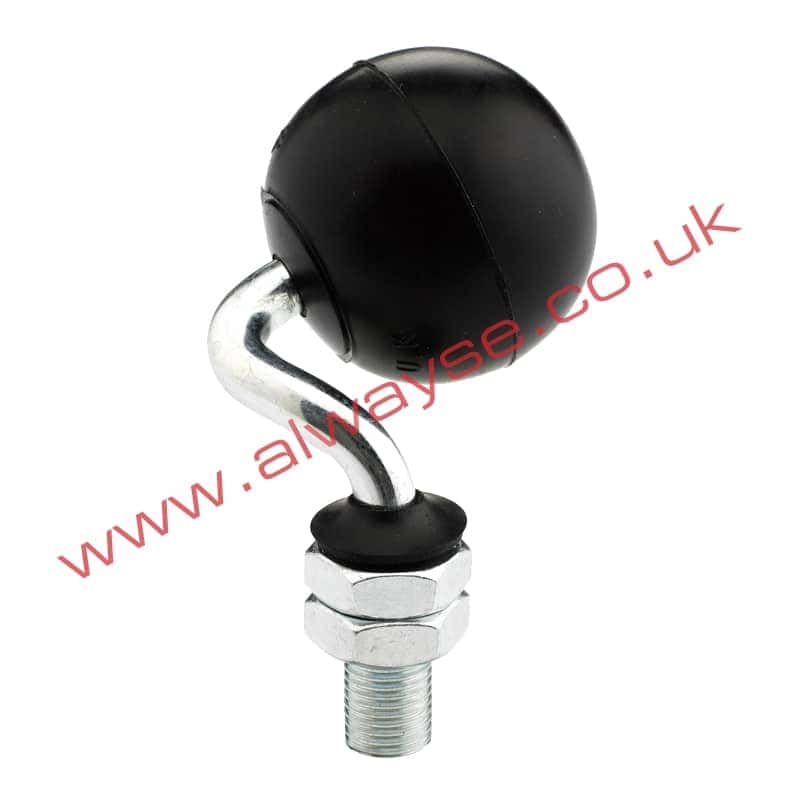

50mm RUBBER BALL, STEM, CIRCLIP, WASHER AND THREADED INSERT

CONTACT US

Interested in this product, get in touch...

Material Types

No two applications are the same hence Alwayse have developed a range of material types that can satisfy all applications from standard to custom requirements.

Find out more

Specifications

SPECIFICATION ACR50RH ACR50LH ACR50RHSS ACR50LHSS
Load Ball Diameter (mm) 50 50 50 50
Fixing Method Thread Thread Thread Thread
Max Load (Ball Up) (kg) 20 20 20 20
Max Load (Ball Down) (kg) N/a N/a N/a N/a
Load Ball Material Black Rubber (Float-On Only) Black Rubber (Float-On Only) Black Rubber (Float-On Only) Black Rubber (Float-On Only)
Support Ball Material N/a N/a N/a N/a
Unit Housing Finish Carbon Steel Carbon Steel Stainless Steel Stainless Steel

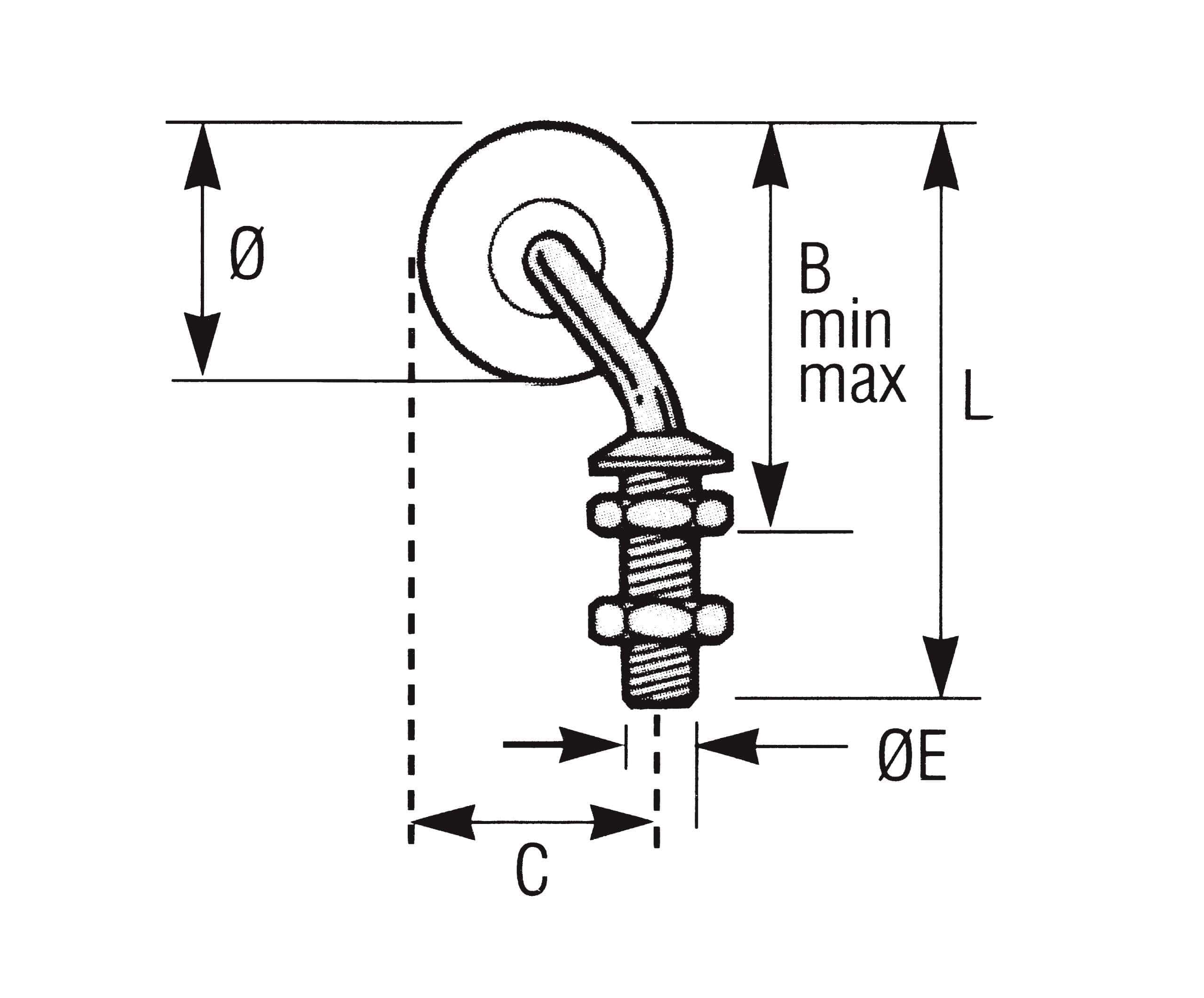

C (offset) 58 58 58 58
Support Dynamic Load N/a N/a N/a N/a
Load To Fully Depress N/a N/a N/a N/a
Flange Diameter (A) (mm) N/a N/a N/a N/a
Inside Diameter (B) (mm) N/a N/a N/a N/a
Clip Depth (C) (mm) N/a N/a N/a N/a
Material Thickness (D) (mm) N/a N/a N/a N/a
Product Weight (kg) 0.191 0.191 0.172 0.172
Dimension P - Thread Size N/a N/a N/a N/a
Dim. A - Max Diameter (mm) N/a N/a N/a N/a
Dim. B - Working ht. of Ball (mm) N/a N/a N/a N/a
Dim. D - Body Diameter (mm) N/a N/a N/a N/a
Dim. E - Under Flange to Base (mm) N/a N/a N/a N/a
Dim. F - Flange Thickness (mm) N/a N/a N/a N/a
Dim. F - Base Thickness (mm) N/a N/a N/a N/a
Dim. G - Fixing Holes PCD (mm) N/a N/a N/a N/a
Dim. H - Fixing Hole Size (mm) N/a N/a N/a N/a
Dim. J - Major Flange Size (mm) N/a N/a N/a N/a
Dim. K - Minor Flange Size (mm) N/a N/a N/a N/a
Dim. L - Overall Height (mm) 106 106 106 106
Dim. N - Length of Thread (mm) N/a N/a N/a N/a
Dim. O - Seating Hole (mm) N/a N/a N/a N/a
Dim. R - Radius Under Flange N/a N/a N/a N/a
Dim. X - Across Flats N/a N/a N/a N/a
