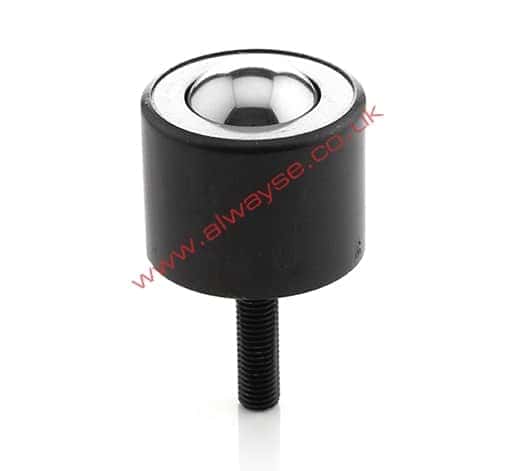

Alwayse Ball Transfer Unit 101923 Tuff Series

Bolt and drilled hole fixing Ball Transfer Units with solid machined body.

Feature integral seal and dirt exit hole.

Maximum tightening torques from 10Nm for M6 to 20Nm for M12.

CONTACT US

Interested in this product, get in touch...

Material Types

No two applications are the same hence Alwayse have developed a range of material types that can satisfy all applications from standard to custom requirements.

Find out more

LOAD CAPACITY

LOAD BALL UP
125

LOAD BALL DOWN
125

LOAD CAPACITY

LOAD BALL UP
125

LOAD BALL DOWN
125

Specifications

SPECIFICATION 101923 10192316
Load Ball Diameter (mm) 25.4 25.4
Fixing Method Thread Thread
Max Load (Ball Up) (kg) 125 125
Max Load (Ball Down) (kg) 125 125
Load Ball Material Carbon Chrome Stainless Steel
Support Ball Material Carbon Chrome Stainless Steel
Unit Housing Finish Chemical Black Chemical Black
C (offset) N/a N/a
Support Dynamic Load N/a N/a
Load To Fully Depress N/a N/a
Flange Diameter (A) (mm) N/a N/a
Inside Diameter (B) (mm) N/a N/a
Clip Depth (C) (mm) N/a N/a
Material Thickness (D) (mm) N/a N/a
Product Weight (kg) 0.19 0.19

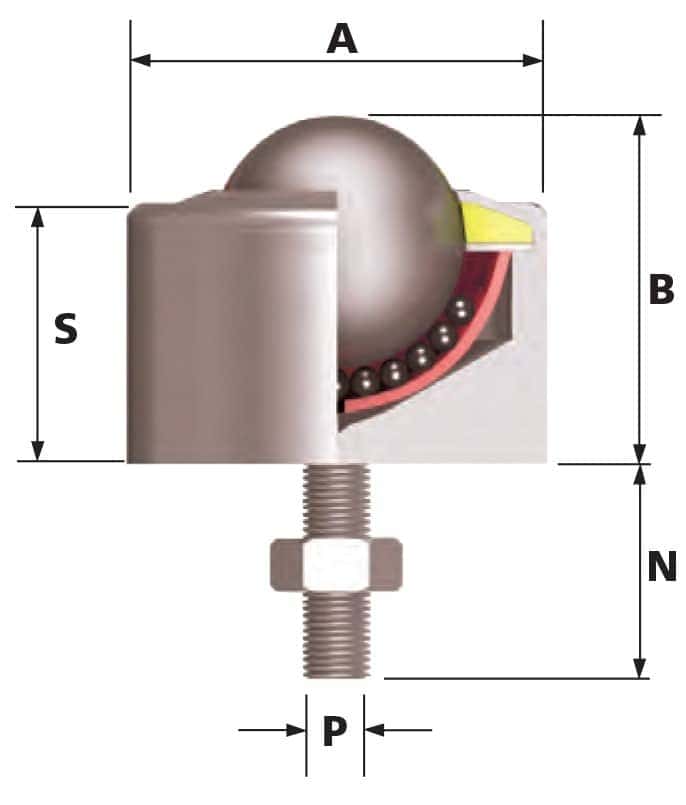

Dimension P - Thread Size M8 M8
Dim. A - Max Diameter (mm) 35 35
Dim. B - Working ht. of Ball (mm) 35 35
Dim. D - Body Diameter (mm) N/a N/a
Dim. E - Under Flange to Base (mm) N/a N/a
Dim. F - Flange Thickness (mm) N/a N/a
Dim. F - Base Thickness (mm) N/a N/a
Dim. G - Fixing Holes PCD (mm) N/a N/a
Dim. H - Fixing Hole Size (mm) N/a N/a
Dim. J - Major Flange Size (mm) N/a N/a
Dim. K - Minor Flange Size (mm) N/a N/a
Dim. L - Overall Height (mm) N/a N/a
Dim. N - Length of Thread (mm) 40 40
Dim. O - Seating Hole (mm) N/a N/a
Dim. R - Radius Under Flange N/a N/a
Dim. X - Across Flats N/a N/a
