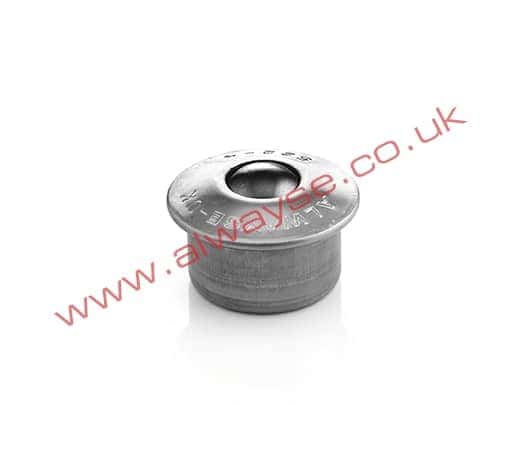

Alwayse Ball Transfer Unit 5224 Euro

Fully coned outer ring with low profile.

Variety of fixing clips available.

Dimensionally compatible with the Heavy Duty 800 Series units.

CONTACT US

Interested in this product, get in touch...

Material Types

No two applications are the same hence Alwayse have developed a range of material types that can satisfy all applications from standard to custom requirements.

Find out more

LOAD CAPACITY

LOAD BALL UP
160

LOAD BALL DOWN
Contact Technical

LOAD CAPACITY

LOAD BALL UP
20

LOAD BALL DOWN
Contact Technical

LOAD CAPACITY

LOAD BALL UP
100

LOAD BALL DOWN
Contact Technical

LOAD CAPACITY

LOAD BALL UP
160

LOAD BALL DOWN
Contact Technical

Specifications

SPECIFICATION 522413 522414 522415 522416
Load Ball Diameter (mm) 22.2 22.2 22.2 22.2
Fixing Method Hole Hole Hole Hole
Max Load (Ball Up) (kg) 160 20 100 160
Max Load (Ball Down) (kg) Contact Technical Contact Technical Contact Technical Contact Technical
Load Ball Material Carbon Chrome Nylon Stainless Steel Stainless Steel
Support Ball Material Carbon Chrome Carbon Chrome Stainless Steel Stainless Steel
Unit Housing Finish Carbon Steel Carbon Steel Stainless Steel Carbon Steel
C (offset) N/a N/a N/a N/a
Support Dynamic Load N/a N/a N/a N/a
Load To Fully Depress N/a N/a N/a N/a
Flange Diameter (A) (mm) N/a N/a N/a N/a
Inside Diameter (B) (mm) N/a N/a N/a N/a
Clip Depth (C) (mm) N/a N/a N/a N/a
Material Thickness (D) (mm) N/a N/a N/a N/a
Product Weight (kg) 0.132 0.096 0.132 0.132
Dimension P - Thread Size N/a N/a N/a N/a
Dim. A - Max Diameter (mm) 45 45 45 45
Dim. B - Working ht. of Ball (mm) 9.8 9.8 9.8 9.8
Dim. D - Body Diameter (mm) 36 +/- 0.2 36 +/- 0.2 36 +/- 0.2 36 +/- 0.2
Dim. E - Under Flange to Base (mm) N/a N/a N/a N/a
Dim. F - Flange Thickness (mm) 2.8 2.8 2.8 2.8
Dim. F - Base Thickness (mm) N/a N/a N/a N/a
Dim. G - Fixing Holes PCD (mm) N/a N/a N/a N/a
Dim. H - Fixing Hole Size (mm) N/a N/a N/a N/a
Dim. J - Major Flange Size (mm) N/a N/a N/a N/a
Dim. K - Minor Flange Size (mm) N/a N/a N/a N/a
Dim. L - Overall Height (mm) 30 30 30 30
Dim. N - Length of Thread (mm) N/a N/a N/a N/a
Dim. O - Seating Hole (mm) N/a N/a N/a N/a
Dim. R - Radius Under Flange N/a N/a N/a N/a
Dim. X - Across Flats N/a N/a N/a N/a
