Alwayse Ball Transfer Unit 5302 Euro

Features a 3 prong built-in clip to facilitate mounting in ball tables.

CONTACT US

Interested in this product, get in touch...

ENQUIRE NOW
🔍

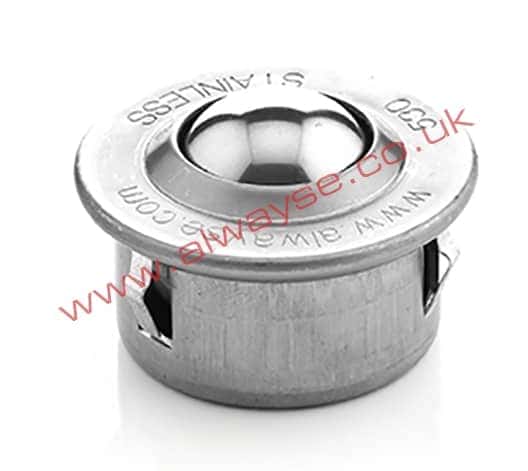

530-2-15 ball transfer unit

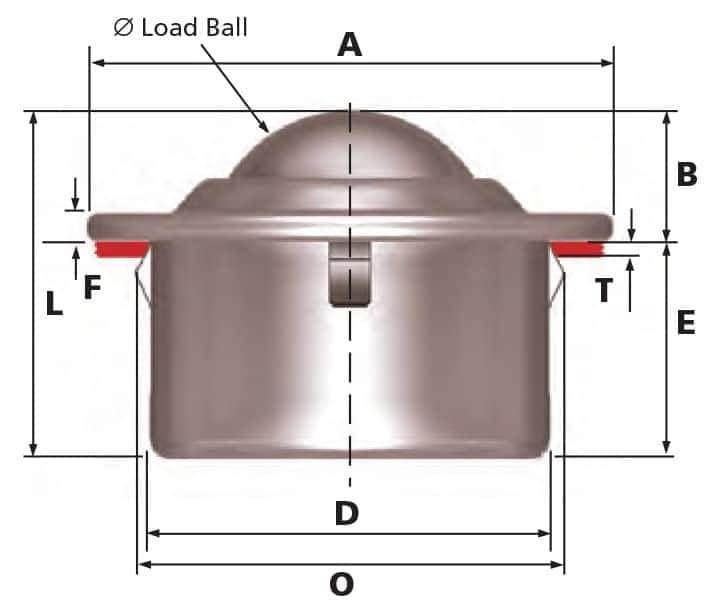

euro_2 side view diagram

Material Types

No two applications are the same hence Alwayse have developed a range of material types that can satisfy all applications from standard to custom requirements.

Find out more

LOAD CAPACITY

LOAD BALL UP
300

LOAD BALL DOWN
Contact Technical

ADD TO COMPARE
COMPARE

LOAD CAPACITY

LOAD BALL UP
25

LOAD BALL DOWN
Contact Technical

ADD TO COMPARE
COMPARE

LOAD CAPACITY

LOAD BALL UP
200

LOAD BALL DOWN
Contact Technical

ADD TO COMPARE
COMPARE

LOAD CAPACITY

LOAD BALL UP
300

LOAD BALL DOWN
Contact Technical

ADD TO COMPARE
COMPARE

Specifications

SPECIFICATION 530213 530214 530215 530216
Load Ball Diameter (mm) 30 30 30 30
Fixing Method Hole Hole Hole Hole
Max Load (Ball Up) (kg) 300 25 200 300
Max Load (Ball Down) (kg) Contact Technical Contact Technical Contact Technical Contact Technical
Load Ball Material Carbon Chrome Nylon Stainless Steel Stainless Steel
Support Ball Material Carbon Chrome Carbon Chrome Stainless Steel Stainless Steel
Unit Housing Finish Carbon Steel Carbon Steel Stainless Steel Carbon Steel
C (offset) N/a N/a N/a N/a
Support Dynamic Load N/a N/a N/a N/a
Load To Fully Depress N/a N/a N/a N/a
Flange Diameter (A) (mm) N/a N/a N/a N/a
Inside Diameter (B) (mm) N/a N/a N/a N/a
Clip Depth (C) (mm) N/a N/a N/a N/a
Material Thickness (D) (mm) N/a N/a N/a N/a
Product Weight (kg) 0.278 0.182 0.278 0.278
Dimension P - Thread Size N/a N/a N/a N/a
Dim. A - Max Diameter (mm) 55 55 55 55
Dim. B - Working ht. of Ball (mm) 13.8 13.8 13.8 13.8
Dim. D - Body Diameter (mm) 45 +/- 0.2 45 +/- 0.2 45 +/- 0.2 45 +/- 0.2
Dim. E - Under Flange to Base (mm) 23.2 23.2 23.2 23.2
Dim. F - Flange Thickness (mm) 4 4 4 4
Dim. F - Base Thickness (mm) N/a N/a N/a N/a
Dim. G - Fixing Holes PCD (mm) N/a N/a N/a N/a
Dim. H - Fixing Hole Size (mm) N/a N/a N/a N/a
Dim. J - Major Flange Size (mm) N/a N/a N/a N/a
Dim. K - Minor Flange Size (mm) N/a N/a N/a N/a
Dim. L - Overall Height (mm) 37 37 37 37
Dim. N - Length of Thread (mm) N/a N/a N/a N/a
Dim. O - Seating Hole (mm) N/a N/a N/a N/a
Dim. R - Radius Under Flange N/a N/a N/a N/a
Dim. X - Across Flats N/a N/a N/a N/a
🔍
euro_2 side view diagram
