Alwayse Ball Transfer Unit HI-TECH 60251

High load capacity unit.

Maximum tightening torque is 15Nm.

CONTACT US

Interested in this product, get in touch...

ENQUIRE NOW
🔍
6025-1-15 ball transfer unit with external thread

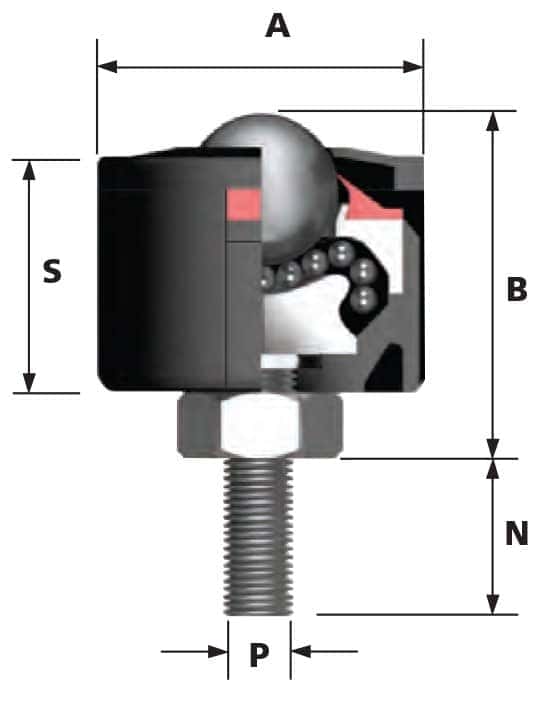

6025-1 side view diagram

Material Types

No two applications are the same hence Alwayse have developed a range of material types that can satisfy all applications from standard to custom requirements.

Find out more

LOAD CAPACITY

LOAD BALL UP
320

LOAD BALL DOWN
n/a

ADD TO COMPARE
COMPARE

LOAD CAPACITY

LOAD BALL UP
240

LOAD BALL DOWN
n/a

ADD TO COMPARE
COMPARE

Specifications

SPECIFICATION 602511525 602511550 602511325 602511350
Load Ball Diameter (mm) 25.4 25.4 25.4 25.4
Fixing Method Thread Thread Thread Thread
Max Load (Ball Up) (kg) 240 240 320 320
Max Load (Ball Down) (kg) N/a N/a N/a N/a
Load Ball Material Stainless Steel Stainless Steel Carbon Chrome Carbon Chrome
Support Ball Material Stainless Steel Stainless Steel Carbon Chrome Carbon Chrome
Unit Housing Finish Nylon Nylon Nylon Nylon
C (offset) N/a N/a N/a N/a
Support Dynamic Load N/a N/a N/a N/a
Load To Fully Depress N/a N/a N/a N/a
Flange Diameter (A) (mm) N/a N/a N/a N/a
Inside Diameter (B) (mm) N/a N/a N/a N/a
Clip Depth (C) (mm) N/a N/a N/a N/a
Material Thickness (D) (mm) N/a N/a N/a N/a
Product Weight (kg) 0.274 0.274 0.274 0.274
Dimension P - Thread Size M10 M10 M10 M10
Dim. A - Max Diameter (mm) 50.8 50.8 50.8 50.8
Dim. B - Working ht. of Ball (mm) 53 53 53 53
Dim. D - Body Diameter (mm) N/a N/a N/a N/a
Dim. E - Under Flange to Base (mm) N/a N/a N/a N/a
Dim. F - Flange Thickness (mm) N/a N/a N/a N/a
Dim. F - Base Thickness (mm) N/a N/a N/a N/a
Dim. G - Fixing Holes PCD (mm) N/a N/a N/a N/a
Dim. H - Fixing Hole Size (mm) N/a N/a N/a N/a
Dim. J - Major Flange Size (mm) N/a N/a N/a N/a
Dim. K - Minor Flange Size (mm) N/a N/a N/a N/a
Dim. L - Overall Height (mm) N/a N/a N/a N/a
Dim. N - Length of Thread (mm) 17.6 42.6 17.6 42.6
Dim. O - Seating Hole (mm) N/a N/a N/a N/a
Dim. R - Radius Under Flange N/a N/a N/a N/a
Dim. X - Across Flats N/a N/a N/a N/a
🔍

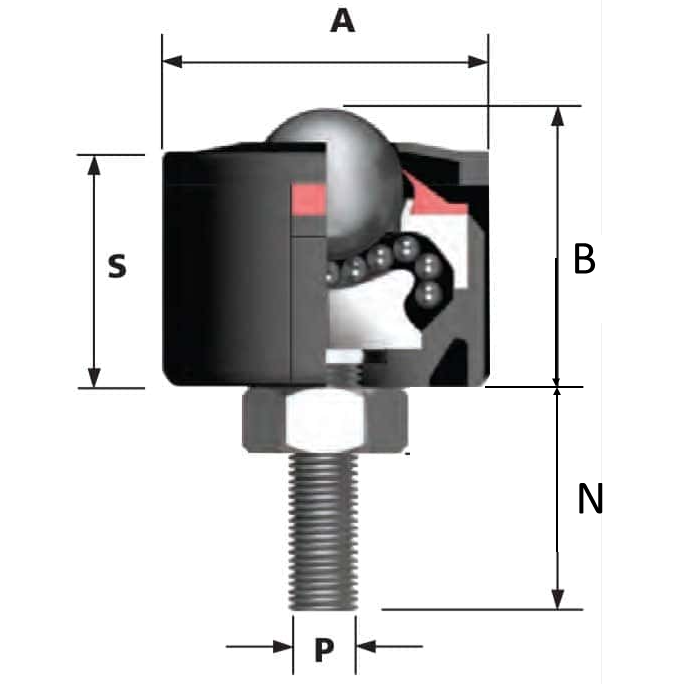

6025-1 side view diagram
