Alwayse Ball Transfer Unit Small Top Flange

Low profile small top flange fixing unit.

Integral plastic scraper seal to prevent debris ingress.

CONTACT US

Interested in this product, get in touch...

ENQUIRE NOW
🔍
1509-13 ball transfer unit with a small top flange
spring loaded ball transfer unit with small top flange

Material Types

No two applications are the same hence Alwayse have developed a range of material types that can satisfy all applications from standard to custom requirements.

Find out more

LOAD CAPACITY

LOAD BALL UP
n/a

LOAD BALL DOWN
n/a

ADD TO COMPARE
COMPARE

LOAD CAPACITY

LOAD BALL UP
n/a

LOAD BALL DOWN
n/a

ADD TO COMPARE
COMPARE

Specifications

SPECIFICATION 15091300 15091600
Load Ball Diameter (mm) 25.4 25.4
Fixing Method Flange Flange
Max Load (Ball Up) (kg) N/a N/a
Max Load (Ball Down) (kg) N/a N/a
Load Ball Material Carbon Chrome Stainless Steel
Support Ball Material Carbon Chrome Stainless Steel
Unit Housing Finish Carbon Steel Carbon Steel
C (offset) N/a N/a
Support Dynamic Load 50 50
Load To Fully Depress 130 130
Flange Diameter (A) (mm) N/a N/a
Inside Diameter (B) (mm) N/a N/a
Clip Depth (C) (mm) N/a N/a
Material Thickness (D) (mm) N/a N/a
Product Weight (kg) 0.39 0.39
Dimension P - Thread Size N/a N/a
Dim. A - Max Diameter (mm) 56 56
Dim. B - Working ht. of Ball (mm) 15.3 15.3
Dim. D - Body Diameter (mm) 44.5 44.5
Dim. E - Under Flange to Base (mm) N/a N/a
Dim. F - Flange Thickness (mm) 2 2
Dim. F - Base Thickness (mm) N/a N/a
Dim. G - Fixing Holes PCD (mm) N/a N/a
Dim. H - Fixing Hole Size (mm) N/a N/a
Dim. J - Major Flange Size (mm) N/a N/a
Dim. K - Minor Flange Size (mm) N/a N/a
Dim. L - Overall Height (mm) 72.2 72.2
Dim. N - Length of Thread (mm) N/a N/a
Dim. O - Seating Hole (mm) N/a N/a
Dim. R - Radius Under Flange N/a N/a
Dim. X - Across Flats N/a N/a
🔍

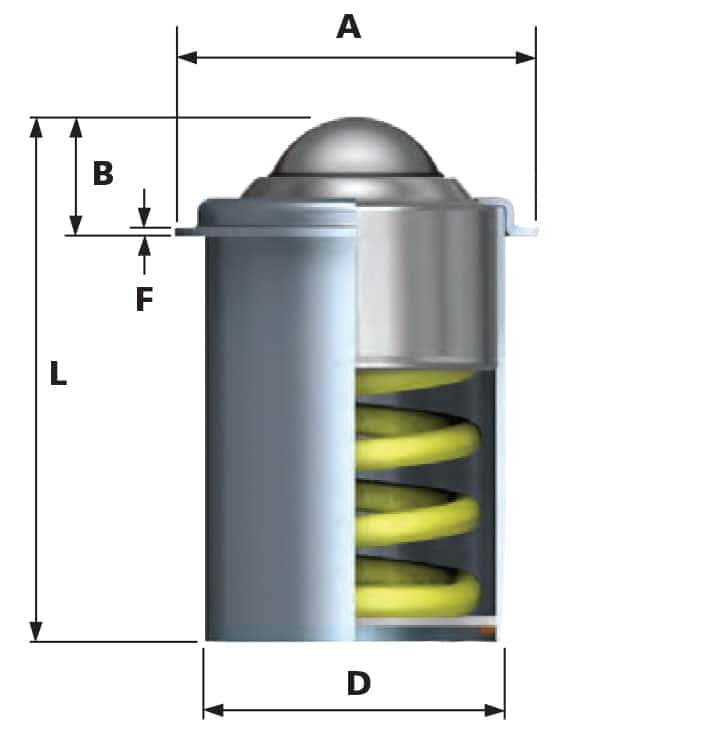

spring loaded ball transfer unit with small top flange
