Alwayse Ball Transfer Unit Thread Fixing Units 2001

Features adjustable height designed for a drilled hole fixing.

Available in various thread lengths

CONTACT US

Interested in this product, get in touch...

Material Types

No two applications are the same hence Alwayse have developed a range of material types that can satisfy all applications from standard to custom requirements.

Find out more

LOAD CAPACITY

LOAD BALL UP
140

LOAD BALL DOWN
60

LOAD CAPACITY

LOAD BALL UP
140

LOAD BALL DOWN
60

LOAD CAPACITY

LOAD BALL UP
140

LOAD BALL DOWN
60

Specifications

SPECIFICATION 20011325 20011350 20011550 20011650
Load Ball Diameter (mm) 39.7 39.7 39.7 39.7
Fixing Method Thread Thread Thread Thread
Max Load (Ball Up) (kg) 140 140 140 140
Max Load (Ball Down) (kg) 60 60 60 60
Load Ball Material Carbon Chrome Carbon Chrome Stainless Steel Stainless Steel
Support Ball Material Carbon Chrome Carbon Chrome Stainless Steel Stainless Steel
Unit Housing Finish Carbon Steel Carbon Steel Stainless Steel Carbon Steel
C (offset) N/a N/a N/a N/a
Support Dynamic Load N/a N/a N/a N/a
Load To Fully Depress N/a N/a N/a N/a
Flange Diameter (A) (mm) N/a N/a N/a N/a
Inside Diameter (B) (mm) N/a N/a N/a N/a
Clip Depth (C) (mm) N/a N/a N/a N/a
Material Thickness (D) (mm) N/a N/a N/a N/a
Product Weight (kg) 0.4 0.4 0.4 0.4

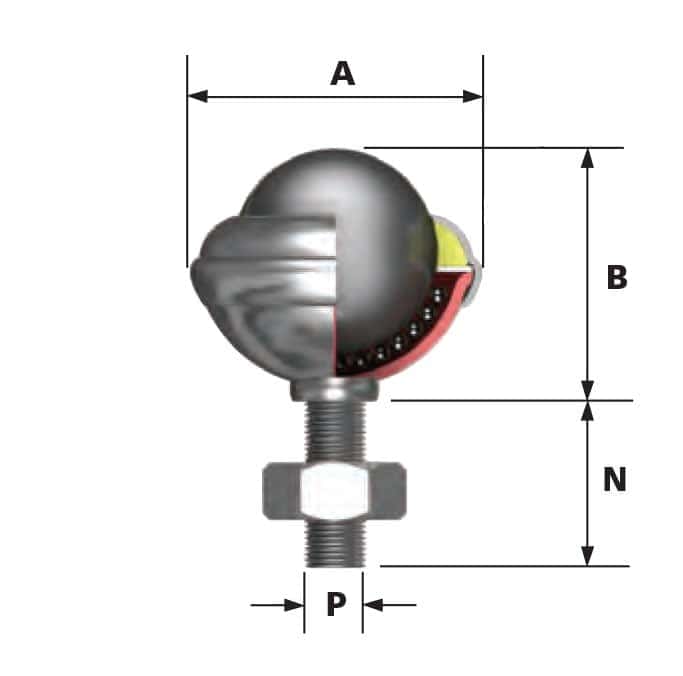

Dimension P - Thread Size M10 M10 M10 M10
Dim. A - Max Diameter (mm) 55.5 55.5 55.5 55.5
Dim. B - Working ht. of Ball (mm) 47.62 47.62 47.62 47.62
Dim. D - Body Diameter (mm) N/a N/a N/a N/a
Dim. E - Under Flange to Base (mm) N/a N/a N/a N/a
Dim. F - Flange Thickness (mm) N/a N/a N/a N/a
Dim. F - Base Thickness (mm) N/a N/a N/a N/a
Dim. G - Fixing Holes PCD (mm) N/a N/a N/a N/a
Dim. H - Fixing Hole Size (mm) N/a N/a N/a N/a
Dim. J - Major Flange Size (mm) N/a N/a N/a N/a
Dim. K - Minor Flange Size (mm) N/a N/a N/a N/a
Dim. L - Overall Height (mm) N/a N/a N/a N/a
Dim. N - Length of Thread (mm) 25 50 50 50
Dim. O - Seating Hole (mm) N/a N/a N/a N/a
Dim. R - Radius Under Flange N/a N/a N/a N/a
Dim. X - Across Flats N/a N/a N/a N/a
